Location of Controls

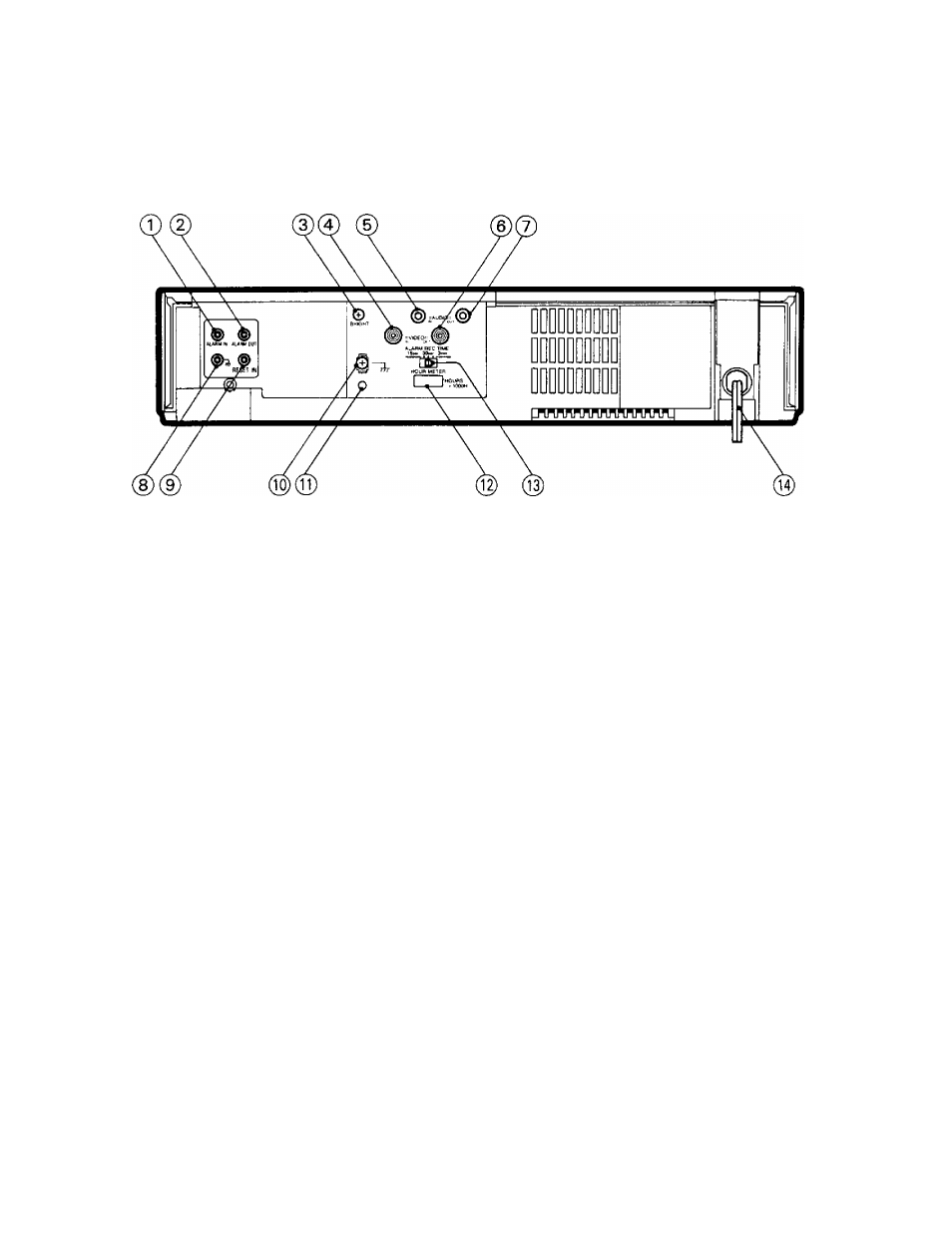

[Rear Panel]
@
®
@
ALARM IN terminal
An alarm to ground at this terminal begins the alarm mode
recording sequence.
ALARM OUT terminal
This terminal outputs alarm signals.
BRIGHT control
The on-screen display brightness may be set by rotating
the BRIGHT control.
VIDEO IN jack
This BNC jack is a terminated video input.
AUDIO IN jack
This RCA jack is an audio line input.
VIDEO OUT jack
This BNC jack is a video output used to drive a monitor,
switcher, or other equipment.
AUDIO OUT jack
This RCA jack is an audio line output used to drive other
audio equipment.
GROUND terminal
This is the ground terminal for the alarm input.
(9) RESET IN terminal
Ground at this terminal will cancel an existing alarm
recording sequence.
GROUND terminal
This terminal is used to connect other equipment.
@ ALL CLEAR button
• Pressing this button will clear the entire time/date, and
timer program memory. The power will be turned off at
the same time. Pressing the POW£/i button will restore
power.
• Press this button if the VCR malfunctions.
@ 10000 HOUR meter
The 10000 HOUR meter displays the total number of hours
this VCR has been in service.
@ ALARM REC TIME switch
The ALARM REC TIME switch is used to set the alarm
recording time to 1 5 seconds, 30 seconds, or 3 minutes.
(U) POWER CORD
