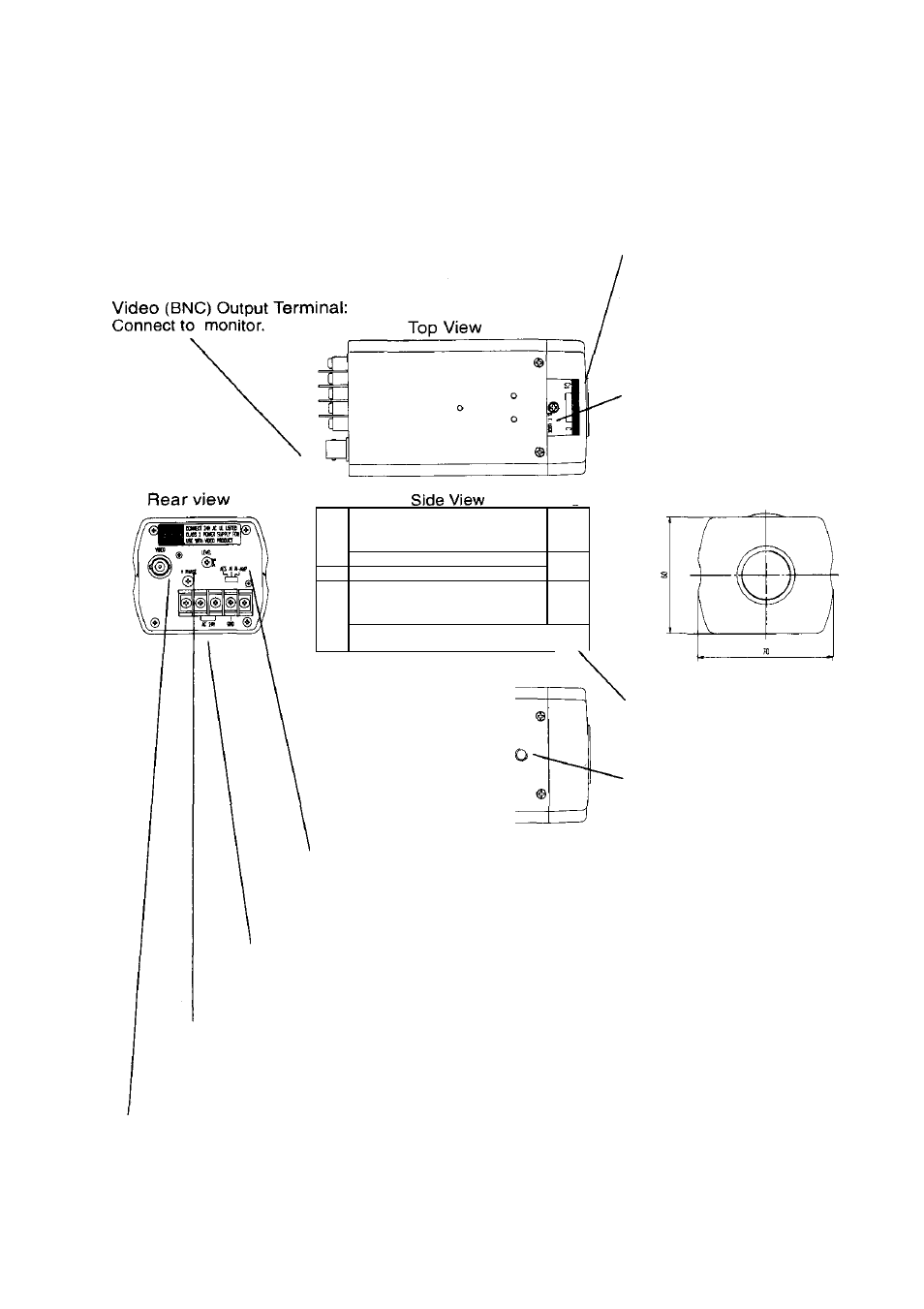

1. CAMERA PARTS AND FUNCTIONS
F
TOSHIM CCD COLOP owcra CCO
'
irrai
[
\ .
1243B \
Bottom View
Focus Adjustment Dial:
Rotate this dial to appropriate
setting. Rotate towards "CS" side
when using a CS mount lens.
Rotate towards “C" side when '■
using a C mount lens. This Focus
Adjustment Dial can also be used
for back-focus adjusment.
Back Focus Set Screw:
This adjustment is for tightening
or loosening the Focus
Adjustment Dial. Before using
Focus Adjusment Dial, this set
screw should be loosened. After
using the Focus Adjustment Dial,
this screw should be tightened.
Front View
Auto-IRIS Terminal:
When using an auto-iris it needs
to be connected to this terminal.
Camera Mount-This 1/4 X 20
threaded hole if for use when
mounting the camera.
Lens Control Switch:
AES: (Auto-Electronic Shutter) Set for Manual Iris Lenses
Al: Set for Video-type Auto-Iris Lenses
AI-AMP: Set for Direct or DC-Type Auto-Iris Lenses
AC power supply terminal:
Connect to 24V AC UL listed class 2
power supply
Level Adjustment:
When using a Direct or DC-Type
Auto-Iris Lens, use this adjustment to
attain an appropriate video level.
V. Phase Adjusment:
Used when multiple cameras within a system
are out of phase. Refer to section two and
seven of the manual for more information.
