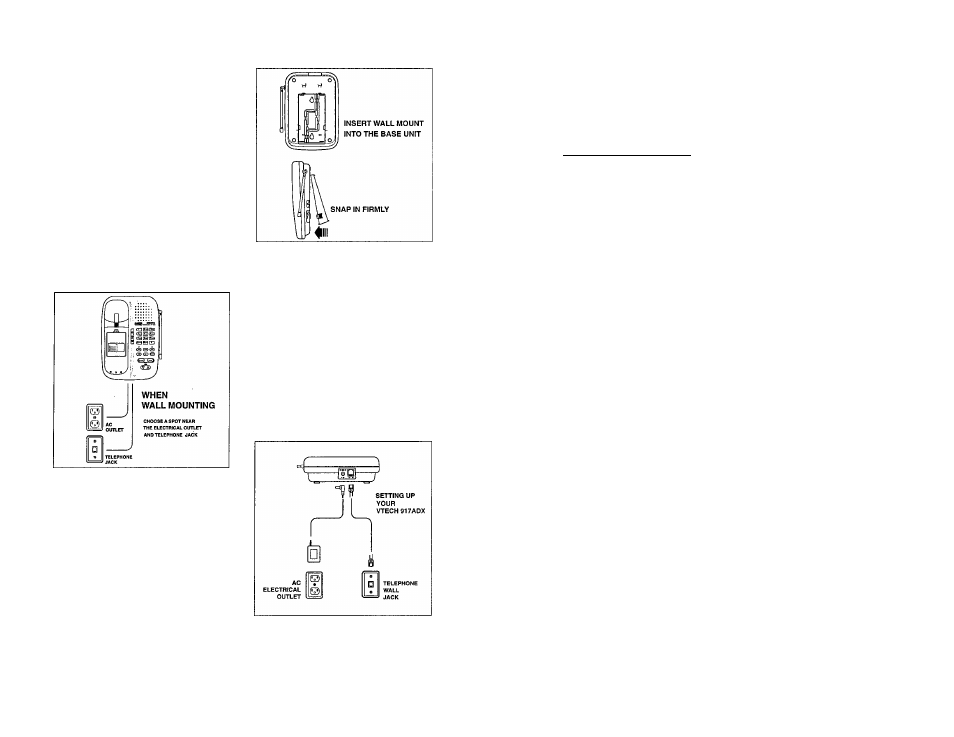

W A L L M O U N T I N G
The Wall Mount adaptor is designed
to fit on standard Wall Mount plates.
C h o o s e a s p o t n e a r a n
e l e c t r i c a l
o u t l e t a n d a
telephone jack.Your phone
requires a moduiar teiephone jack
and a s t a n d a r d e i e c t r i c a l
outiet(120v AC). The power cord
is six feet long; make sure there
is an electricai outlet within reach
of the base. The outlet should not
be controlled by a wall switch. If
the switch is ever turned off, the
phone will not operate.
Position the waii mount adaptor
on the base. Line up the tabs on
the wall mount adaptor with the
holes on the bottom of the base.
Snap the wall mount adaptor
firmly in place.
Mount the base on the wall.
Position the base so the mounting
studs will fit into the holes on the
bottom of the base.Position the
power cord to extend down the
wall the phone is to be mounted
on. Slide the base down on the
mounting studs until it locks into
place.
Connect the telephone cord.
The telephone line cord has a
snap-in plug at each end. Insert
one of the plugs into the jack on
the bottom of the base. Insert
the other end of the plug into the
wall jack.
Plug the AC adaptor into an
electrical outlet, and the DC
connector on the back of the
Base Unit.
W A L L M O U N T I N G
IMPORTANT;
When wall mouting your 917ADX,
you must reverse the handset
hook, located in the charging
cradle.
Otherwise your handset may fall
from the Base Unit when cradled.
