7. CONNECTING THE INTERFACE CABLE AND REMOTE CABLES
7. CONNECTING THE INTERFACE CABLE AND REMOTE CABLES
EM 1-31061A
7. CONNECTING THE INTERFACE CABLE AND
REMOTE CABLES
WARNING: Disconnect the power cord before
connecting the cables.

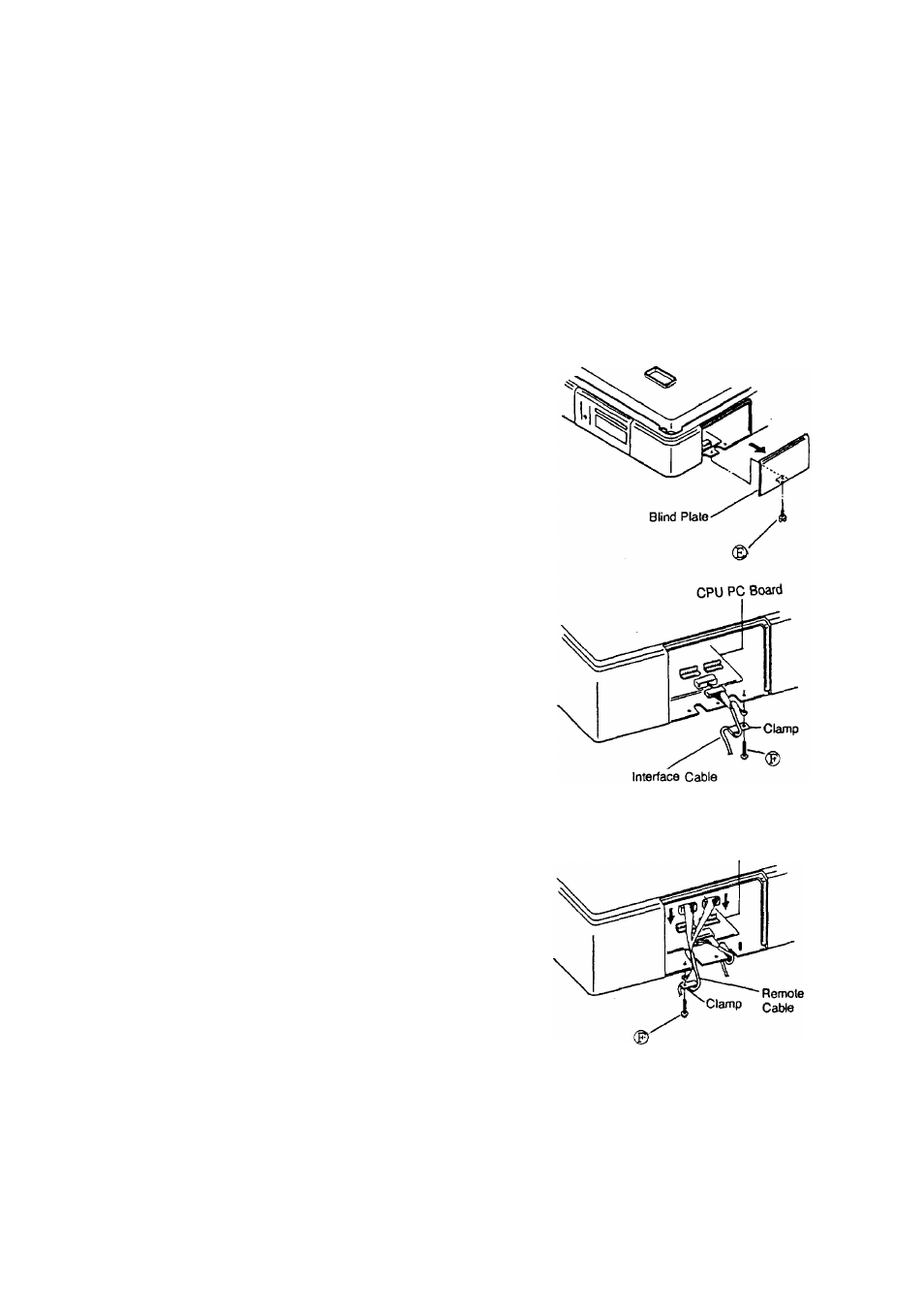

1. Remove the blind plate (right side).
NOTE: Be careful NOT TO LOSE the screw
(D
(M -4 X 1 0 ).
2. Connect the interface cable cable to the connector
on the CPU board.
3. Rx the interface cable cable to the base using the
clamp and screw © (FL-4x 14).
4. For remote display type, connect the remote cable
to the connectors on the CPU board.
5. Fix the remote cable to the base using the clamp
and screw ©.
6. Attach the blind plate using screw ©.
CPU PC Board
7- 1
