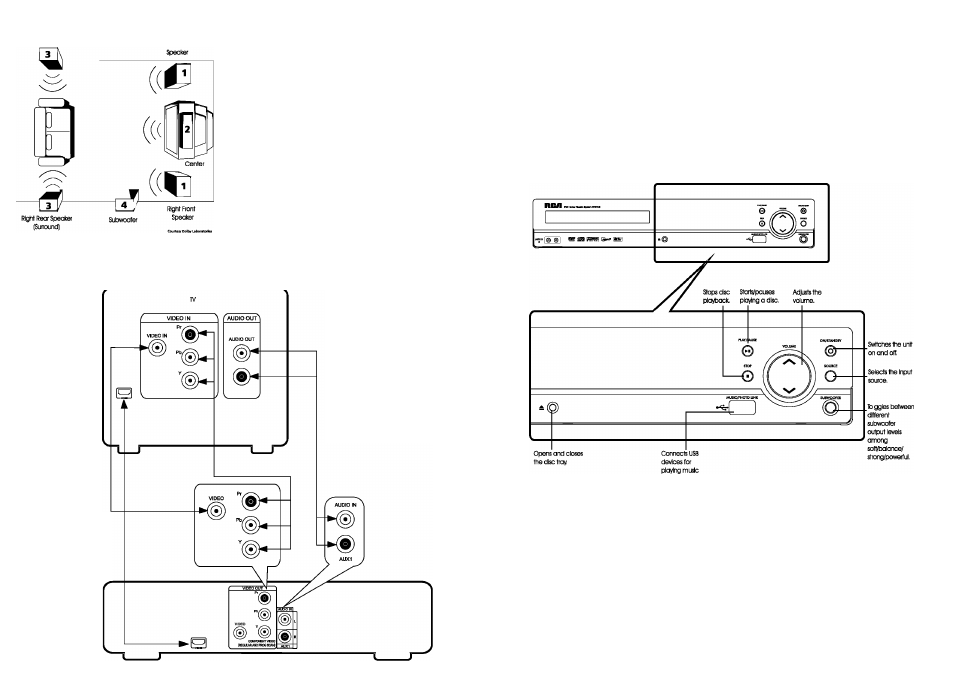

2.Positioning the speakers
Left Rear Specter
(Surround] Left Front
1. Center; In surround mode, the center speater carries most of the dialog as well
as music and effects. It should be set between the left and right specters.
2. Front Speakers: Front speakers carry primarily music and sound effects.
3. Rear Speakers; The rear specters' overall sound balance should be as close as
possible to the front speakers. Proper placement is vital to establish an evenly
distributed sound field.
4. Subwoofer: A subwoofer Is designed to reproduce powerful low bass effects
(explosions, the rumble of spaceships, etc.) which dramatically heighten the
action on the screen.
The jocks on the back of the unit shown on the left are used to connect to other components.
Connect the video OUT jacks to the IN jacks on your TV or monitor so the video content goes from the receiver to the screen.
Connect the audio IN jacks to the OLff jocks on the component you wish to connect, so the sound from the component comes Into the unit and out through the
To connect to other components, you need the following video and audio cables;
• Composite video cable (Included)
• Component video cable (not included)
• Audio cables (color-coded In red and white] (not Included]
See page 6 of User Manual for details.
Note;
This unit defaults to Progressive Scan (P^CAN) off.
See page 27 on the User Manual to learn how to turn P-SCAN on.
If your TV or monitor does not support P-SCAN, you may get a picture with incorrect color or no cotoi
General controls
Front panel controls
S.Connecting to Other Components
Method 1: (Video)
Video OUT to Video
IN on the TV or monitor,
Use onlyone of the
video connections
(Pr,Pb,Y,or composite
video),not both.
Method 1: (Audio)
AUDtOtNtoAUDtO
OUT on SAT, VCR
or other componet
Method 2
HDMIOUTtoHDMIlN
on the TV monitor for
better audio video
connection instead
of method 1.
