EOl-11003
Rg. 1
R g . 2
Ink Roll Holder Frame
R g - 3
R g . 4
R g . 5

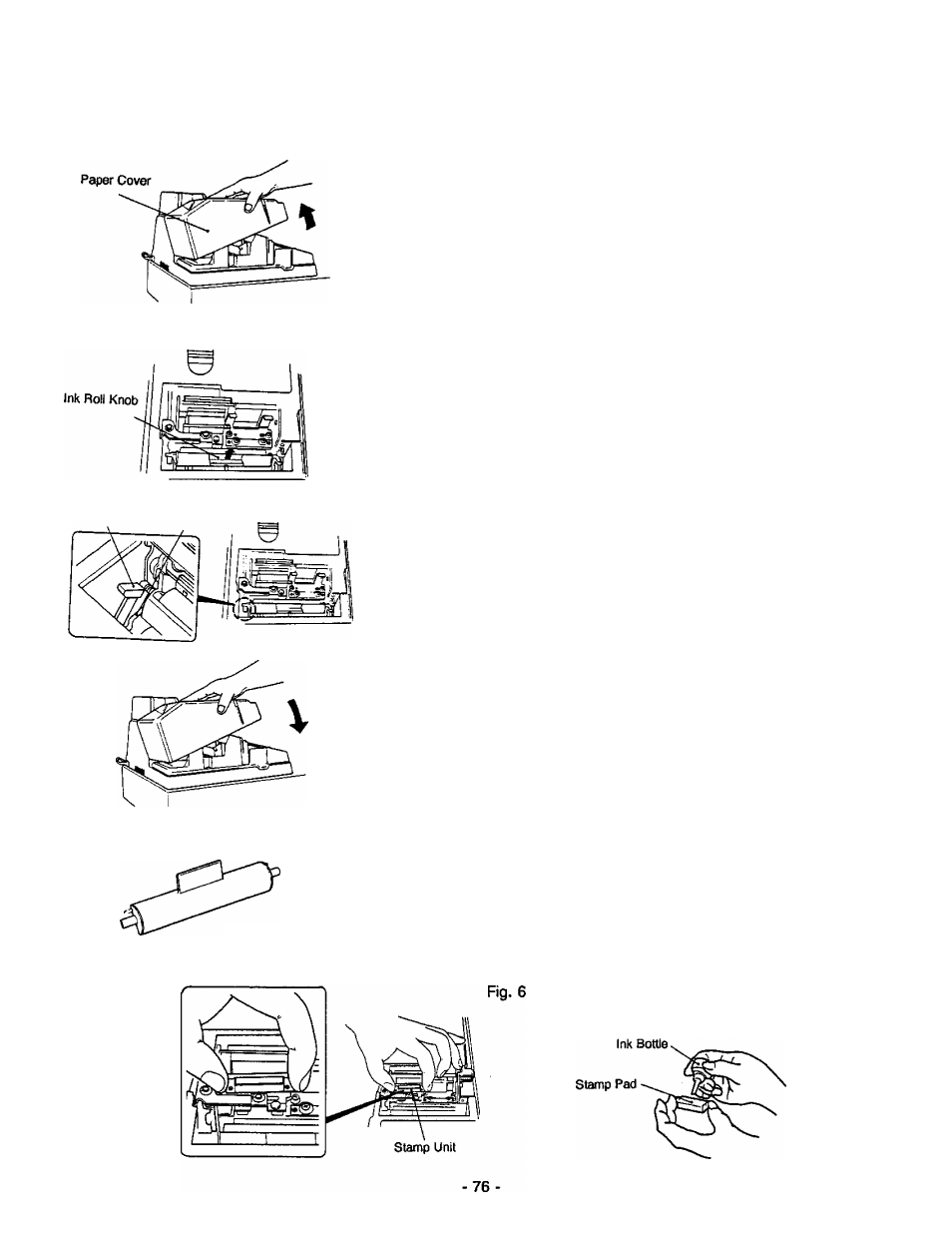

REPLACING THE INK ROLL
When the receipt and journal print becomes too light
to read, replace the Ink Roll in the following manner.
1. Turn the Mode Lock to the "OFF" position.
2. Remove the Paper Cover. (Rg. 1)
3. Hold the Ink Roll Knob and pull it upward. The
Ink Roll will be removed. (Rg. 2)
4. Insert a new Ink Roll into the space between the
Ink Roll Holder and the Frame. (Fig. 3)
5. When replacement is completed, attach the
Paper Cover (Fig. 4) and turn the Mode Lock to
the “REG" position.
* The Ink Roll is a comsumable product and a
genuine part supplied by TEC. Ask your TEC
representative for an additional order. (Rg. 5)
REPLENISHING INK TO THE STORE MESSAGE
STAMP
When the store message is printed too lightly,
replenish ink in the following manner.
Turn the Mode Lock to the “OFF” position.
Open the Paper Cover. (Fig. 1)
Hold the both sides of the stamp unit with your
fingers and remove it by pulling it upward. (Fig.
6 )
Apply ink to the replenishment pad at the back of
the stamp unit. The amount of refilling should
be adjusted according to the density of the
printed
message. (The supplied ink bottle
contains 5cc of ink.) (Fig. 7)
When replenishing of ink is completed, attach the
Paper Cover (Fig. 4) and turn the Mode Lock to
the “REG" position.
Ink Roll
Fig. 7
