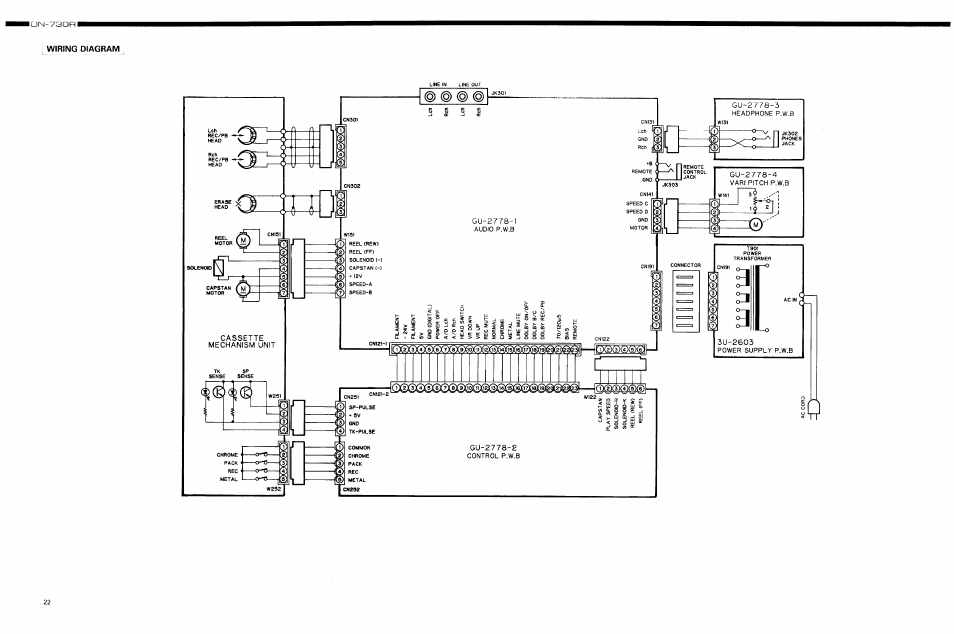

Wiring diagram, Gu-2778-3 headphone p.w.b, Gu-2778-1 audio p.w.b – Denon DN-730R User Manual

Page 22: Control p.w.b, Power supply p.w.b, W122

Wiring diagram, Gu-2778-3 headphone p.w.b, Gu-2778-1 audio p.w.b | Control p.w.b, Power supply p.w.b, W122 | Denon DN-730R User Manual | Page 22 / 25 Wiring diagram, Gu-2778-3 headphone p.w.b, Gu-2778-1 audio p.w.b | Control p.w.b, Power supply p.w.b, W122 | Denon DN-730R User Manual | Page 22 / 25
