NOTE: The crystals Installed in channel "1" position are also of plug-in type and may
be replaced with those of any other channels.
Make sure the transmit and receive crystals are installed in their correct
socket. If the crystals are reversed, the unit will transmit on one frequency
and recieve on another, both of which will be outside the citizens band,
resulting in illegal operation.
4. Replace the rear cover.

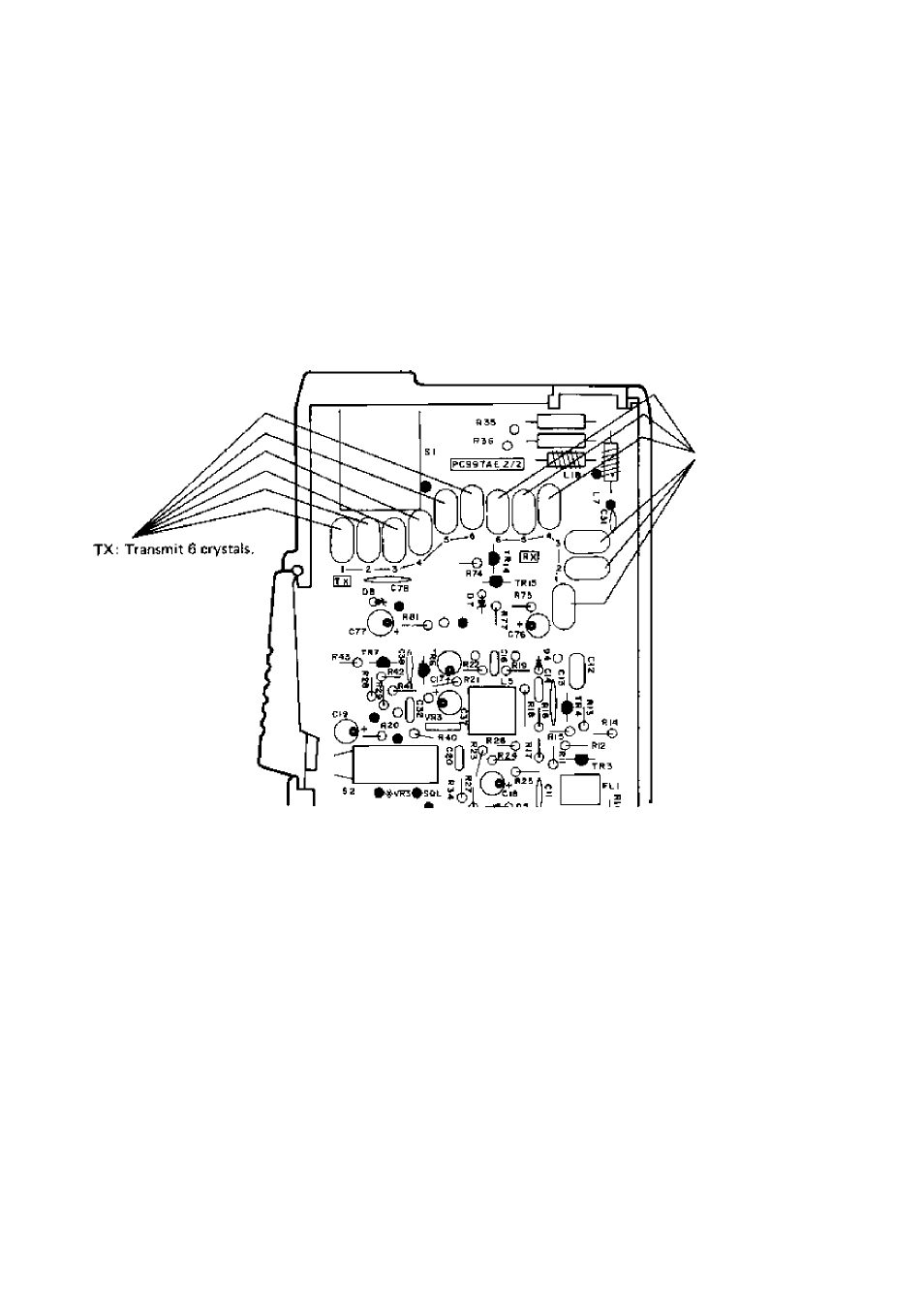

CRYSTAL SOCKET LOCATION
RXi Receive 6 crystals.
SERVICING YOUR TRANSCEIVER
The technical information, diagrams and charts will be supplied upon request for the
use of a qualified holder of a first or second class radiotelephone license in servicing
this transceiver. It is the user's responsibility to see that this radio is operating at all
times in accordance with the F.C.C, Citizens Radio Service regulations.
If you install your own transceiver, do not attempt to make any transmitter tuning
adjustments as they are prohibited by the F.C.C. unless you hold or are in the presence
and under the supervision of a first or second class radiotelephone licensed person. A
Citizens Band or Amateur license is not surfficient.
Please refer to the WARNING information contained in the 1st page of your owner's
Guide.
(NOTE: When ordering parts, it is essential to specify the correct model number and
serial number of the unit.)
