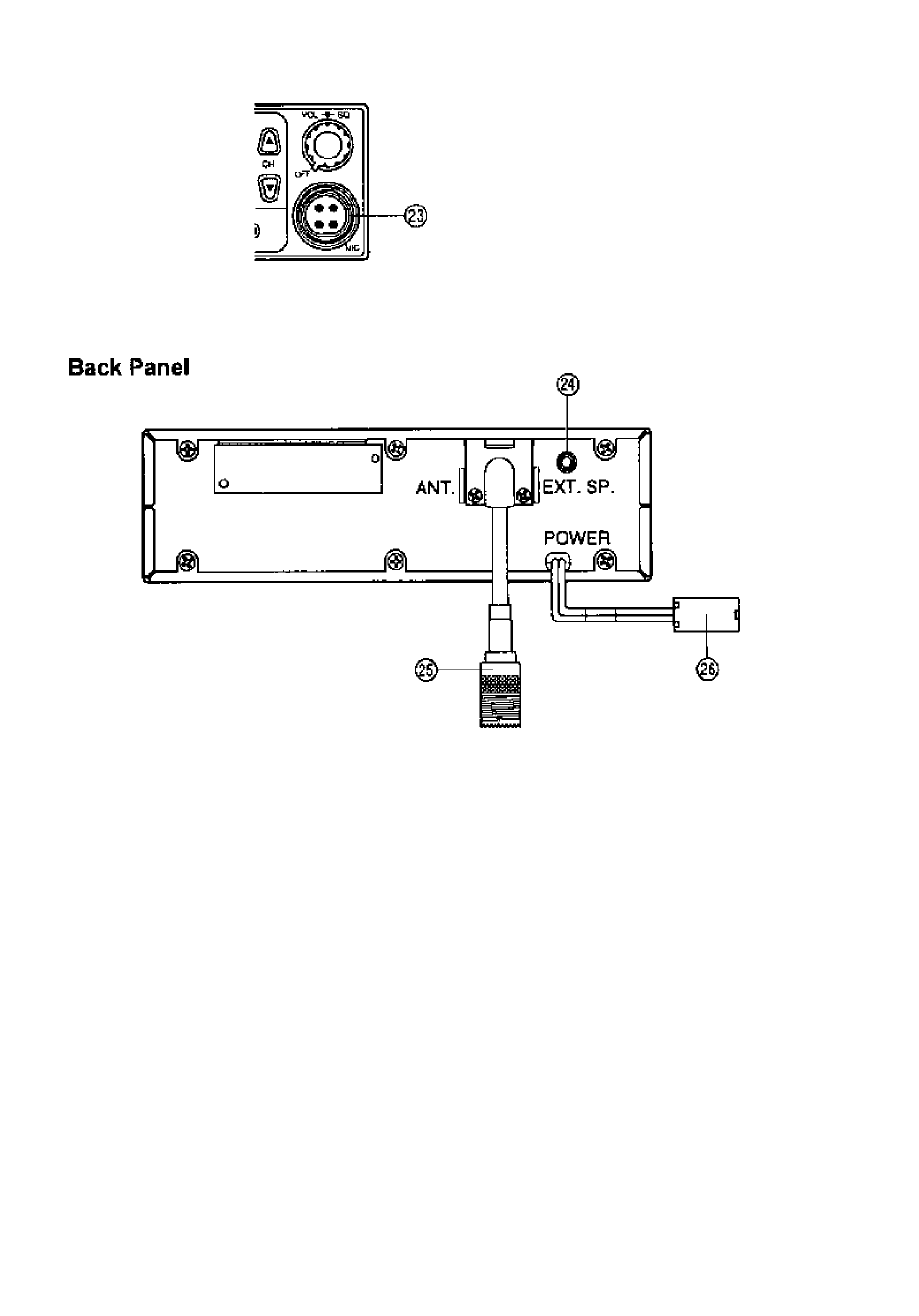

Connectors
Front Panel
23. MICROPHONE SOCKET
The microphone plug is inserted into this socket,
24. EXTERNAL SPEAKER JACK - Used for remote receiver monitoring. When the
external speaker is connected, the internal speaker is automatically disconnected.
The connecting wire must use a 3,5mm miniature plug only.
25. ANTENNA CONNECTOR - Connect the Antenna here using a PL259 type
connector.
26. DC POWER CORD - DC power is connected to the transceiver through this jack. A
power cord is supplied with the transceiver.
