CS-855 RKE POWER DOOR LOCK WIRING
3 PIN (WHITE): DOOR LOCK OUTPUT PLUG
GREEN: (-) Negative LOCK pulse / (+) Positive UNLOCK pulse
RED: +12V Coil Power for external relays (Term. 86).
BLUE: (-) Negative UNLOCK pulse / (+) Positive LOCK pulse

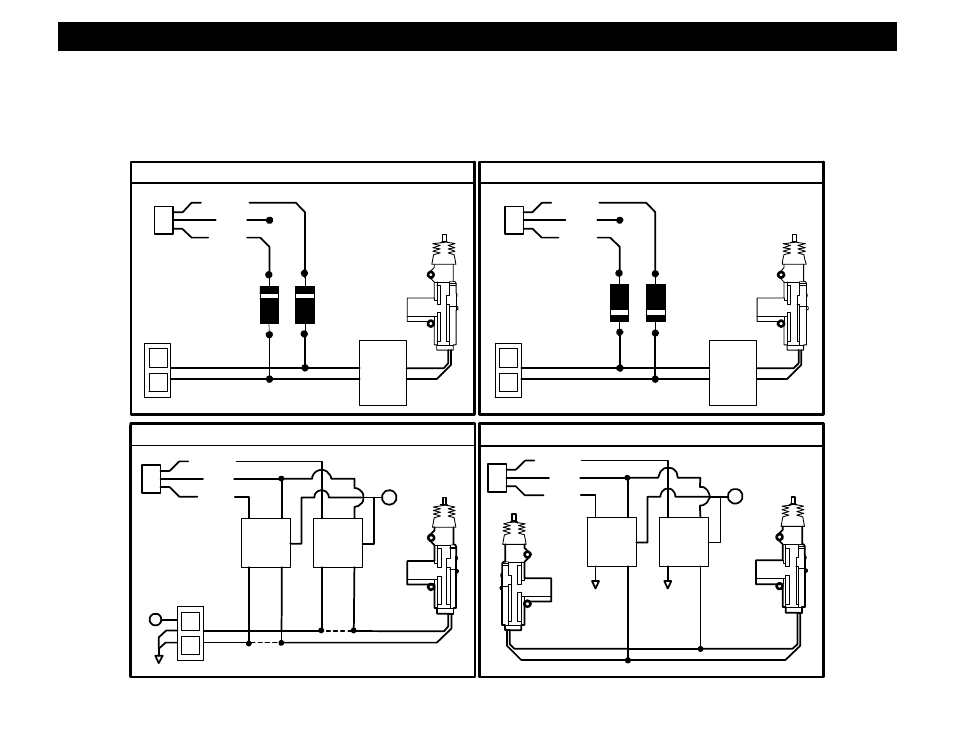

CS-855 RKE NEGATIVE TRIGGER DOORLOCK WIRING CS-855 RKE POSITIVE TRIGGER DOORLOCK WIRING
GREEN GREEN
RED RED
BLUE BLUE
DIODES *
FACTORY FACTORY L L LOCK LOCK
POWER POWER
LOCKING LOCKING
UL UL
RELAYS RELAYS
UNLOCK UNLOCK
IN4001
DIODES *
IN4001
CS-855 RKE AFTERMARKET MOTOR/DOOR LOCK WIRING CS-855 RKE REVERSE POLARITY DOOR LOCK WIRING
GREEN GREEN
FUSED FUSED
RED RED +12V +12V
BLUE BLUE + +
86 85 86 85 86 85 86 85
87 87 87 87
30 87A 30 87A 30 87A 30 87A
+ L CUT
UL
CUT
MASTER
SWITCH
*Diodes are recommended to prevent shorting door lock outputs.
