Cooper Lighting Pole Mount Icon - Manual

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please
contact your nearest representative.

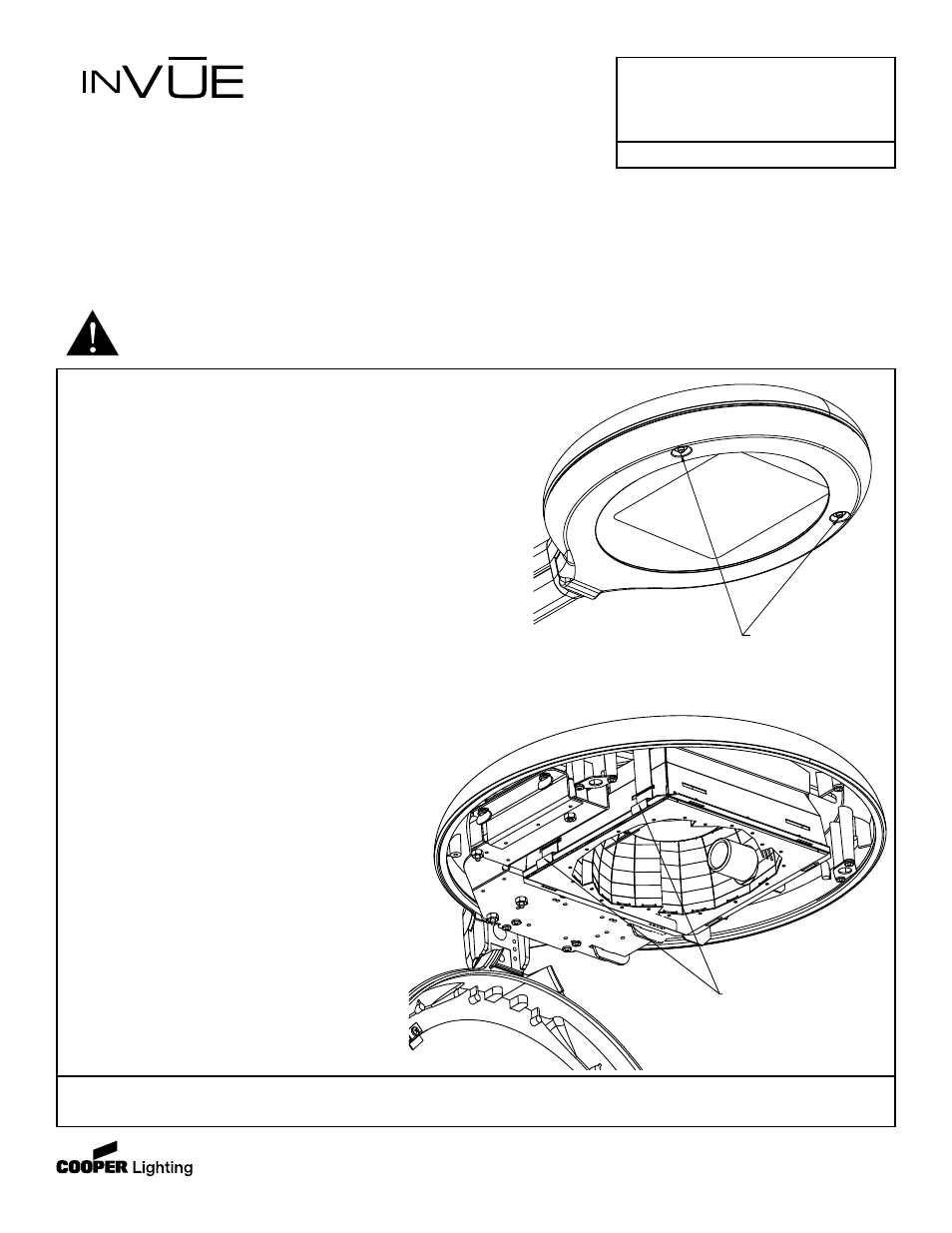

1. Open the Door -
Press both BUTTON LATCHES at the same time and open the door.
See Figure 1.
2. Reflector Removal -
Press the two REFLECTOR TABS outward and
swing the REFLECTOR down.
See Figure 2a and Figure 2b.
NOTE: Disconnect REFLECTOR CONNECTOR from
the HOUSING as shown in Figure 2c.
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-593 AVU040206
Pole Mounted Icon
Sheet 1 of 5
3/11/04 IMI-593
INSTALLATION INSTRUCTIONS
IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE.
RETAIN FOR FUTURE REFERENCE.
General: Upon receipt of fixture thoroughly inspect for any
freight damage, which should be brought to the attention of
the delivery carrier. Compare the catalog description listed
on the packing slip with the fixture label on the housing to
assure you have received the correct merchandise. Safety: This fixture must be wired in accordance with
the national electrical code and applicable local codes
and ordinance. Proper grounding is required to insure
personal safety. Carefully observe grounding procedure.
All work should be done by an electrician.
TM
WARNING: Risk of Electric Shock. Disconnect power at circuit breaker panel or
fuse box before installing or servicing.
Button Latches
Push to Open
Reflector Tabs
Fig. 1
Fig. 2a
