Char-Broil 463620809 User Manual
Page 19
5
6

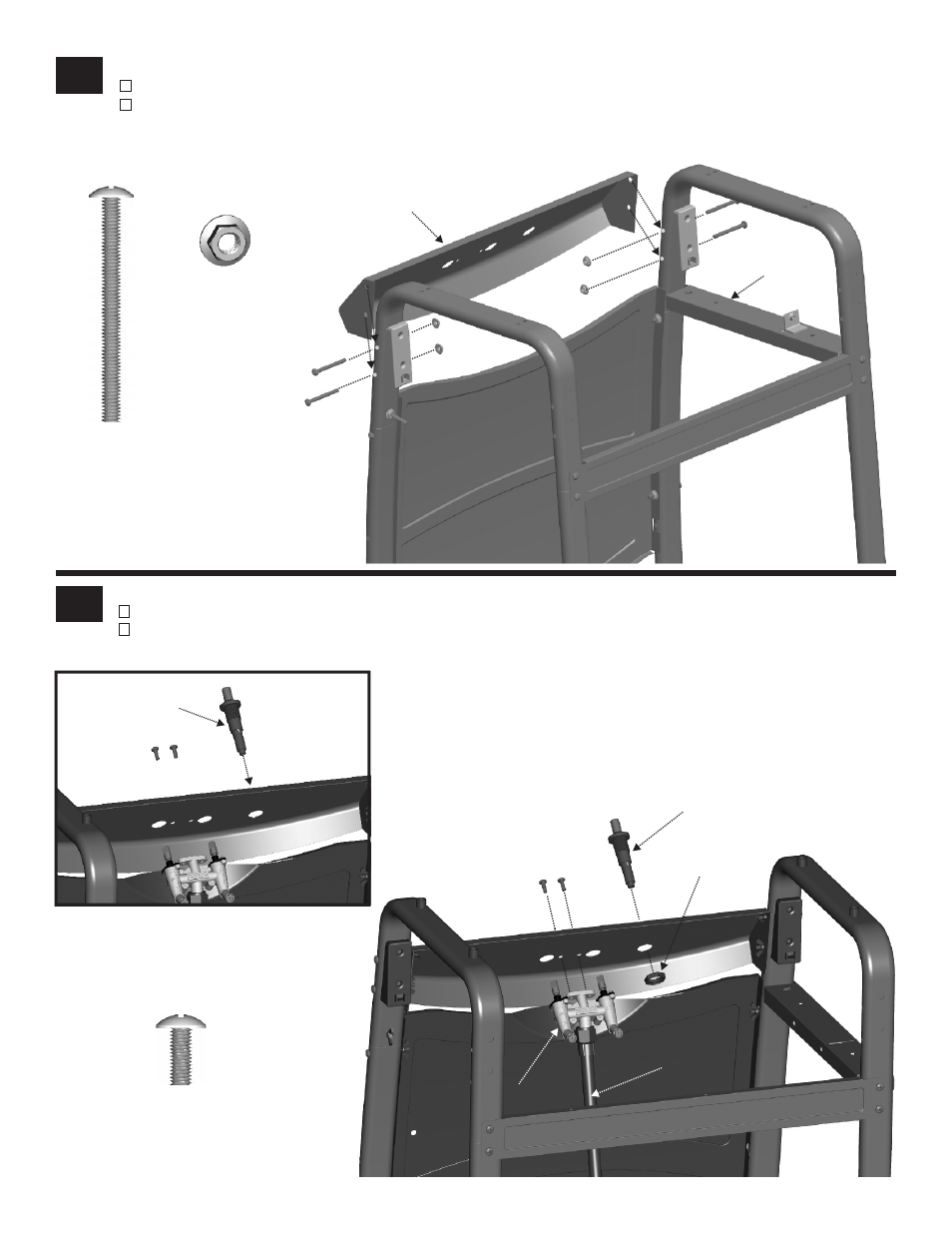

Control Panel
Stand cart upright
In front, slide control panel between left and right legs, attach control panel with #10-24X2’’ Machine screws and #10-24
Flange nuts. Tighten all screws.
#10-24x2”
Machine Screw
Qty. 4
#10-24
Flange Nut
Qty. 4
Valve/Hose/Regulator and Ignitor
Attach valve/hose/regulator assembly to control panel with #10-24x1/2’’ Machine screws.
Attach ignitor to control panel using the stamped nut that’s provided. NOTE: if your grill come with Snap-in ignitor, Space
please see Option.
#10-24X1/2”
Machine Screw
Qty. 2
Option: Snap the
ignitor into the
control panel
Ignitor
Ignitor
Stamped nut
19
Control panel
Hose
Main burner valve
Side Brace
