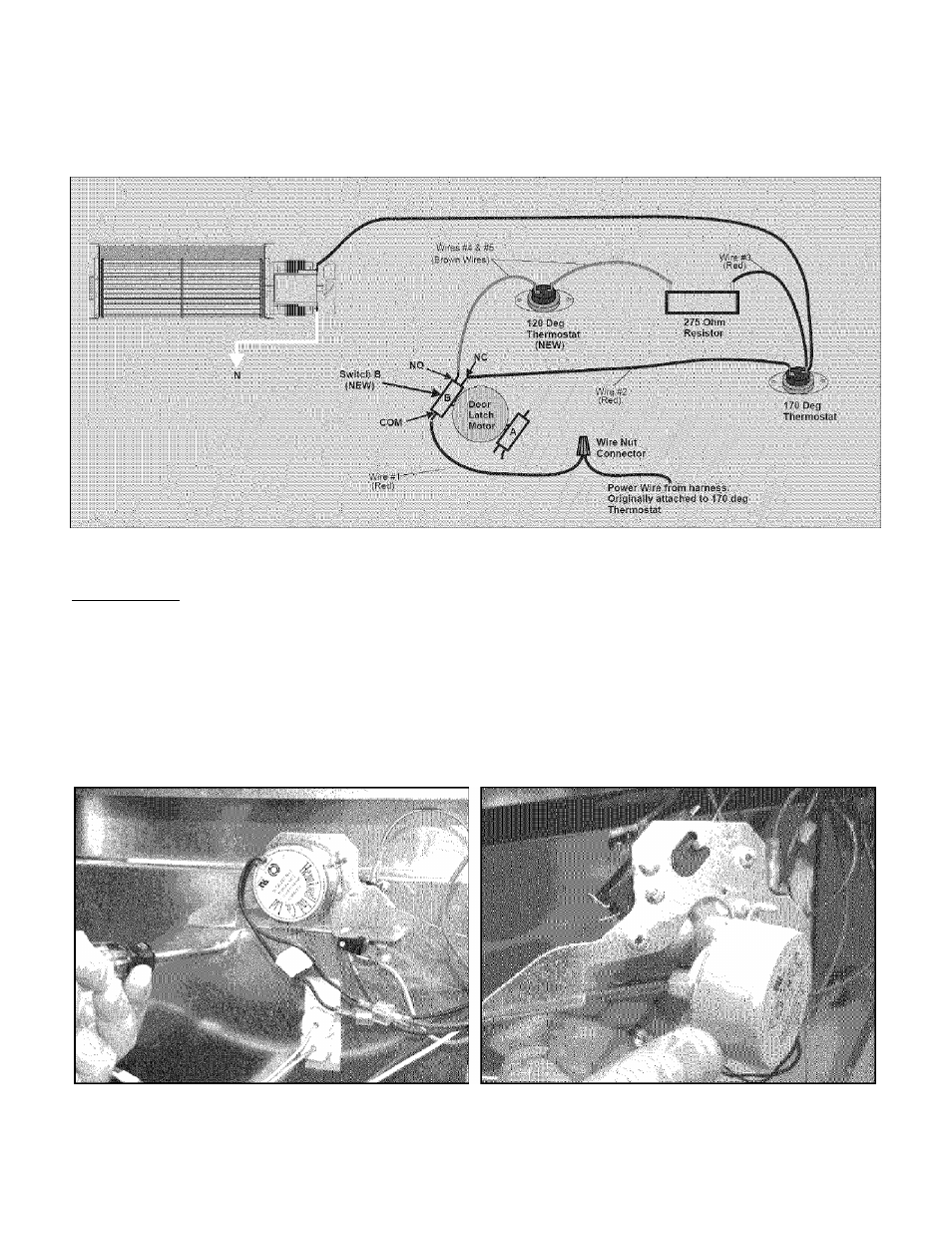

Illustration for the kit wiring,,.
IMPORTANT: Before servicing always remove power from the unit and turn off the gas supply.
Remove the rear panel from the oven. It may also be helpful to remove the top cover for easier
access to the thermostat and wires. Follow the steps outlined below to install the kit
1, Remove the screws securing the lock
motor assembly and remove the
assembly from the chassis
2. Remove the 2 screws securing the door
lock motor and remove it from the
mounting bracket
