SECTION 5
SERVICE TECH INFORMATION
5A. TROUBLESHOOTING
MANUAL ADVANCE REGENERATION CHECK
This check verifies proper operation of the valve
motor, brine tank fill, brine draw, regeneration
flow rates, and other controller functions. Always
make the initial checks, and the manual initiated
diagnostics.
NOTES: The faceplate display must show a steady
time (not flashing). If an error code shows, first
press the SELECT button to enter the diagnostic
display.
1. Press the ON/OFF-HOLD button and hold in
for 3 seconds. ^RECHARGE and Eill begin to
flash (or clean backwash begins, if set) as the
softener enters the fill cycle of regeneration.
When FILL is on steady, remove the brinewell
cover and, using a flashlight, observe fill water
entering the tank.
“^NOTE: If the CLEAN feature is set to ON, a
cleaning backwash {CEEAN and Bkwsh or Rinse
flashes in the display, along with the minutes of the
clean cycle remaining), precedes the recharge.

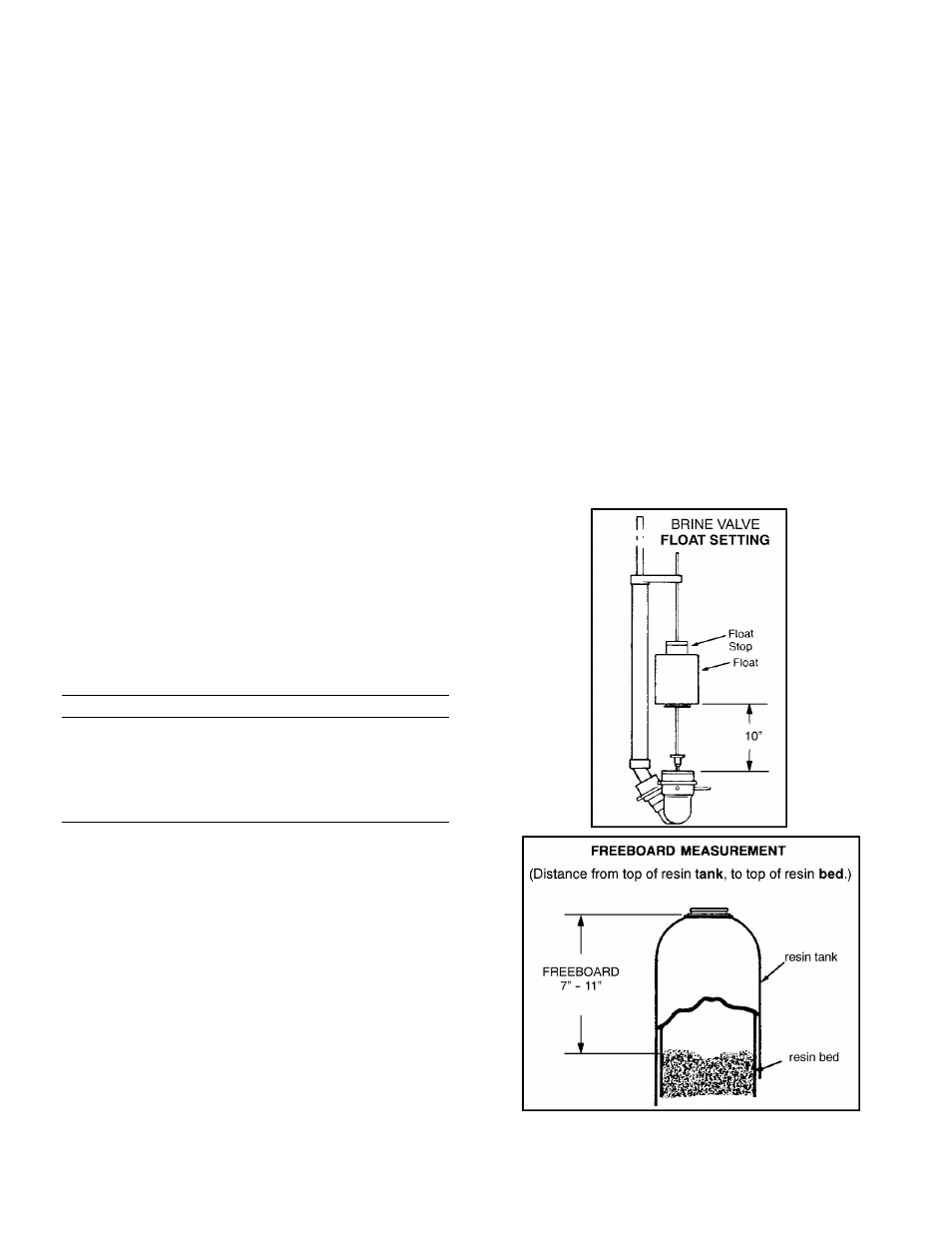

a. If water does not enter the tank, look for an ob­
structed nozzle, venturi, fill flow plug, brine
tubing, or brine valve riser pipe.
CYCLE FLOW RATES (GALLONS PER MIN.)
FILL (flow to salt storage tank) 0.3 (1.1 liters)
BRINING \ .16 (.61 liters)
BRINE RINSE ( .12 (.45 liters)
BACKWASH > (flow to dram)
1.8 (6.8 liters)
FAST RINSE ) 1.8 (6.8 liters)
2. After observing fill, press the ON/ OFF -HOLD
button to move the softener into brining. A
slow flow of water to the drain will begin.
Verify brine draw from the brine tank by
shining a flashlight into the brinewell and
observing a noticeable drop in the liquid level.
NOTE: Be sure a salt bridge is not preventing
water with salt contact.
a. If the softener does not draw brine...
.. .nozzle and/or venturi dirty or defective.
...nozzle and venturi not seated properly on
gasket.
...restricted drain (check drain fitting and
hose).
...defective nozzle and venturi seal.
.. .other inner valve defect (rotor seal, rotor &
disc, wave washer, etc.).
NOTE: If water system pressure is low, an elevated
drain hose may cause back pressure, stopping
brine draw.
3. Again press ON/OFF-HOLD to move the
softener into backwash. Look for a fast flow of
water from the drain hose.
a. An obstructed flow indicates a plugged top dis­
tributor, backwash flow plug, or drain hose.
4. Press ON/OFF-HOLD to move the softener
into fast rinse. Again look for a fast drain flow.
Allow the softener to rinse for a few minutes to
flush out any brine that may remain in the resin
tank from the brining cycle test.
5. To return the softener to service, press ON/
OFF-HOLD.
23
