SECTION 3

STEP BY STEP GUIDES TO INSTALL

B. INSTALL 3-VALVE BYPASS

INSTALLING 3 VALVE BYPASS AND PIPES
(FIG. 9)

0 Cut the house main water pipe where you will

connect the softener. Loosely put together pipe,
fittings, and the 3 valves. Place valve(s) within
easy reach.

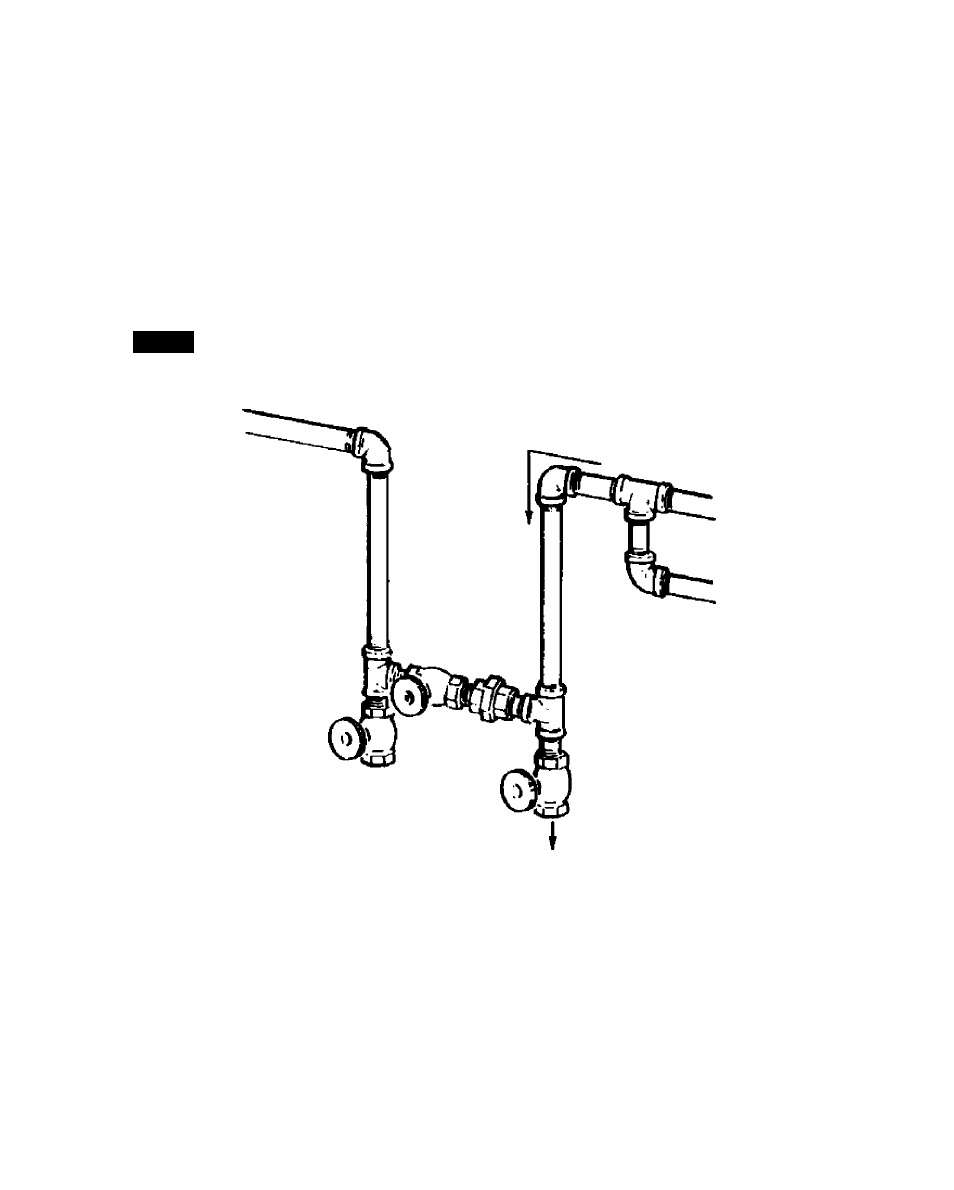

F1G.9

3 - VALVE BYPASS

(threaded plumbing shown)

IMPORTANT:
When looking at the front of the softener, the inlet
is on the right side. If water in your house main wa
ter pipe runs from left to right, be sure to use a

"cross-over" as shown on page 2-3.

When all pipe, fittings and valves make a good
fit together, tighten all threaded joints (use joint
compound on outside threads), or solder all

sweat joints.

softener

inlet

3-3 Deluxe Valve

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
