Crimestopper Security Products CS-2004DC User Manual
Cs-2004dc ii, Series ii, With two 1-way remotes
Table of contents
Document Outline

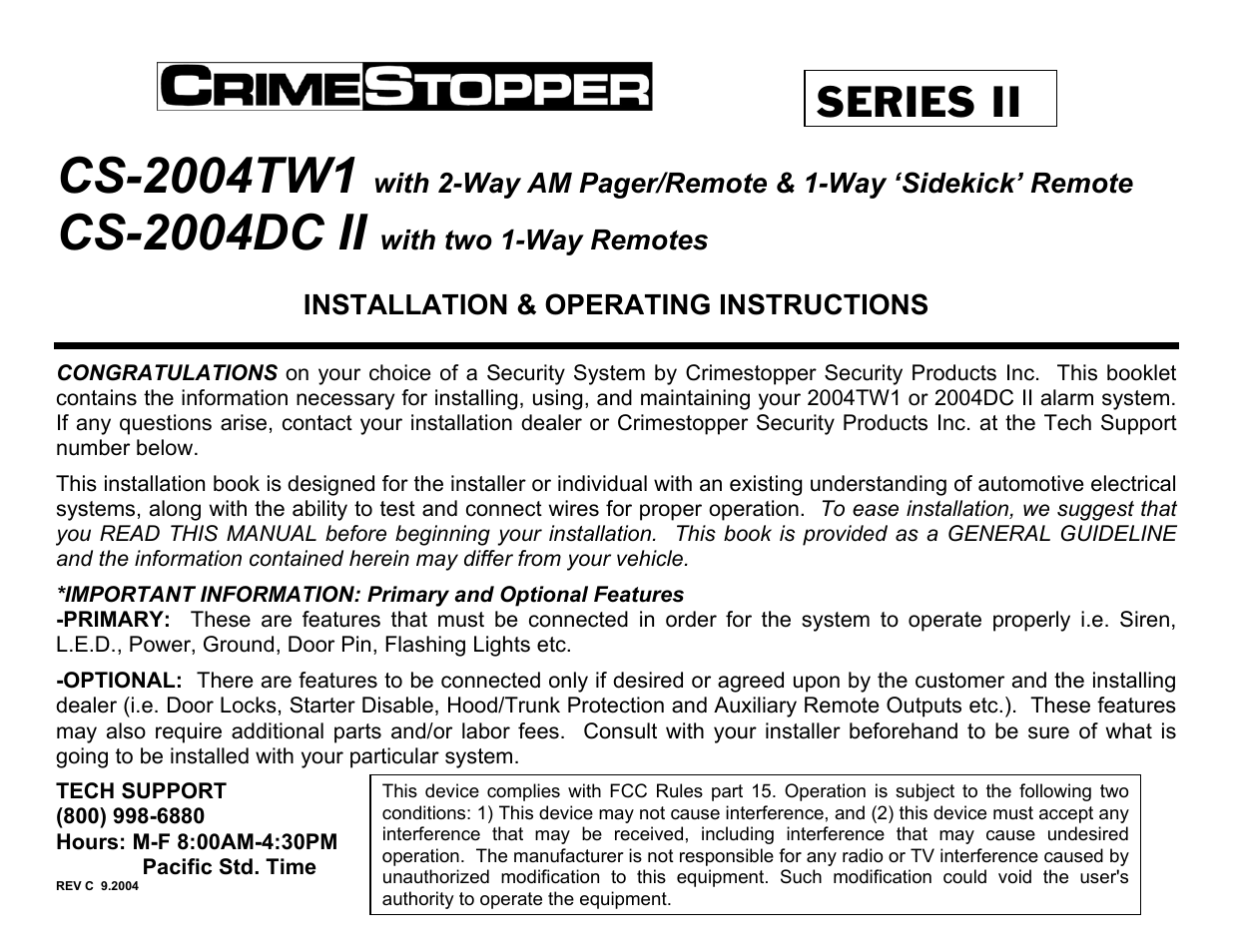

- CS-2004TW1 with 2-Way AM Pager/Remote & 1-Way ‘Si
- CS-2004DC II with two 1-Way Remotes
- INSTALLATION & OPERATING INSTRUCTIONS
- SIREN MOUNTING: Mount the siren under the hood to fender-well or other body surface with the open end facing downward. Run the red siren wire through the firewall using a rubber grommet. Ground the black wire to the body.
- ORANGE WIRE: (-) NEGATIVE ARMED OUTPUT
- BLUE WIRE: (-) HOOD/TRUNK TRIGGER
- GREEN WIRE: (-) DOOR TRIGGER
- VIOLET WIRE: (+) DOOR TRIGGER
- PINK WIRE: (+) CARJACK INPUT
- BLACK/WHITE WIRE: (+/-) OUTPUT FROM ON-BOARD 15A RELAY (Term #30, Step #3)
- BROWN/WHITE: (-) HORN HONK OUTPUT (Optional, May require a relay)
- 2-PIN PLUG (SMALL): LED INDICATOR (RED FLASHING LIGHT)
- BLUE WIRE: NEG. WARN AWAY
- WHITE WIRE: NEG. TRIGGER
- PIN 2: NEGATIVE (-) TRIGGER
- Negative Trigger (-): Many Imports; Late model Ford & General Motors
- Positive Trigger (+): Many General Motors; Chrysler / Dodge / Plymouth
- 1. AUTOLOCK WITH IGNITION
- 5. PARKING LIGHTS ON WITH DISARM
- 6. GRAY WIRE PROGRAMMING: TRUNK POP (AUX 1) or M.A.P. OUTPUT
- 7. TYPE of CARJACK PROTECTION (ACTIVE or PASSIVE)
- 10. DOOR LOCK/UNLOCK PULSE TIME
- 11. DOUBLE UNLOCK PULSE
- 12. ENABLE/DISABLE CARJACK FEATURES
- 13. STARTER DISABLE CONFIGURATION: NORMALLY CLOSED OR NORMALLY OPEN
- ACTIVE ARMING
- AUTOLOCK/UNLOCK
- 2nd AUX. OUTPUT (REMOTE AUX. OUTPUT 2)
- CS-2004TW1 LED TRANSCEIVER (LOW BATTERY WARNING)
- The CS-2004TW1 LED has a low battery warning system. When the battery voltage is low, the LED pager remote will stop beeping and flash the Orange & Green LEDs when buttons are pressed. We recommend replacing the battery for proper operation. Use a sma
- Carefully insert the new battery. If done correctly the remote will beep when the new battery installed. If the remote does not beep or respond after replacing the battery, remove the battery and re-insert.
- PROGRAMMABLE ACTIVE CARJACK
- PROGRAMMABLE PASSIVE CARJACK
- SWITCH-CONTROLLED CARJACK PROTECTION (PINK WIRE CONFIGURATION)
