Plan Your Installation

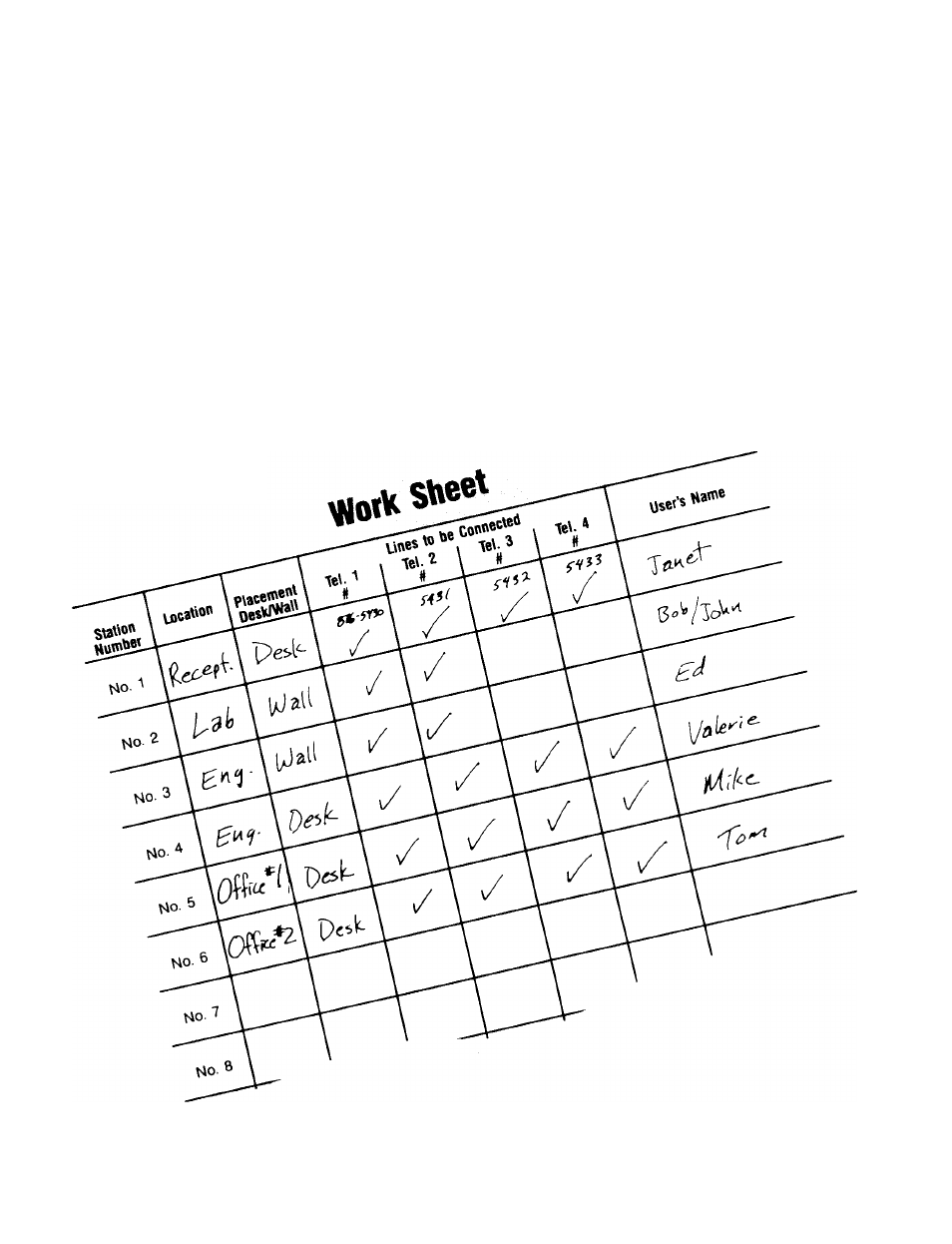

After identifying the system wiring, use the WORK SHEET to the right to
plan you installation.
^
Up to 16 GE 2-9450 telephones may be connected to form your office
configuration. Each phone will be assigned a Station Number (first
colurnn). In the second column, write the location. Next, check either
desk or wall placement. Then check which lines are to be
connected to that station.
Important: Each telephone must be connected to line 1 and line 2 for
proper operation. The remaining lines 3 and 4 may — or may not —
be connected to each station as you desire. Finally, enter the user’s
name for each station.
