DualTouch™ Technology Touchpanel Crestron DTT-15V2
Controls and Indicators

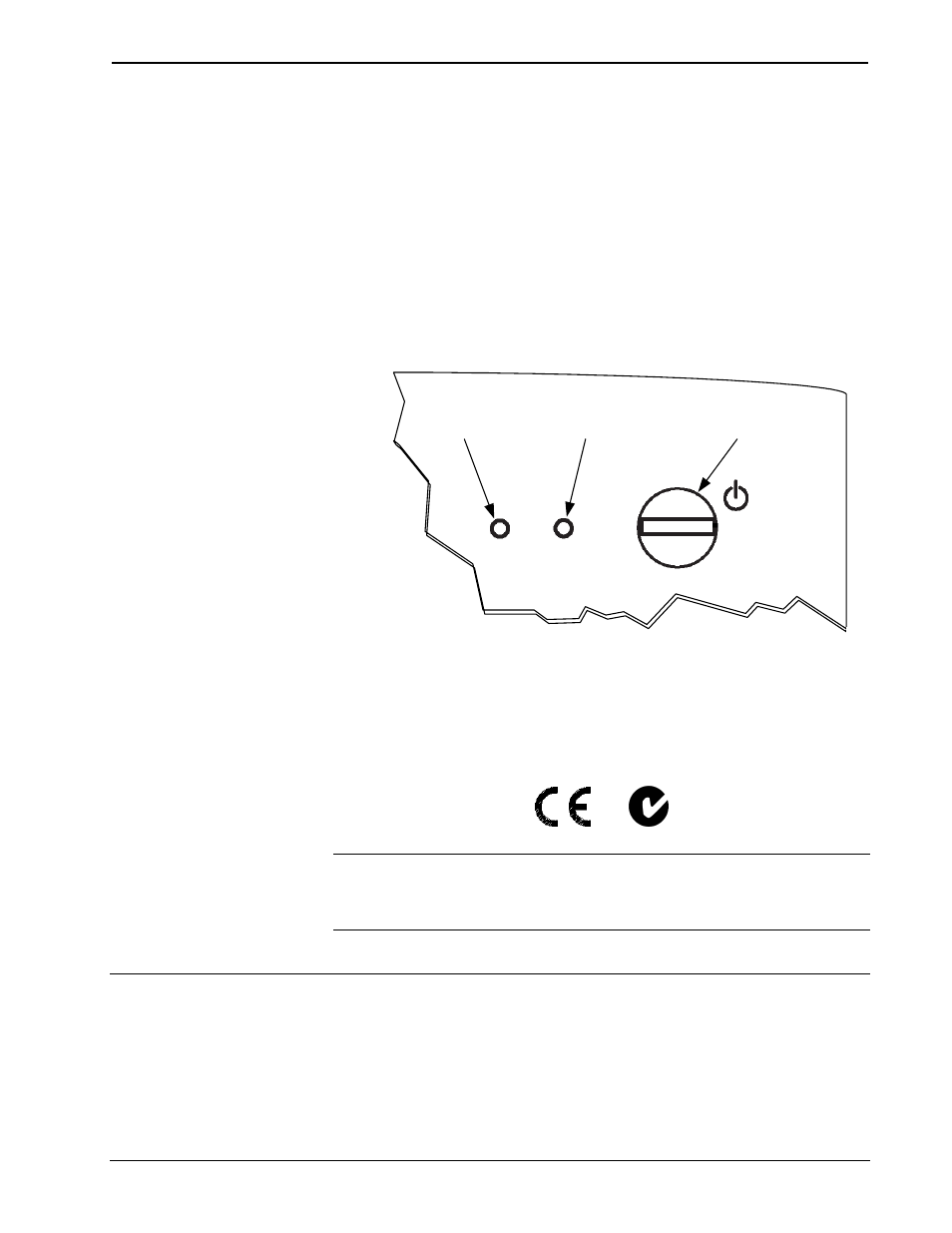

A power on/off switch and a power LED are located in the upper right corner of the
DTT-15V2. The DTT-15V2 conforms to VESA and ENERGY STAR
® power
savings guidelines. When using this device with a VESA Display Power
Management Signaling (DPMS) compliant computer or graphics card, the
DTT-15V2 automatically complies with the following power saving parameters.
• The power indicator is orange when power is applied and no video source is
present.
• The power indicator is blue when power is applied and a video signal is
applied.
• The status indicator is blue when the DTT-15V2 senses the annotation pen
touchdown.
Power Switch Power LED Status LED
Industry Compliance
As of the date of manufacture, the DTT-15V2 has been tested and found to comply
with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Setup
Hardware Hookup
Refer to the following diagram and complete the connections as specified. Ensure
that the UPX-2 and the DTT-15V2 are both powered down before beginning.
Operations Guide – DOC. 6342 DualTouch™ Technology Touchpanel: DTT-15V2 y 9
