Crestron DTT-15V2 DualTouch™ Technology Touchpanel

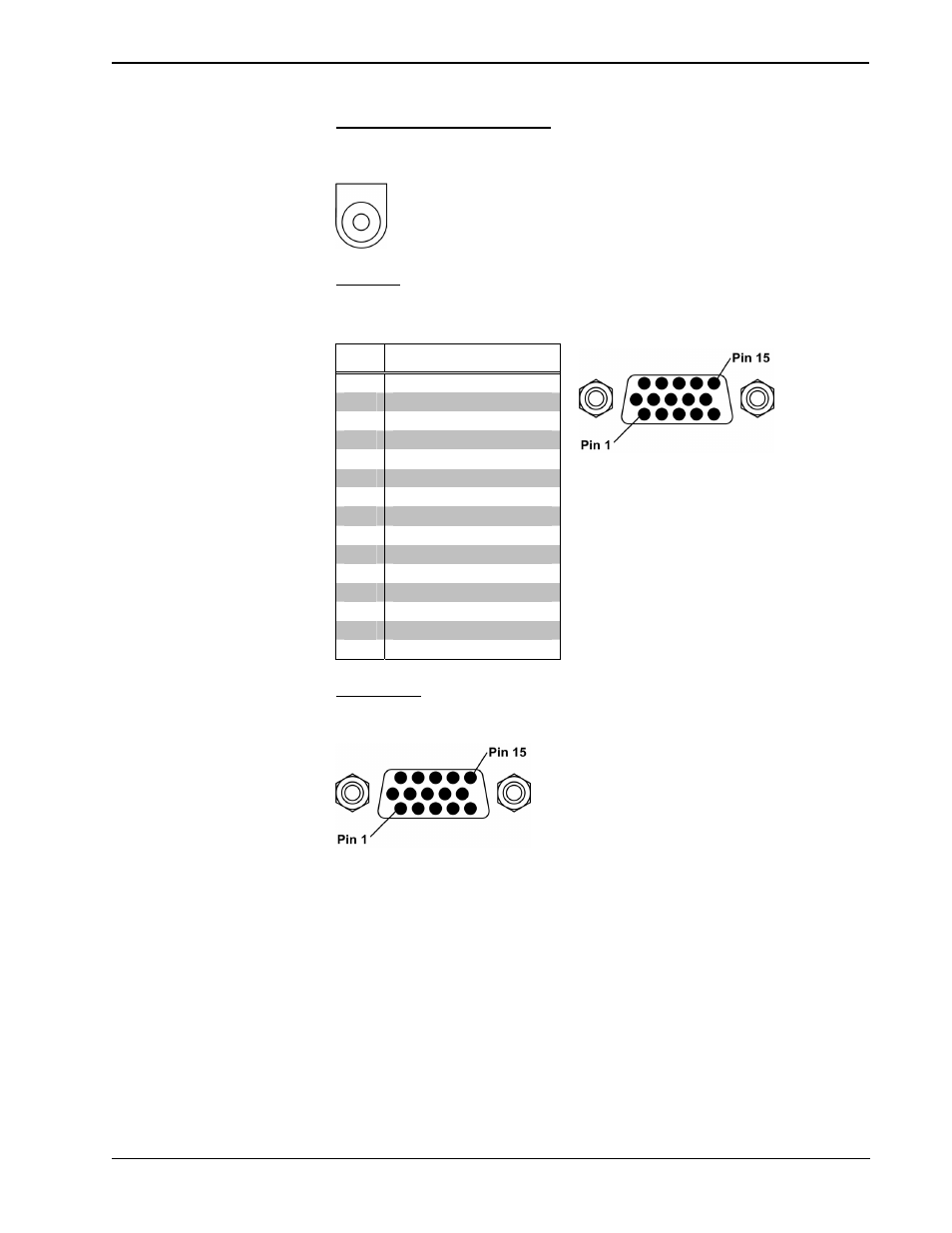

Power Adaptor Connector
One DC IN connector provides connection for the power supply, 24 Watts
(2.0 Amps @ 12 Volts DC, power supply included).
RGB IN
One DB15HD RGB (VGA) female connector is provided for video input.
RGB IN Connector Pinout
PIN DESCRIPTION
1 Red video input
2 Green video input
3 Blue video input
4 GND
5 GND
6
GND
7 GND
8
GND
9 Not Connected
10 GND
11 Not Connected
12 DDC Clock
13 Horizontal Sync
14 Vertical Sync
15 DDC Data
RGB OUT
One DB15HD RGB (VGA) female connector is provided for video output to a
projector device (not used in this application).
y DualTouch™ Technology Touchpanel: DTT-15V2 Operations Guide – DOC. 6342 8
