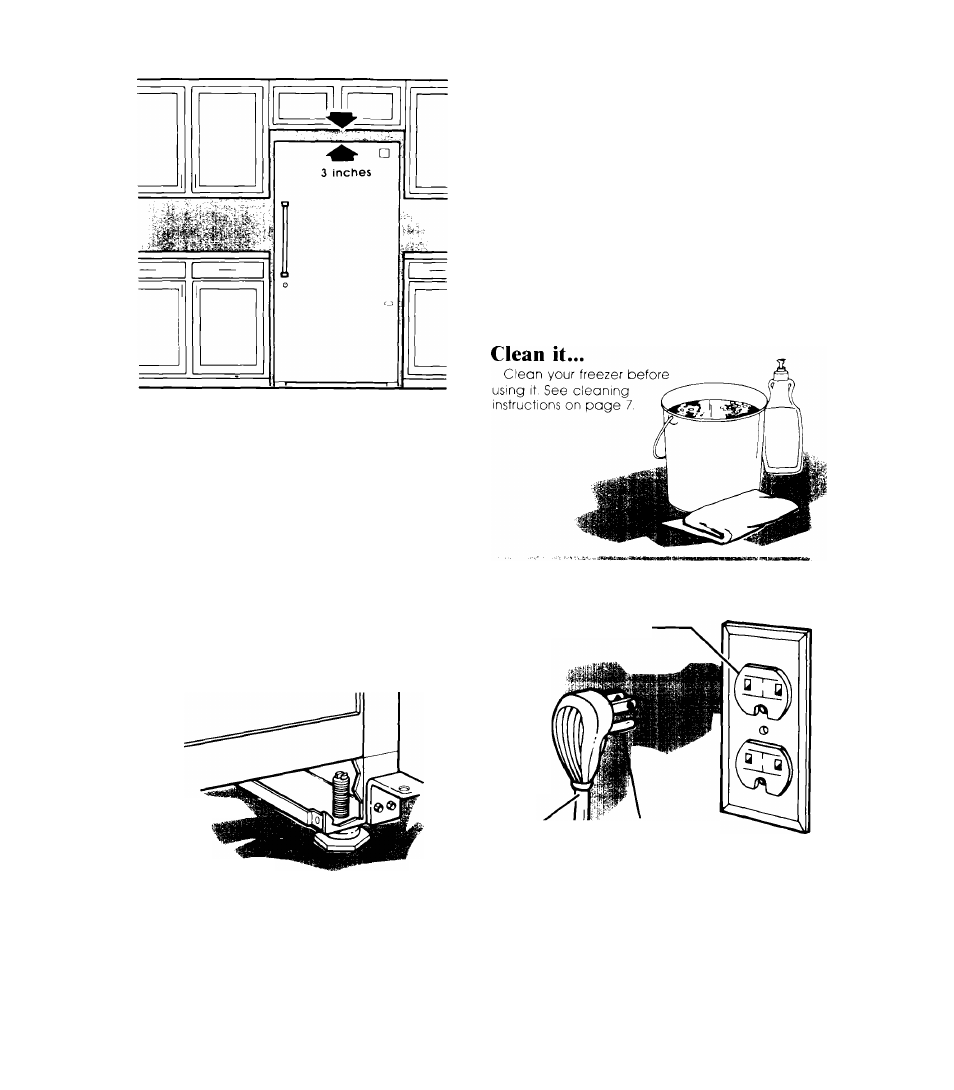

Install properly...
1 Check the strength of the floor It should hold the
weight of a fully loaded freezer.
2 Pick a safe place, indoors, away from in­
flammables such as gasoline.
3, Allow 3 Inches (7,5 cm) air spaoe on top of freezer
for proper ventilation.
4, Allow at least an inch (2.5 cm) between the
freezer condenser, on the back of the unit, and
the vzall
5, Allow',', inch (1,25 cm) on each side of the freezer
for ease of installation
6, If the freezer is to be against a wall, you might
want to leave extra space on the hinge side so the
door can be opened wider.
Level freezer...
so the door will stay open at any position.
Leveling Leg
Raise Lower
This freezer has 2 threaded leveling legs that are
shipped in a separate package,
1. Screw these legs all the way into bolt holes in the
bottom front corners of the freezer.
2. Slide the freezer into place.
3. Adjust front legs to level the freezer.
- To raise front, turn legs clockwise.
- To lower front, turn legs counterclockwise.
4. Check with level,
5. After freezer is fully loaded, recheck with level.
Remove sales labels...
Remove the Consumer Buy Guide label and any
inside labels before using the freezer
To remove any remaining glue:
1 Rub briskly with thumb to make a ball, then
remove.
OR
2. Soak area with dishwashing detergent solution (1
teaspoon detergent in 1 guart warm water) be­
fore removing glue as described in step 1.
DO NOT USE rubbing alcohol or flammable or
toxic solvents, such as acetone, gasoline, car­
bon tetrachloride, etc. These can damage the
material.
NOTE: DO NOT REMOVE the Tech Sheet fas­
tened under the freezer at the front.
Plug it in...
3-prong grounding
type wall receptacle
Freezer
Power Cord 3-prong
grounding plug
Recommended Grounding Method
A 115 Volt, 60 Hz,, AC only 15 or 20 ampere fused
and properly grounded electrical supply is re­
quired, It is recommended that
a separate circuit
serving only this appliance be provided.
Do not use an extension cord. Use a recep­
tacle which cannot be turned off with a switch
or pull chain. See individual electrical require­
ments and grounding instruction sheet in your liter­
ature package
