INSTRUCTION SHEET
for Ice Maker Trim Kit – Full Door Models Only
Instruction Sheet 2185921 Rev. A 7/99
NOTE: Customer must supply #6 flat head wood screws
to mount wood panel of customers choice.
Follow the steps below:
1. Remove old door handle.
2. Remove nameplate. Nameplate is held in place with
adhesive tape.
3. Install trim to wood panel of customers choice. See
illustration. Recommend using eight (8) #6 flat head
wood screws approximately
1 ⁄
2
" in length. Screws
supplied by customer. Please check length before
installation.
4. Lay customer panel and trim on door and mark the
holes using the trim as your template.
5. Using an 1 ⁄
8
" drill bit, drill eight (8) holes on the side
of door as shown. See illustration.
6. Install panel and trim with eight (8) screws supplied
in the kit.
7. Install new door handle supplied using the old
mounting screws.
© 1999
(All Rights Reserved)

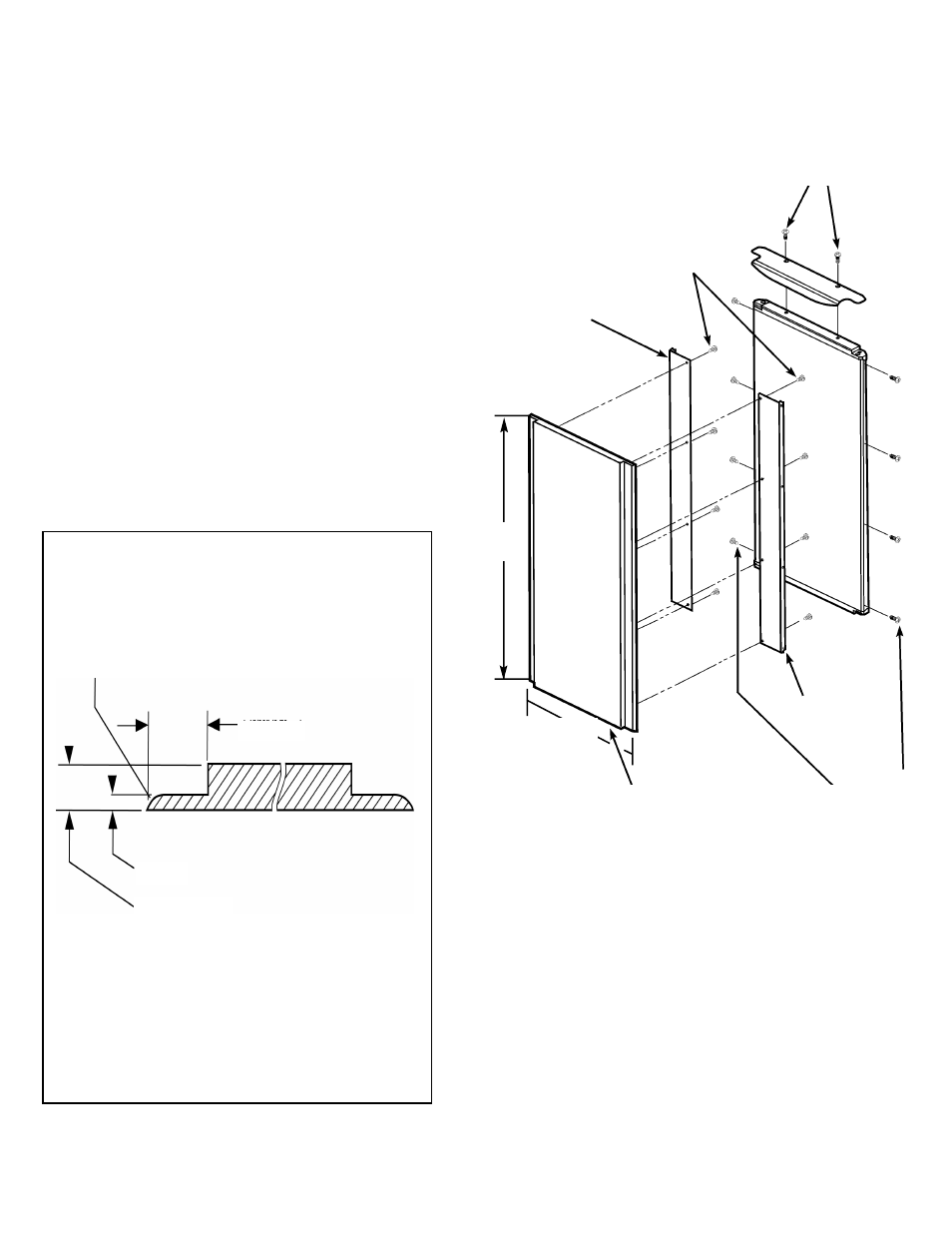

Custom Panel Dimensions:
NOTE: Customer Panel shown must be 3 ⁄
4
" (1.9 cm)
thick and requires the following changes for
clearance. These changes must be made on
both sides of the panel as shown.
Cutting Notes:
1. Match woodgrain direction with that of adjacent
cabinets.
2. Cut panel to dimensions as shown in illustration.
3. Sand panel edges to provide smooth finish.
4. Important: Use moisture resistant sealer on
both sides and all edges of panel for moisture
protection.
Route Approximately 3 ⁄
8
" (1.0 cm)
1 ⁄
4
" (.635 cm)
3 ⁄
4
" (1.905 cm) Thick Panel
1 15 ⁄
32
" (3.73 cm)
Door handle
mounting screws
#6 Flat head wood
screw
1 ⁄
2
" long (8)
(supplied by customer)
Trim
Trim
Customer
supplied panel.
Recommend
3 ⁄
4
" (1.9 cm)
thick wood panel
Screw,
#8-18 x 3 ⁄
8
" (8)
14 33 ⁄
64
"
(36.9 cm)
29 31 ⁄
64
"
(74.9 cm)
