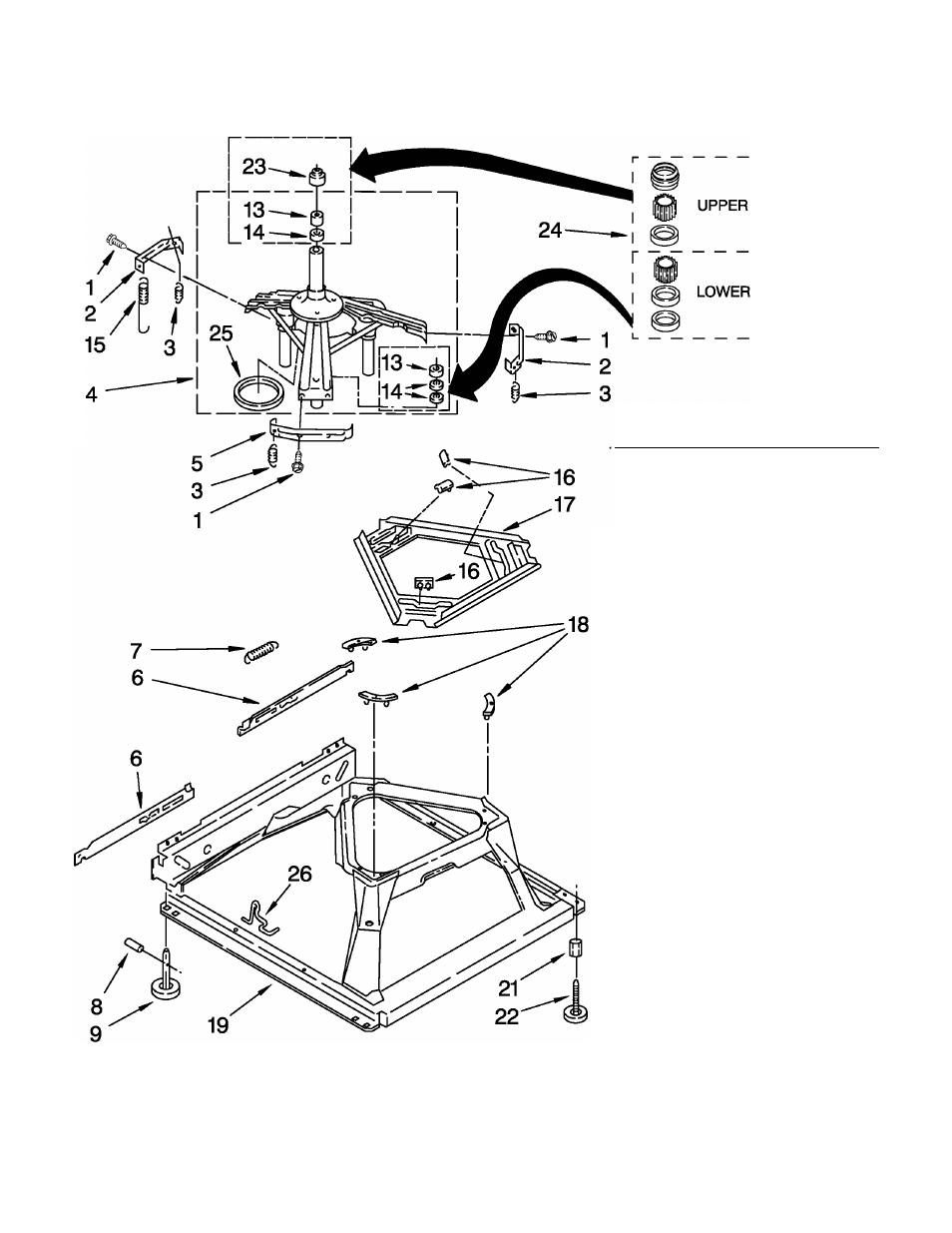

MACHINE BASE PARTS
For Model: CAM2752TQ0
(White)
Illus. Part
No.
No.
DESCRIPTION
1
3400076 Screw, Bracket
Mounting
(10-32 x 5/8)
2
64067 Bracket, Spring
Outer (2)
3
63907 Spring, Suspension (3)
4
8575214 Support & Brake,
Tub
5
64065 Bracket, Spring
Outer (L.F.)
6
63466 Link, Leveling
Mechanism (2)
7
62597 Spring, Leveling
Mechanism
8
62837 Pin, Knurled
9
62596 Foot, Rear (2)
13
8546455 Bearing,
Centerpost (2)
14
357409 Seal, Centerpost (3)
15
388492 Spring,
Counterweight
16
62568 Pad, Plate
17
3946509 Plate, Suspension
(Includes Item 16)
18
3363660 Pad, Base
19
3946512 Base Assembly
(Includes Items 6,
7, 8, 9, 16, 17,
18 & 26)
21
3359452 Nut, Lock
(3/8-16)
22 W10001130 Foot, Front (2)
23
8577376 Seal, Centerpost
24
285203 Centerpost
Bearing Kit
(Includes Items
13, 14 & 23)
25
63134 Ring, Sound
Deadening
26
63806 Retainer,
Suspension Spring
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
11
W10114744
