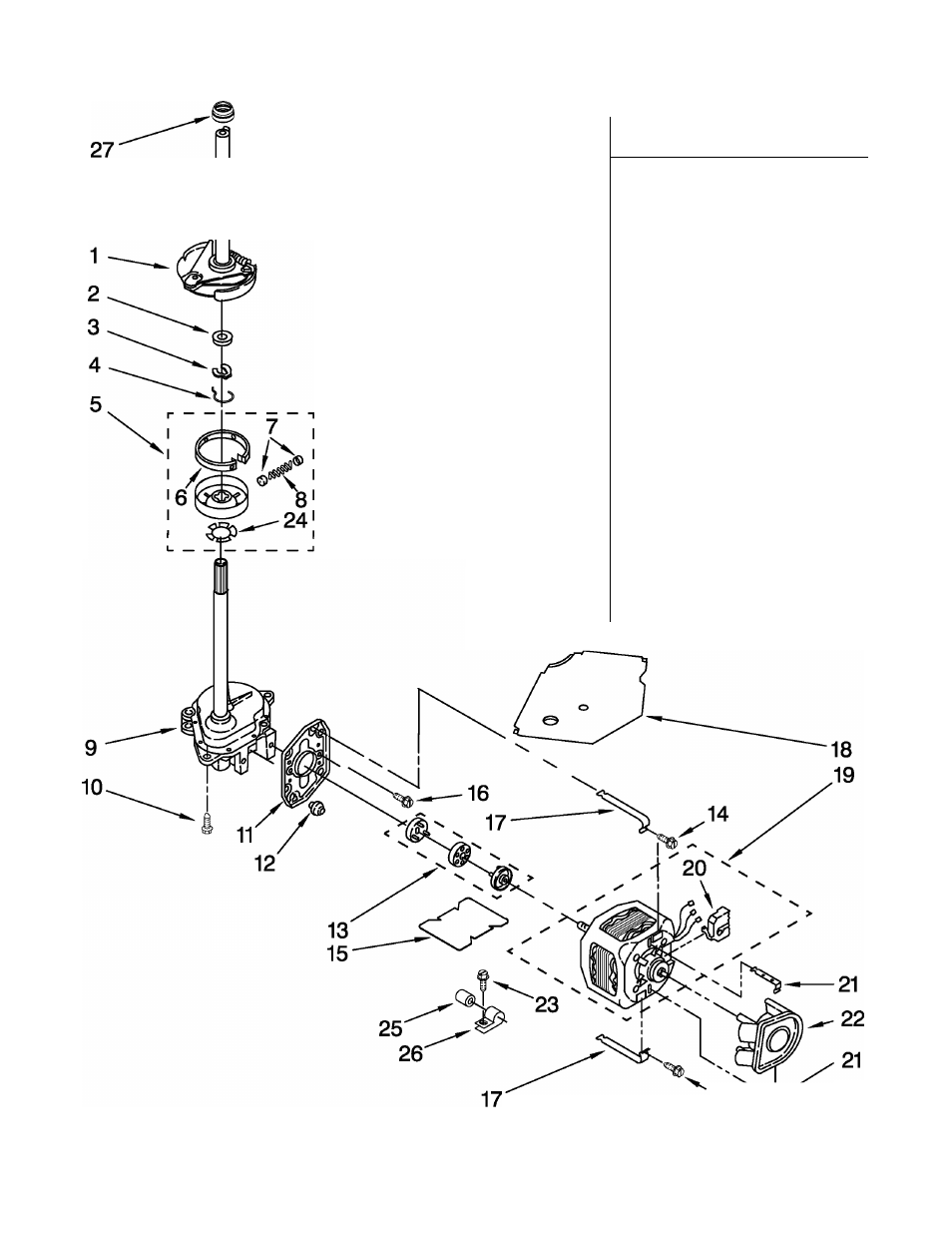

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
For Model: CAM2752TQ0
(White)
Illus. Part
No. No. DESCRIPTION
1
2
3
4
5
6
10
388952
63292
62697
63283
8299642
3951993
62646
8559387
3360630
3357334
Brake & Drive
Tube (Complete)
(Refer to Page 14
For Further
Breakdown)
Washer, Spin
Tube Thrust
Ring, Spin
Tube Support
E-Clip,
Clutch Retainer
Clutch (Complete)
Band & Lining,
Clutch (Includes
Items 7 & 8)
Cap, Clutch
Spring (2)
Spring, Clutch
Gearcase
(Complete)
(Refer To Page
15 For Further
Breakdown)
Screw, Gearcase
To Base (3)
Illus.
No.
Part
No.
DESCRIPTION
11
62611 Plate, Motor
Mount To
Gearcase
12
62691 Grommet, Motor (4)
13
3978849 Coupling, Motor
And Isolation
14
3387485 Screw (2)
#10-16 x 5/8
15
3946532 Shield, Motor
16
3400516 Bolt,
Motor Plate
17
3349637 Retainer, Motor (2)
18
3362089 Shield, Tub
To Motor
19
661600 Motor, Main
Drive
20
62850 Switch, Main
Drive Motor
21
8546127 Retainer, Pump (2)
22
3363394 Pump (Complete)
23
62863 Screw,
10-16 x 3/8
24
3355454 Clip, Anti
Rattle
25
8572717 Capacitor
26
3949496 Clamp, Capacitor
27
91939 Seal, Shaft
14
W10114744
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
10
7
