How it works
During the Self-Cleaning cycle, the oven gets
much hotter than it does for baking or
broiling...approximately 875°F (468°C). This heat
breaks up grease and soil and burns it off.

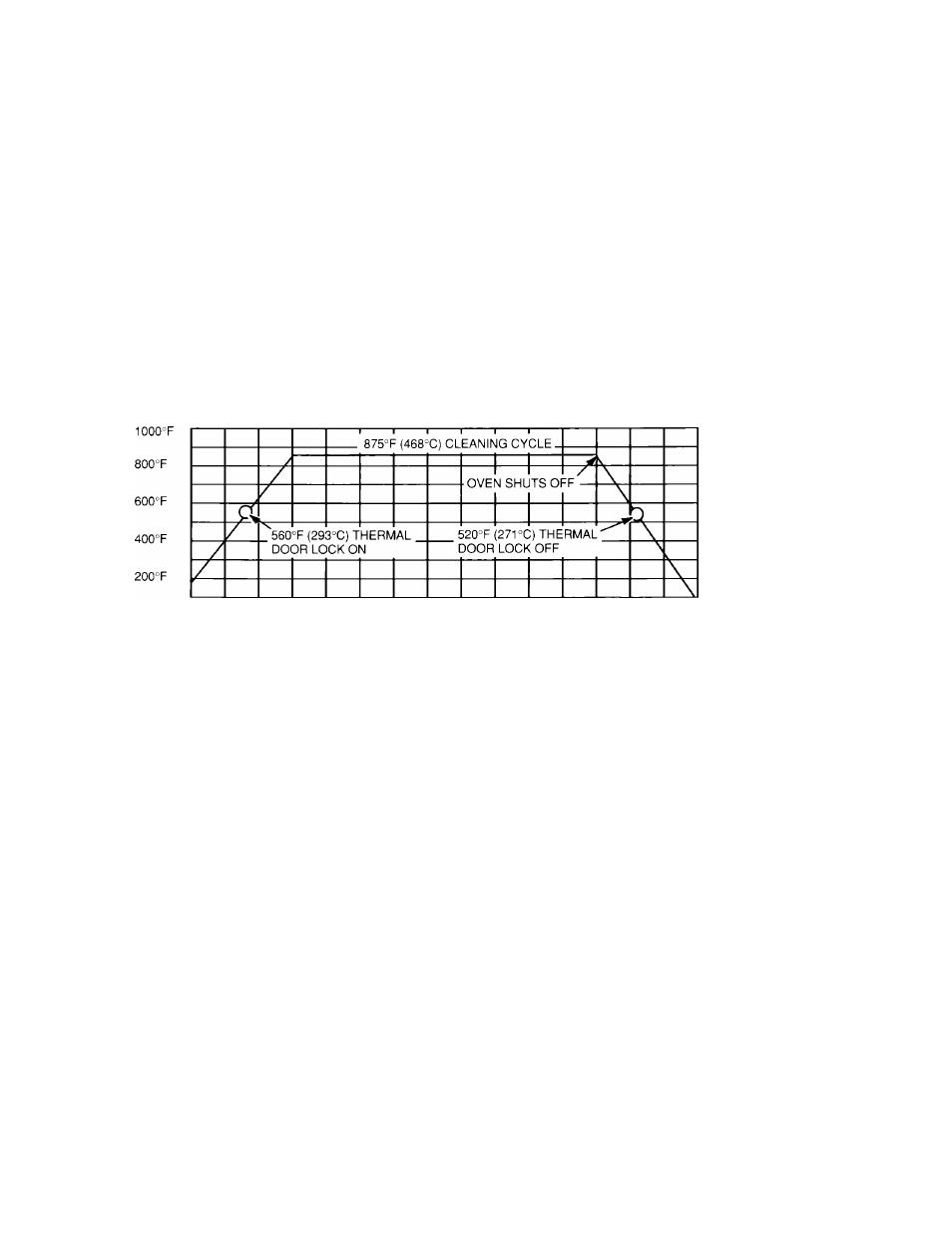

This graph shows approximate temperatures
and times during a Self-Cleaning cycle for 3 hours.
Self-Cleaning cycle - three hour setting
(Approximate temperatures and times)
538°C
427°C
316°C
204°C
93°C
START
1/2 hr.
1 hr.
1 1/2 hrs. 2 hrs.
2 1/2hrs. 3hrs. 3 1/2 hrs. STOP
Notice that the heating stops when the 3-hour setting is up, but that it takes longer for the oven to cool
down enough to unlock.
