The storage drawer
The storage drawer is for storing pots
and pans. The drawer can be removed to
make it easier to clean under the range,
and to check for installation of the anti
tip brackets. Use care when handling
the drawer.

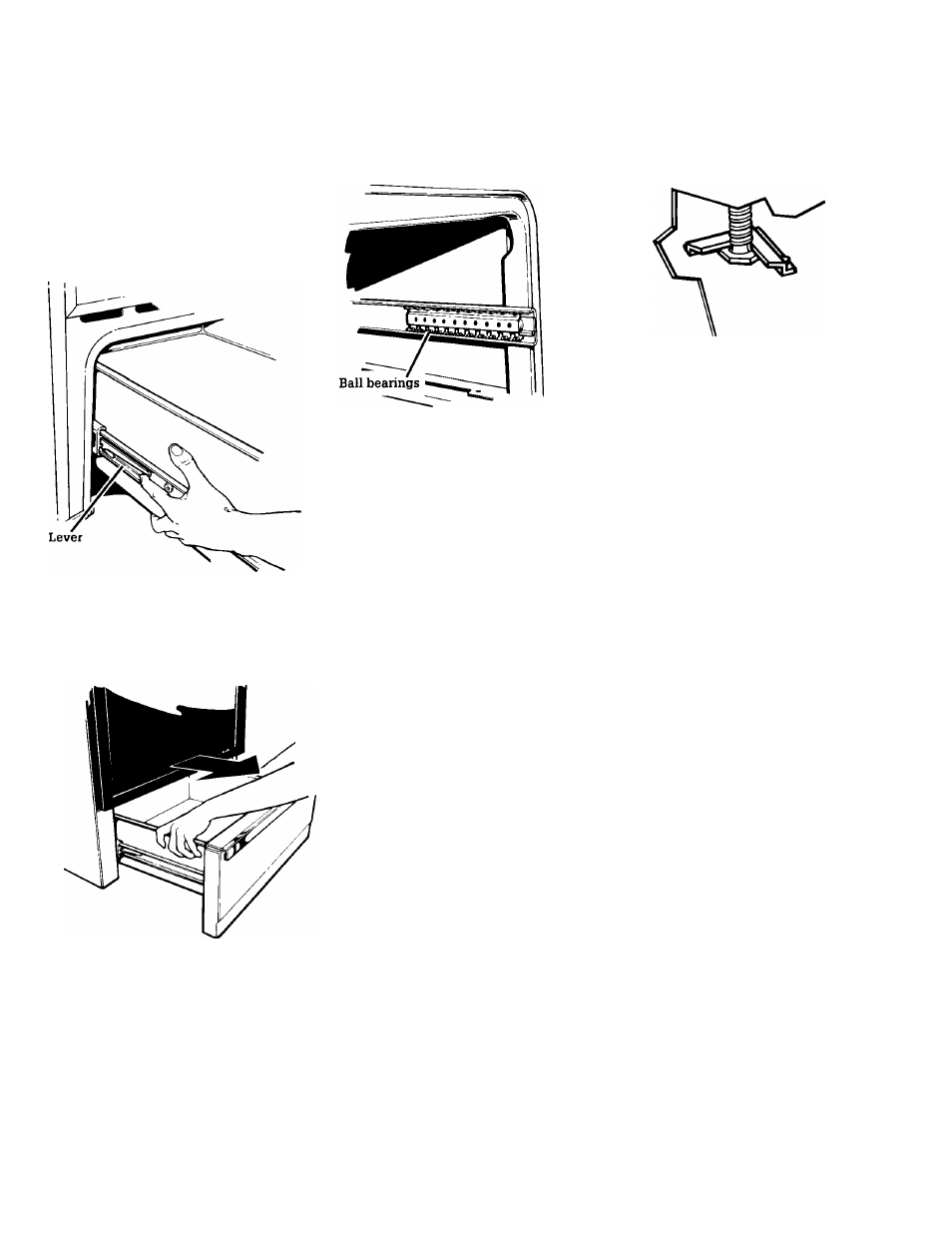

Removing the storage drawer:
3. Pull drawer out a little farther until
levers stay in “up” position. Pull
drawer the rest of the way out.
Replacing the storage drawer
To verify that the anti-tip
bracket(s) is engaged:
©
©
1. Make sure ball bearings on oven
slide rail are positioned toward the
front of the opening.
2. Fit ends of drawer slide rails into
the oven slide rails on both sides of
opening.
3. Slide drawer closed.
■ Remove storage drawer.
■ Look to see if the anti-tip bracket(s)
is attached to floor with screws.
■ Make sure rear leveling leg(s) is
positioned under bracket(s).
■ See "Important Safety Instructions”
on page 2 and Installation
Instructions for further details.
NOTE: The range will not tip during
normal use. Tipping can occur if
excessive force or weight is applied to
open door without anti-tip bracket(s)
properly secured.
Empty drawer of any pots and pans
before removing drawer. PuU
drawer straight out to the stop.
Push up plastic lever on both sides
of drawer.
