Changing the light hulh...
WARNING: Before removing the light shield for
cleaning or for replacing the bulb,
either unplug refrigerator or discon­
nect
electricity leading to re­
frigerator at the main power supply.
Shock and injury can occur if elec­
tricity remains connected.

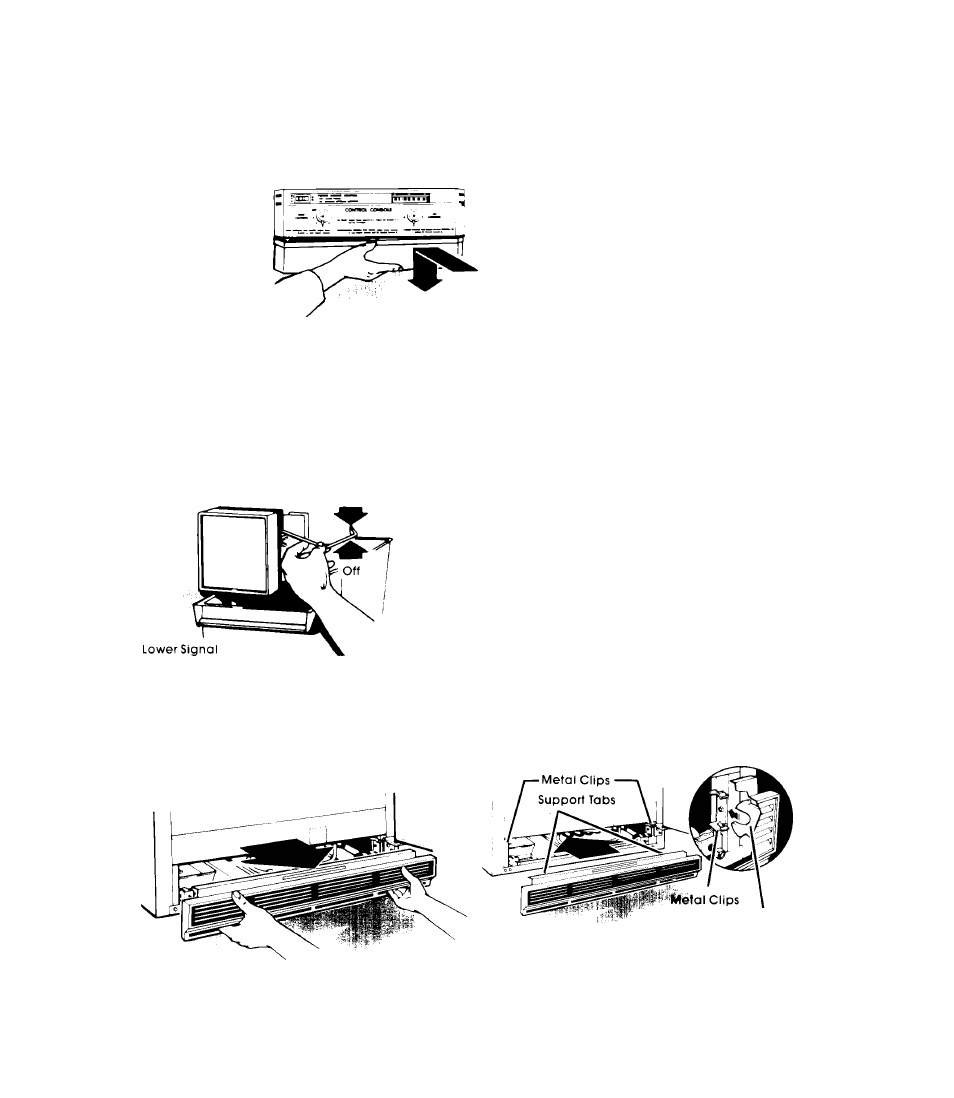

Push in the Center;
Pull Down.
Push lightly on the top center of the light shield until
the notched tab unhooks from the control panel
Pull down on the shield until the tab clears the con­
trol panel
Lift the back hooks out of their slots.
Replace with a 40-watt appliance bulb
Replace light shield in reverse order
Automatic ice maker...
The automatic ice maker is in the freezer section of
your refrigerator. The following things should be known
for proper ice maker use;
• The ON OFF lever is a wire signal arm
Down,,.for making ice automatically
Up,,,to shut oft the ice maker,
• Shake the bin occasionally to keep cuoes sepa­
rated, and to obtain increased storage capachy
On
Arm to Start It
Raise Signal
Arm to Stop Ice Maker
• It IS normal for ice crescents to be aftacheo by a
corner. They will break apart easily
• You will hear water running wnen ice- miaKer s
working. You'll hear ice fall mtc the b-'i Don t ei
these sounds bother you
• The ice maker will not operate until the freezer is
cold enough to make ice. This can take overnight
• Because of new plumbing connections, the first
ce may be discolored or off-flavored Discard the
first few batches of ice
• It ice IS not being made fast enough and more ice
IS needed, turn the Temperature Control toward a
higher number. Wait a day and, if necessary, turn
the Air Control toward A
• If you remove the ice bin, raise the signal arm to
snut off the ice maker. When you return the bin,
push it all the way m and lower the arm to the ON
position
• If cubes are stored too long, they may develop an
off-flavor, .like stale water. Throw them away. They
will be replaced. Cubes in the ice bin can also
become smaller by evaporation.
• Good water quality is important for good ice quality,
h IS not recommended that the ice maker be con­
nected to a softened water supply. Water softener
chemicals such as salt from a malfunctioning soft­
ener can damage the ice maker mold and lead to
poor quality ice. If a softened water supply cannot
be avoided, then it is important that the water soft­
ener be well maintained and operating properly.
Removing the base grille...
' Open the doors.
2, Pull grille outwards as shown
3, Do not remove Tech sheet fas-ened behma gril e
Support Tabs
To replace;
1 Line up grille support tabs with metal clips
2, Push firmly to snap into place,
t Close the doors
