Clarke ® Operator's Manual - CFP Polisher Page - 33 -
Clarke ®
CFP-2000DS

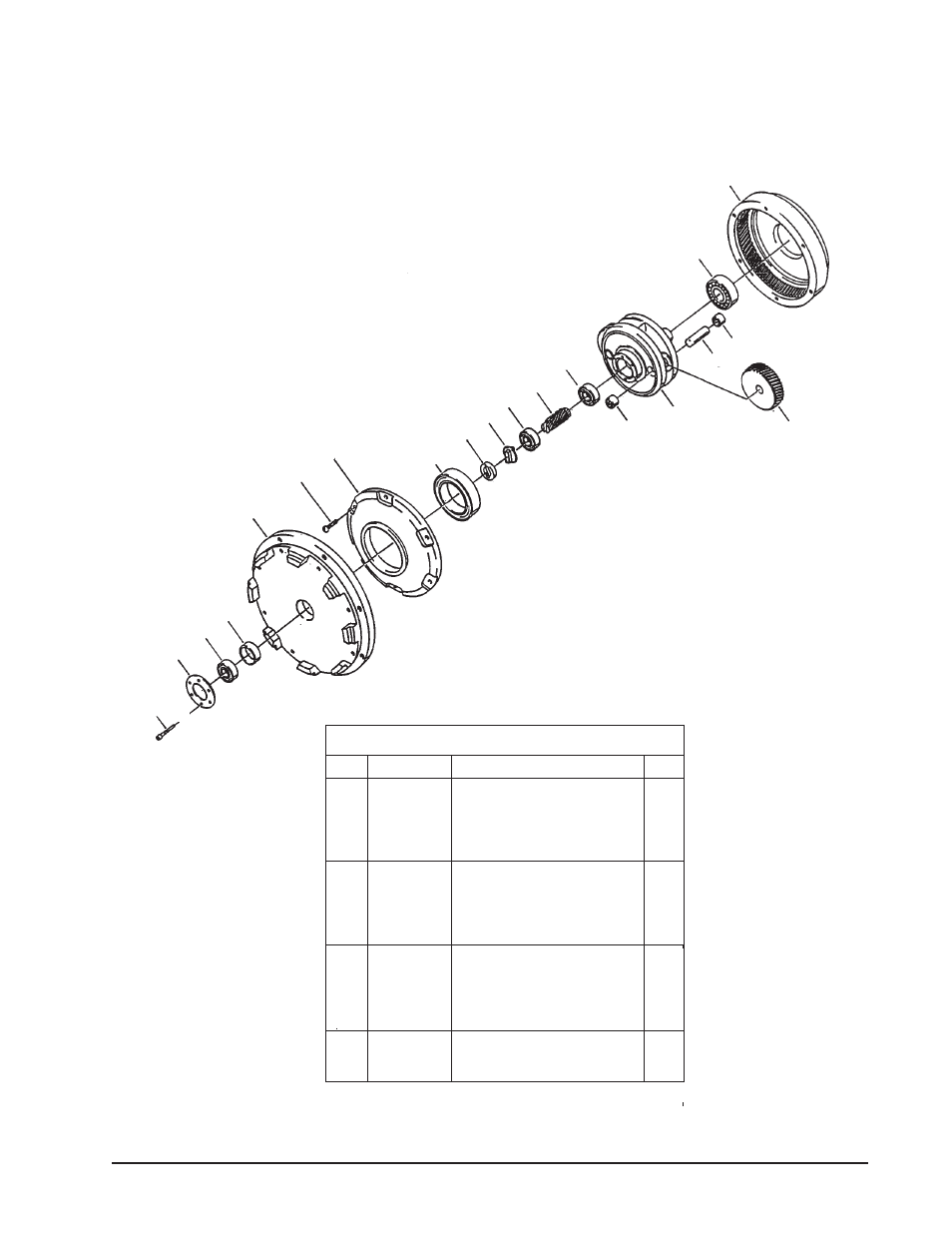

Gearbox Assembly Drawing & Parts List 9/05
Ref Part No. Description Qty.
1 80141A Screw, 10-32 x 1 6
3 56922A Retainer, Bearing 1
4 902606 Bearing, Ball - 6002 3
5 58520A Spacer, Sleeve 1
6 53849A Plate, Mounting 1
7 ‹ 84808A Screw 10-24 x 3/4 6
8 54858A Cover, Housing 1
9 902736 Bearing, Ball- 6010 1
10 58314A Retainer, Shaft 1
11 69195A Coupling 1
12 58313A Gear, Pinion 1
13 902737 Bearing, Needle 6
14 N/A Cage 1
15 54408A Gear, Planet 3
16 58312A Shaft, Planet 3
17 902654 Bearing, Ball- 6204 1
18 54856A Housing, Drive 1
NI 503802 Grease - 14 Ounce Tube (1)
18
17
13
16
15
14
13
4
12
4
11
10
9 8
7
6
5
4
3
1
GEARBOX 53647A
NOTE: Gearbox 53647A uses 8 ounces of grease
NOTE: ‹ indicates a change has been made since the last publication of this manual.
