Clarke ® Operator's Manual - CFP Polisher Page - 29 -
Ref. Part No. Description Qty.
1 21075A Handle, Back 1
2 10687A Module, Interlock 1
3 21074A Handle, Front 1
4 71020A Label, Handle 1
5 80284A Screw, 10-32 x 3/4 6
6 61373A Tube, Handle 1
7 40788A Cord, 14/3 x 50' 1
7A ‹ 467504 Strain Relief (1)
7B ‹ 47711A Terminal FIFQD (2)
8 50781A Clamp, Handle 1
9 40789A Cord, Interconnect 1
10 56057675 Grip, Handle 1
11 441401 Cam, Assembly 1
11A 441301 Bolt, Cam Lock (1)
11B 461404 Cam, Locking (1)
11C 53662A Pin, Coiled (1)
12 980349 Washer, Wear 1
13 920342 Nut, 3/8-16 ESNA 1
14A 71021A Label (CFP-170 120/60) 1
14B 71022A Label (CFP-170 230/50) 1
14C 71023A Label (CFP-1700 120/60) 1
14D 71024A Label (CFP-1700 230/50) 1
14E 71025A Label (CFP-200 120/60) 1
14F 71026A Label (CFP-200 230/50) 1
14G 71027A Label (CFP-2000 120/60) 1
14H 71028A Label (CFP-2000DS 120/60) 1
15 ‹ 80290A Screw, 10-32 x 3/8 5
16 80292A Screw, 1/4-20 x 1 2
17 56201018 Wheel 2
18 980648 Washer, 17/32 x 1 1/16 Plain 2
19 80295A Washer, Bowed 2
20 61741A Link Arm-Right 1
21 61725A Axle 1
22 61740A Link Arm-Left 1
23A Pg. 30,31 Motor/Gbx (CFP-170, 200, 1700, 2000) 1
23B Pg. 32,33 Motor/Gearbox (CFP-2000DS) 1
24A 61716A Drip Cover (CFP-170, 200, 1700, 2000) 1
24B 61717A Drip Cover (CFP-2000DS) 1
25 21088A Mainframe 1
26 73323A Label, Motor Clarke 1
27A 11006A Housing, Assembly (CFP-170, 1700) 1
61715A Housing (CFP-170, 1700) (1)
30381A Bumper (CFP-170, 1700) (1)
27B 11007A Housing, Assembly (CFP-200, 2000) 1
61714A Housing (CFP-200, 2000) (1)
50784A Bumper (CFP-200, 2000) (1)
28 80294A Screw, 5/16 - 18 4
29 53833A Pin, Split 1/2 2
30 ‹ 80291A Washer, Flat #10 1
NI 30638A Pad Driver* (CFP 170, 1700) 1
NI 30639A Pad Driver* (CFP 200, 2000, 2000DS) 1
Clarke ®
CFP 170, 1700, 200, 2000, 2000 DS
Assembly Drawing Parts List 9/05
CFP 170, 1700, 200, 2000, 2000 DS

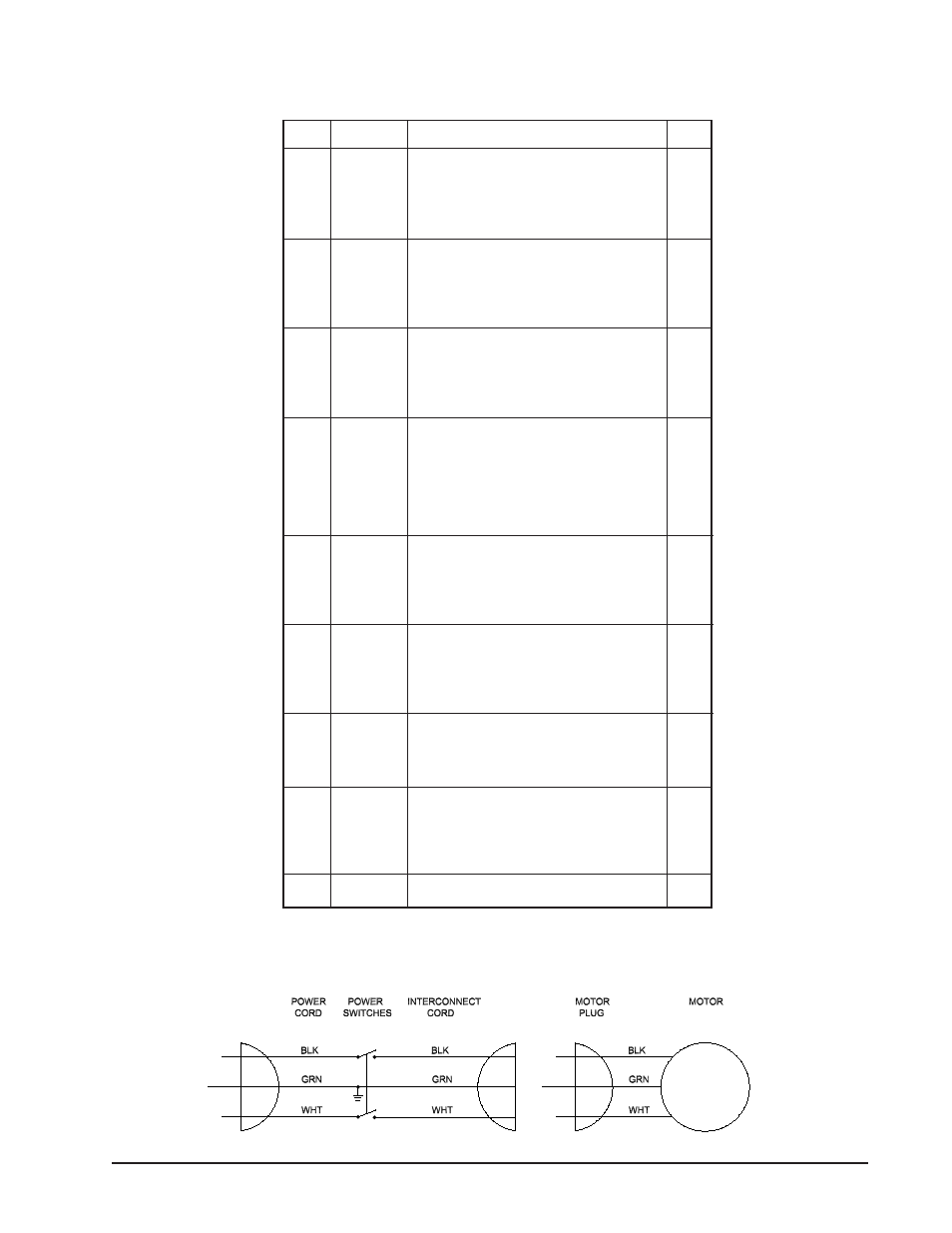

Machine Schematic 7/05
NOTE: ‹ indicates a
change has been made
since the last publication
of this manaul.
* See "Accessories"
