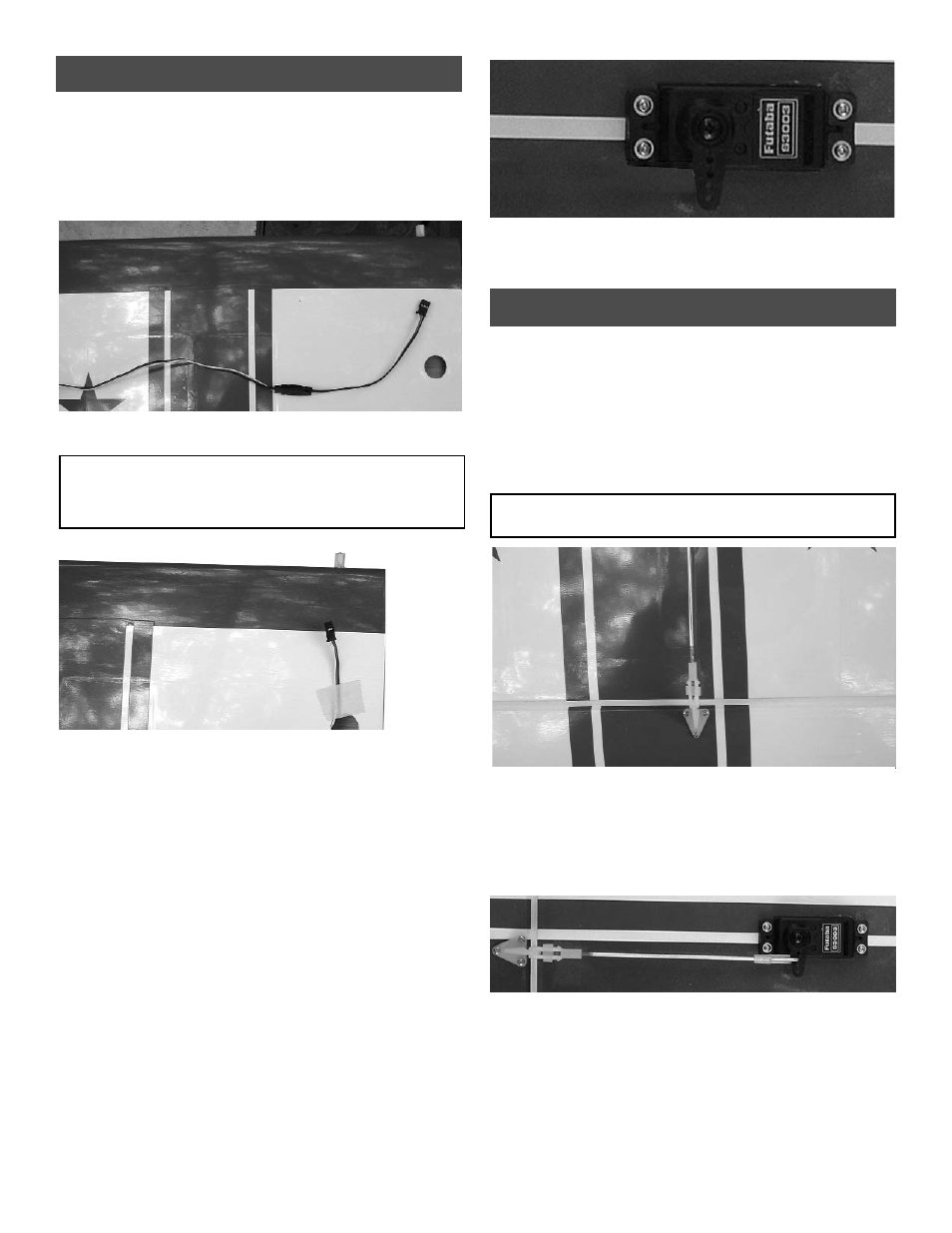

AILERON SERVO INSTALLATION

Collect the following parts:

(1) Left wing

(1) Right wing

(2) Servos

(2) 12” Servo Extension

(1) Servo “Y” Harness

Attach the 12” servo extension to the servo.

IMPO

RTANT! To ensure that any connections locat-

ed inside the wing will not come loose, either when

the wires are pulled, or during flying, always tape

them securely together with electrical tape.

Starting from the servo hole, insert the servo

extension and the servo wire into the servo

hole

Allow the wire to fall straight down through

though the wing till it exits the the hole in the

bottom of the wing at the center

Tape the extension wire to he bottom of the

wing.

Repeat for the other wing half..

Collect the following items:

(2) nylon swing in keepers
(2) 2-56 pushrods threaded one end
(2) 2-56 clevis
(2) silicone clevis retainers

Slide the silicone keeper on the clevis

Screw the 2-56 pushrod into the nylon clevis

so 1/16” of threads extend past the opening

Attach the clevis to the top hole on the aileron

control horn..

Center the aileron servo and make sure the

aileron is aligned with the wing at the root end.

Insert the end of the pushrod into the servo

arm.

Install the nylon swing in keeper to attach the

pushrod.

Repeat for the other aileron.

AILERON SERVOS PUSHRODS

Install the servo into the servo hole and screw

in place using the screws supplied with your

radio

IMPO

RTANT! Check to confirm all control horns are

securely tightened to all control surfaces.
