ASSEMBLY INSTRUCTIONS FOR RDC STANDARD AND EP RACKS

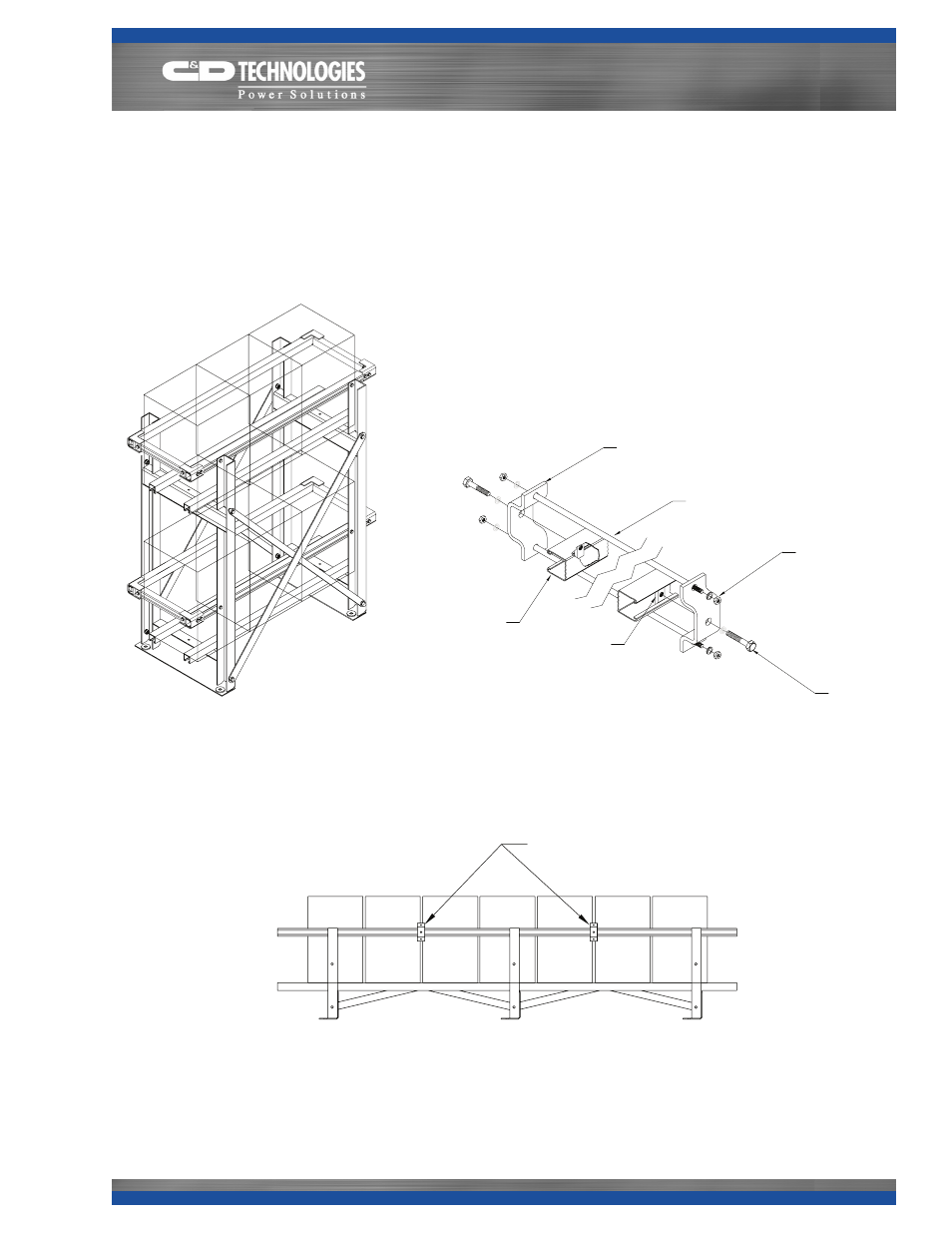

11. Tie Rod Assembly: Longer EP racks require a tie rod

assembly (see rack assembly drawings for details). The tie

rod assemblies (P/N RD02320) are to be placed as evenly

as possible among the batteries per tier (see figure 12 and

figure 13).

12. Battery Arrangement: Install inter-cell and inter-unit

connectors and cable assemblies as determined by the

battery arrangement. Refer to Battery Installation Manual

(RS-1476) for more detail on battery connection and

initialization charge. Follow Battery Installation Manual

RS-1476 for battery installation and operation.

Tie Rod

and Cover

Serrated Nut

3/8-16 Bolt

and Lock Washer

5/16-18 Nut

and Lock Washer

Tie Rod

Bracket

Side Restraint

Rails

Tie Rod Assembly

FIGURE 12

FIGURE 11

FIGURE 13

Assembled EP2 Rack

With Corner Brackets and Front Cross Braces

Tie Rod (P/N RD02320)

Tie Rod Placement

RS02098/1011/CD

6
