ASSEMBLY INSTRUCTIONS FOR RDC STANDARD AND EP RACKS

9.

Front Restraint Rail (EP only): With the batteries in place,

slide the front side support rail and cover up from its resting

location to its mounting location, aligning with rear side

restraint rail. Install hardware and torque to 15-20 ft.-lbs.

[20-27 N-m] See Figure 9.

10. Final Assembly: Install corner brackets, end restraint rails,

and covers. Position end restraint rail against the end battery

unit. See Detail G. Note that the corner bracket may be

reversed by 180° if required. When the corner bracket

Corner Bracket

Location

Corner Bracket placement when

end restraint rails are within the frame

End Restraint

Rail and Cover

3/8-16 Hex Bolt

and Lock Washer

Side Restraint

Rail and Cover

Serrated Nut

Corner Bracket

Assembled

Side Restraint

Rail and Cover

Support Rail

and Cover

End Restraint

Rail and Cover

End Rail Restraint Rail(s)

and Corner Brackets

assembly is reversed, the end restraint rail is attached to the

opposite side of the corner bracket. When reversed the

corner bracket is able to slide inside the frame uprights

(See Detail H).

Install all front cross braces if indicated by rack assembly

drawing. Torque to 55-65 ft.-lbs. [75-80 N-m] See Figure 11

for final rack assembly.

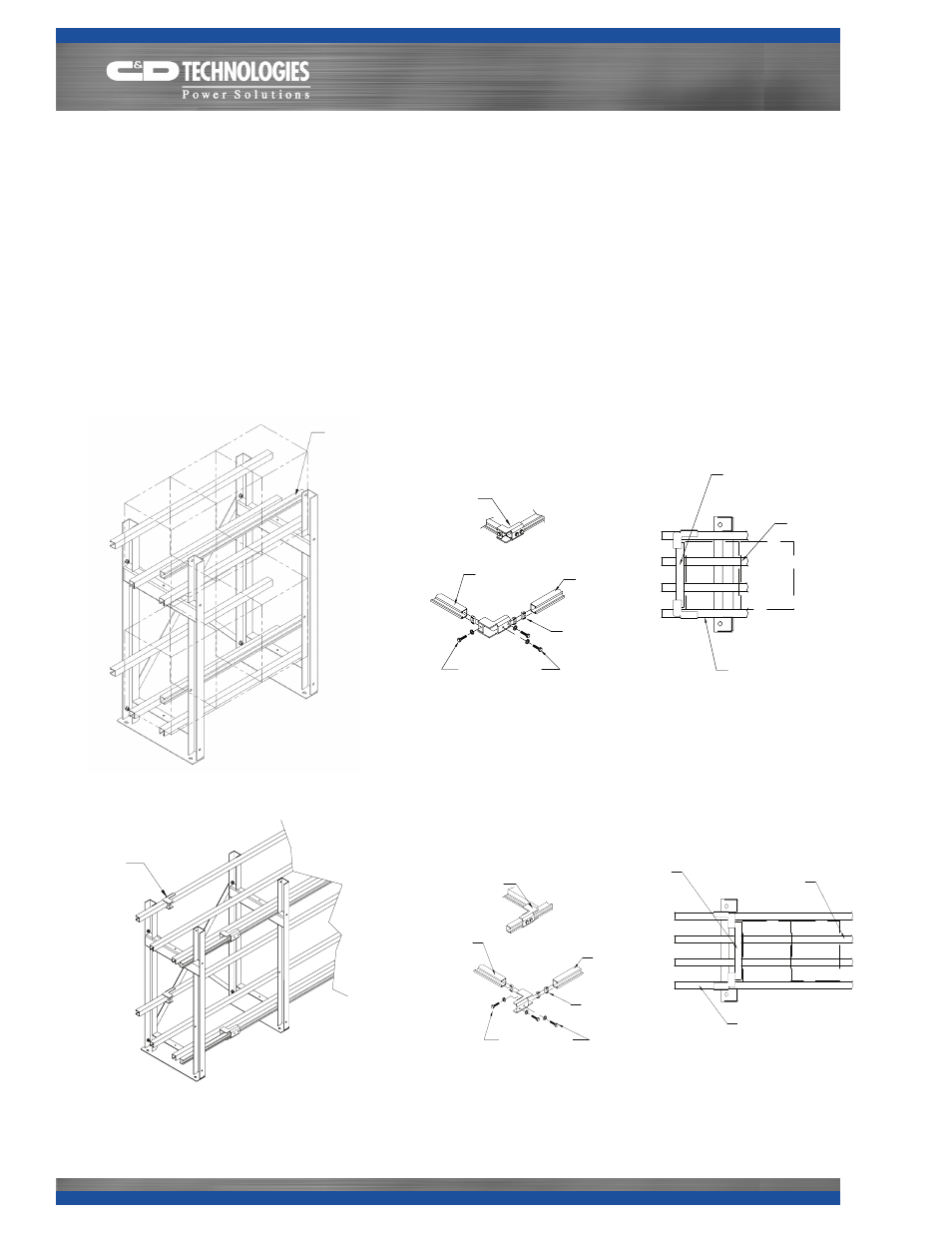

FIGURE 9

DETAIL G

FIGURE 10

DETAIL H

Front Restraint
Rails & Cover
Installed

End Rail Restraint and

Corner Bracket Reversed

End Restraint

Rail and Cover

3/8-16 Hex Bolt

and Lock Washer

Side Restraint

Rail and Cover

Serrated Nut

Corner Bracket

Assembled

Side Restraint

Rail and Cover

Support Rail

and Cover

End Restraint

Rail and Cover

End Rail Restraint Rail(s)

and Corner Bracket Reversed

RS02098/0114/CD

5
