RS 1942

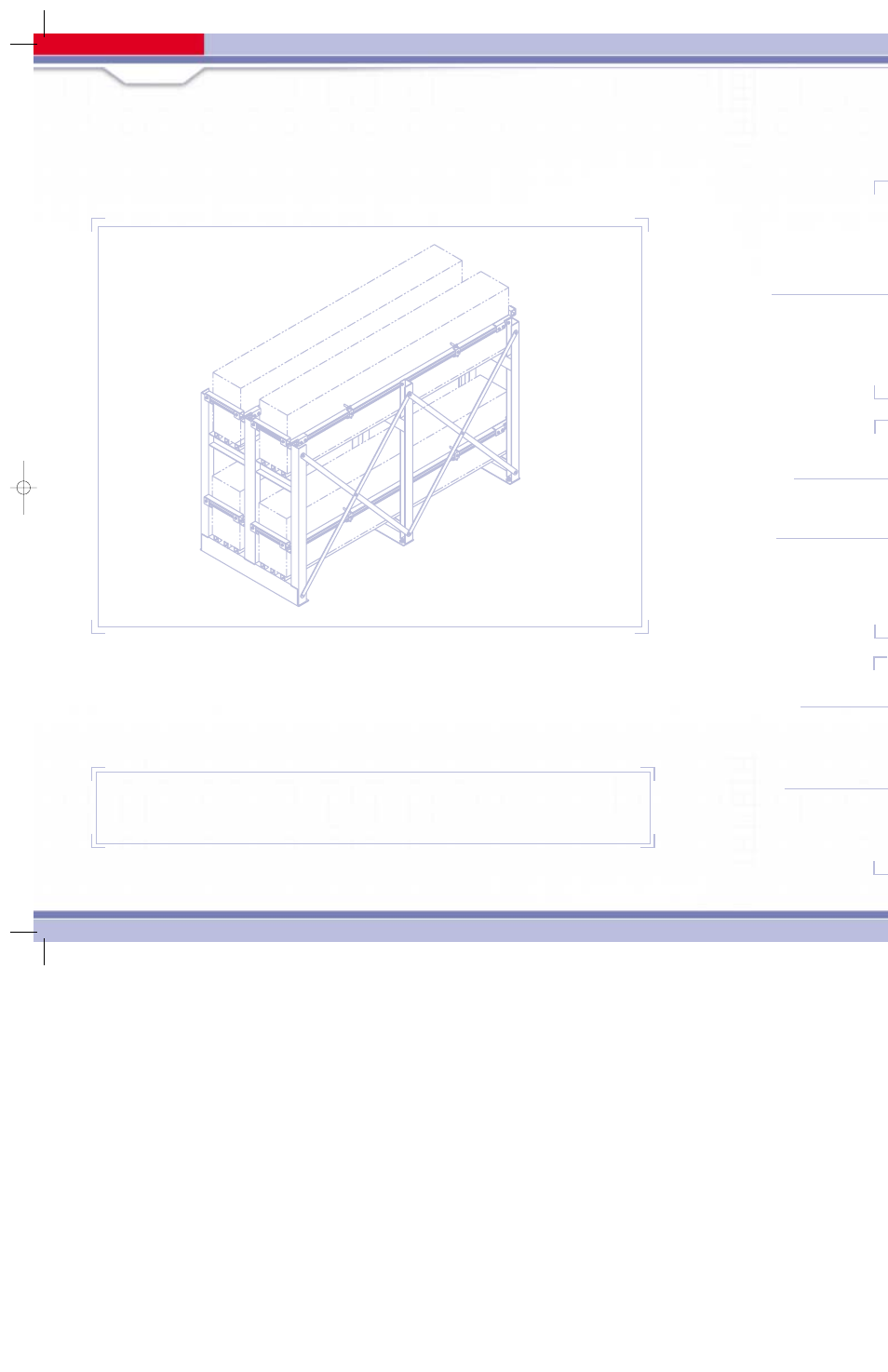

FIGURE #11

Completed Rack Assembly.

12

Install Front Cross Braces:

Install front cross braces for single row rack and front & rear cross braces for double

row racks. Note that the center bolt must be inserted into the brace from the battery side. If installed incorrectly the
bolt may puncture the battery container during a seismic occurrence. See Figure #11 Details #1 and #3.

13

Batterty Arrangement:

Install inter-cell and inter-unit connectors and cable assemblies as specified by the battery

arrangement. Refer to battery installation manual for more detail on battery connections.

ADDITIONAL INSTRUCTION FOR MULTI-RACK ARRANGEMENTS

Back to Back Assembly: Single row racks which are installed in an back to

back arrangement should be spaced a minimum of 2” apart.

Typical Bolted Connections:

Thes

Use torque values from Table #2. F

CONNECTION DETAILS FOR

Nut, 1/2-13

Frame, Typical for
Both Side Restraint
and Bottom Rails

Serrated Nut

Bolt, 3/8-16 x 1.00
Note: Bolt head must
be facing Battery

3/8 Lock washer
