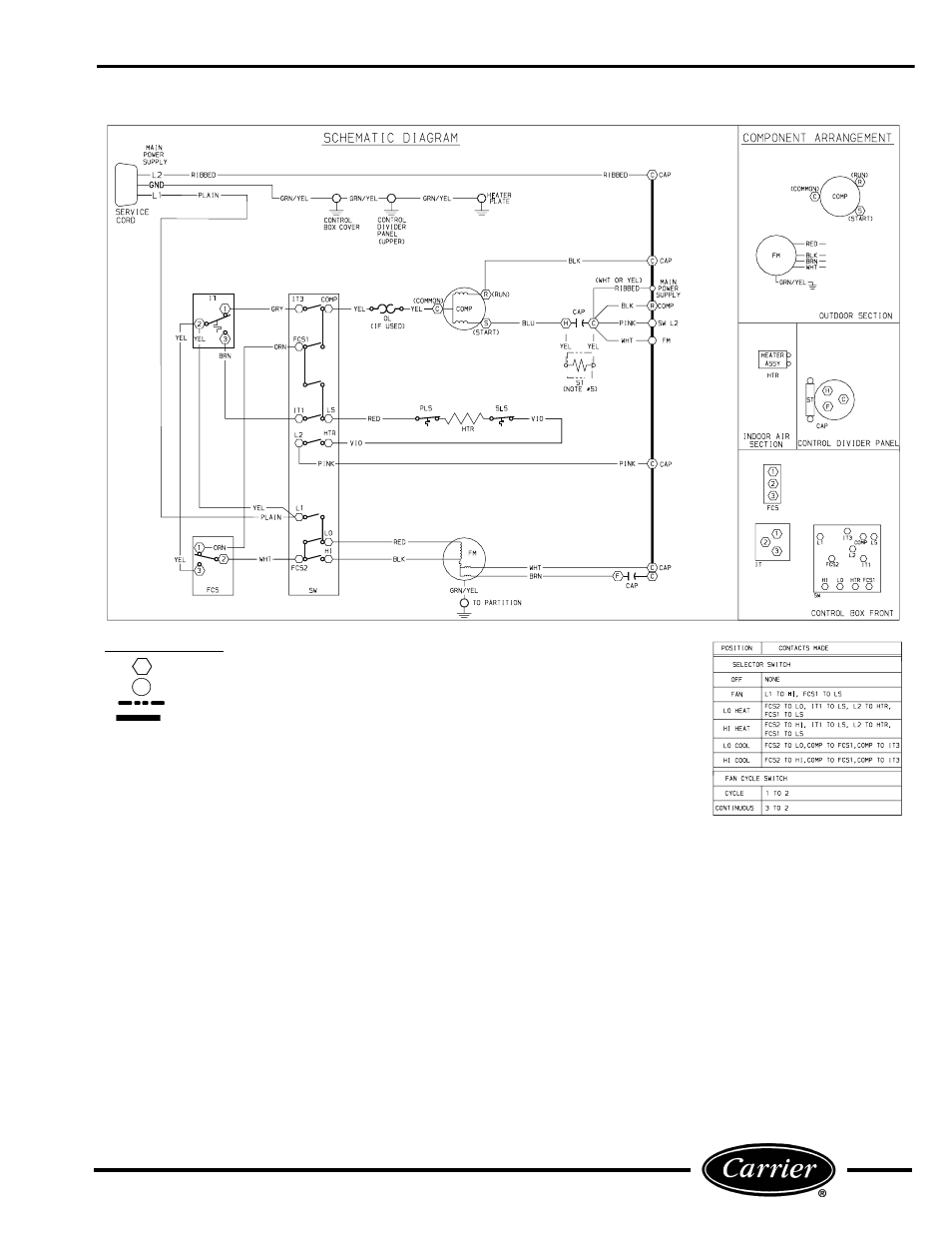

FIGURE 70 — 52CE AND 52PE — TYPICAL WIRING SCHEMATIC FOR

STANDARD HEAT/COOL UNITS

COMPONENT LEGEND

Component Connection (Marked)

Component Connection (Unmarked)

Accessory or Optional Wiring
To Indicate Common Potential Only
Not To Represent Wire

CAP

Capacitor

COMP

Compressor

FM

Fan Motor

FCS

Fan Cycle Switch

HTR

Heater

IT

Indoor Thermostat

NEC

National Electrical Code

OL

Overload

PLS

Primary Limit Switch

SLS

Secondary Limit Switch

ST

Start Thermistor

SW

Switch

NOTES:

1. Recommended for use on grounded power sup-

ply only.

2. Compressor and fan motor thermally protected.
3. Use copper conductors only.
4. All wiring must conform with NEC and local

codes.

5. Dashed lines indicate components when used.
