12’ STALL WOOD CHART
Ref. Wood Size Stall - Qty. Door - Qty.
A 2” x 6” x 47½” 6 7
B 2” x 8” x 23” 3 - - -
C 2” x 8” x 21¼” 1 - - -
D 2” x 8” x 35½” 2 - - -
E 2” x 8” x 35½” 2 - - -
F 2” x 8” x 47½” 1 1
1. Install customer supplied wood into the bottom of the stall using the cut size and board
placement chart below.
2. Place the Swing Out Door into place. At the same time, install board C.
3. Use customer supplied 3/8” wood screws and fasten the feeder in place.
4. Optional reinforcement plate can be used to help secure the feeder in place. If used, drill holes
through the wood and attach feeder frame and reinforcement plate with 3/8” x 2” bolts and nuts
supplied in the hardware bag.

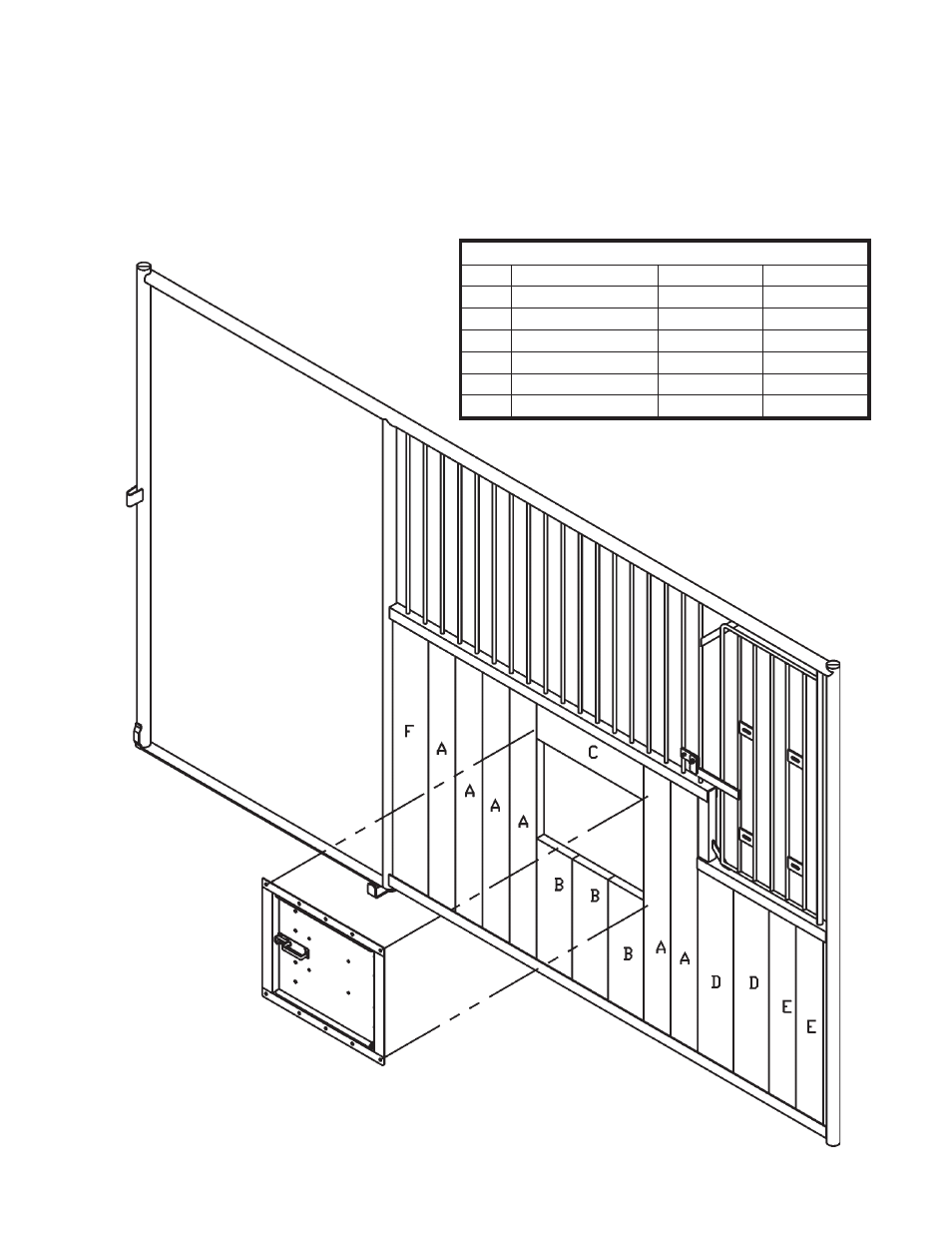

12’ Horse Stall Front
with wood installed
F-19664-1 Rev. 11-29-01 11-21-00
