Illustration “a – Behlen 62074472 User Manual
Page 4

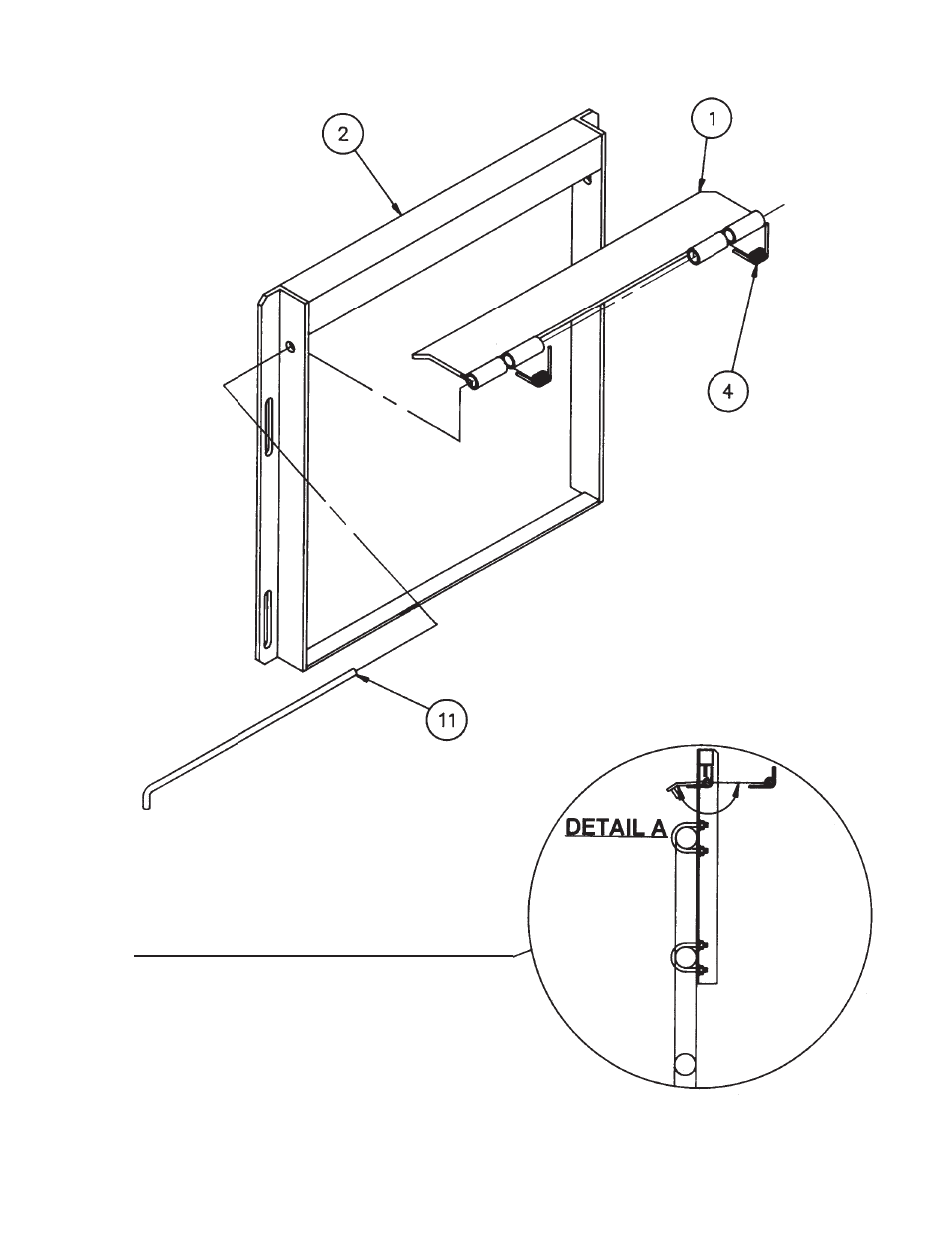

ILLUSTRATION “A”
NOTE:
This is a side view showing the latch bracket
mounted to a corral panel. The illustration also shows
how to install the latch and torsion springs.
The springs will prevent the latch from hanging
vertically after it has been installed onto the latch
bracket. Rotate the latch back from the other way, as
the arrow is showing, to form the legs of the spring
straight. The latch should hang vertically after the
procedure is completed.
F-18350
7-15-95
