Installation
1. Turn off the PC/DVD player and monitors.
2. Connect the S-Video male extension cable between the
PC/DVD player and the “S-Video In” port of Distribution
Amplifier.
3. Connect the S-Video male/female extension cables
between the monitors and the “S-Video Out” ports of
Distribution Amplifier.
4. Connect the power cord and turn on the Distribution
Amplifier.
5. Turn on the PC/DVD player and monitors.

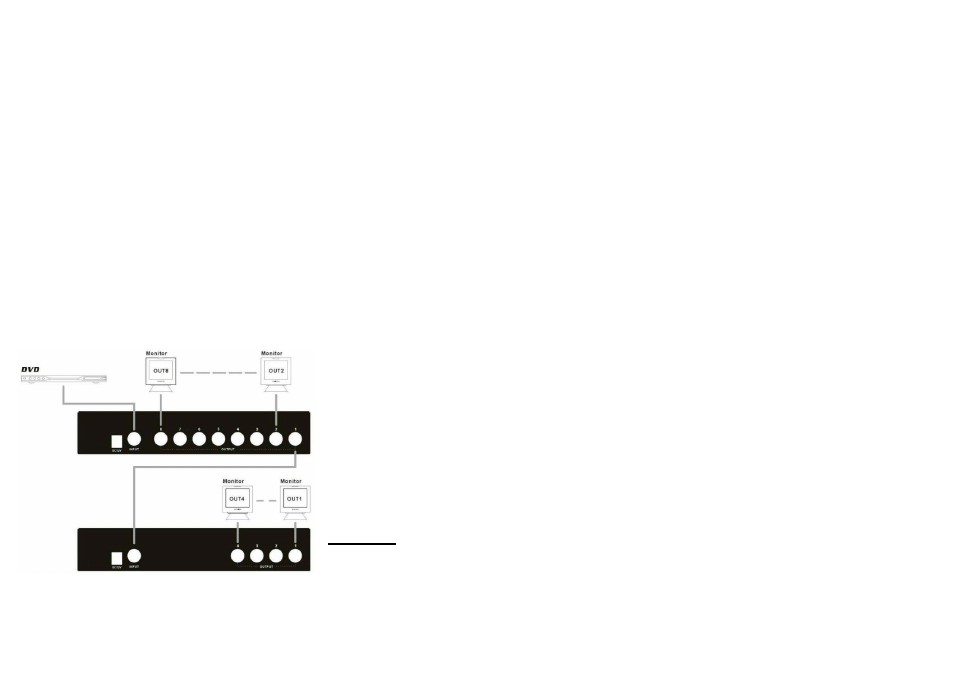

Operation for cascade:
1. The function to display identical image on more monitors,
you have to attach another Distribution Amplifier.
2. Connect the S-Video male/female extension cable
between the former Distribution Amplifier of the “S-Video
Out 1” port and the latter Distribution Amplifier of the
“S-Video In” port.
Note:
Even though you are allowed to cascade the Distribution
Amplifier with varied ports, the image might become
unstable if cascade too many tiers of Distribution Amplifier.
P.S.: The example cascades the 4 and 8 ports Distribution
Amplifier; however, you can cascade the S-Video
Distribution Amplifier with demanded port.
