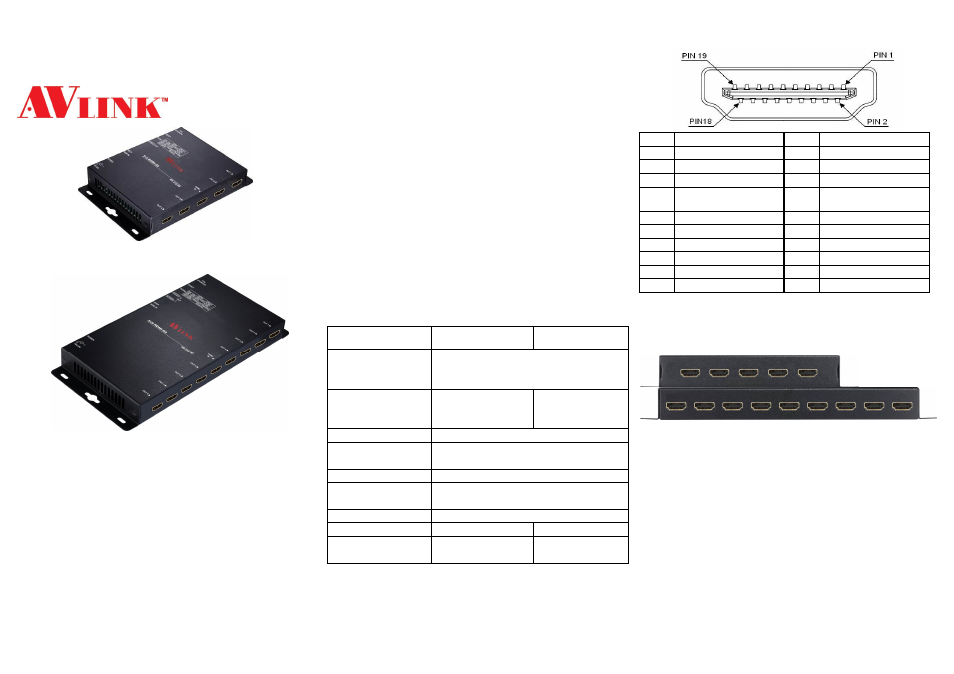

Avlink HS-1418W User Manual
Hdmi distribution amplifier, Introduction, Features

HDMI
Distribution
Amplifier
(HS-1414W)
1 In 4 Out
(HS-1418W)
1 In 8 Out
U
SER
M
ANUAL
V1.0
HS-1414W / HS-1418W
Package Contents-
1 AVLINK HS-1414W or HS-1418W HDMI Distribution
Amplifier
1 user manual
1 power adapter DC 12V with lock
2 screws
4 foot pads
Anything missed, please contact with your vendor.
Introduction
Through the HDMI Distribution Amplifier, you can use one
DVD player/TV receiver to display identical image on 4,8
projectors or HDTV by HDMI port.
HDMI Distribution Amplifier is ideal for:
Test bench facilities
Data Center
Help desks
Features
Supports 3D
HDCP Compliant
Compliant with the specification of HDMI
Support high-resolution display up to
1080p@60Hz(12-bit)
DDC copy from port 1
Can be cascaded
CEC Bypass port 1
Specifications
Function
HS-1414W
HS-1418W
HDMI Input
Connector
(A-Type Female)
1
HDMI Output
Connector
(A-Type Female)
4
8
Max. Resolution
1080p@60Hz(12-bit)
Cable Distance
(Device to Monitor)
10 m (Max.)
Signal Type
Standard HDMI Signal
Power Adapter
(Min.)
DC 12V
Housing
Metal
Weight
620 g
655 g
Dimensions
(LxWxH)
171x120x25 mm 240x120x25mm
-1-
Technical Specifications
Input/Output Signal
Pin #
Signal
Pin #
Signal
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock -
3
TMDS Data 2-
13
CEC
4
TMDS Data 1+
14
Reserved
(N.C. on device)
5
TMDS Data 1 Shield
15
SCL
6
TMDS Data 1-
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5 Power
9
TMDS Data 0-
19
Hot Plug Detect
10
TMDS Clock+
FRONT VIEW
1. “HDMI In” Port
2. “HDMI Out” Port
-2-
