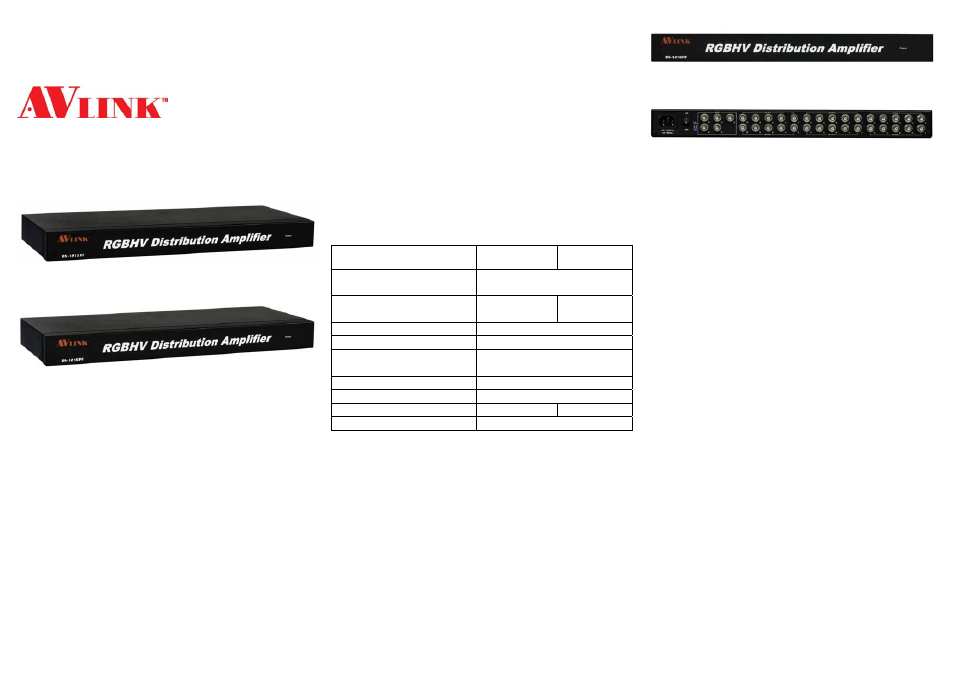

Avlink BS-1216PF User Manual
Rgbhv distribution amplifier, Introduction, Features

RGBHV
Distribution
Amplifier
(BS-1213PF)
1 In 3 Out
(BS-1216PF)
1 In 6 Out
USER
M
ANUAL
V1.0
BS-1213PF / BS-1216PF
Package Contents-
1 AVLink BS-1213PF or BS-1216PF RGBHV
Distribution Amplifier
1 user manual
1 AC power cord
2 rack rails, 6 screws
Any thing missed, please contact with your vendor.
Introduction
Through the RGBHV Distribution Amplifier BS-1213PF,
BS-1216PF, you can use one PC or DVD player or VCR
to display identical image on 3,6 HDTV monitors or even
more.
Features
Bandwidth 500 MHz (-3db).
Compatible with RGBHV, RGsB, RsGsBs, component
video, S-Video and composite video signals.
AC/DC coupling per input.
Long cable gain offset.
1U rack design.
Specifications
Function BS-1213PF
BS-1216PF
Video Input Connector
Set (RGBHV) BNC Female
1
Video Output Connector
Set (RGBHV) BNC Female
3 6
Max. Resolution
2048 x 1536 60 Hz
Bandwidth
500 MHz (-3db)
Cable Distance
(Device to Monitor)
65 m (213 feet) Max.
Power Adapter (Min.)
AC 100~240V / 50~60Hz
Housing Metal
Weight 2450g
2540g
Dimensions (LxWxH)
440x192x42mm
-1-
F
RONT VIEW
1. Power LED
R
EAR VIEW
1. Input AC Power Socket
2. Power Switch
3. AC/DC coupling and GAIN Switch
Pin1 is AC/DC coupling Switch, “ON” for AC
Pin2 is GAIN Switch
4. “RGBHV In” Port
5. “RGBHV Out” Port
*There are 3/6 out ports for BS-1213PF / BS-1216PF.
Installation
1. Turn off the PC or DVD player or VCR and HDTV
monitors.
2. Connect the RGBHV male extension cable between
the DVD player or VCR and the “RGBHV In” port of
BS-1213PF / BS-1216PF.
3. Connect the RGBHV male extension cables between
the HDTV monitors and the “RGBHV Out” ports of
BS-1213PF / BS-1216PF.
4. Connect the power cord and turn on the BS-1213PF /
BS-1216PF.
5. Turn on the PC or DVD player or VCR and HDTV
monitors.
Note:
If the supply signal is component or composite, then
must project on the AC coupling input.
-2-
