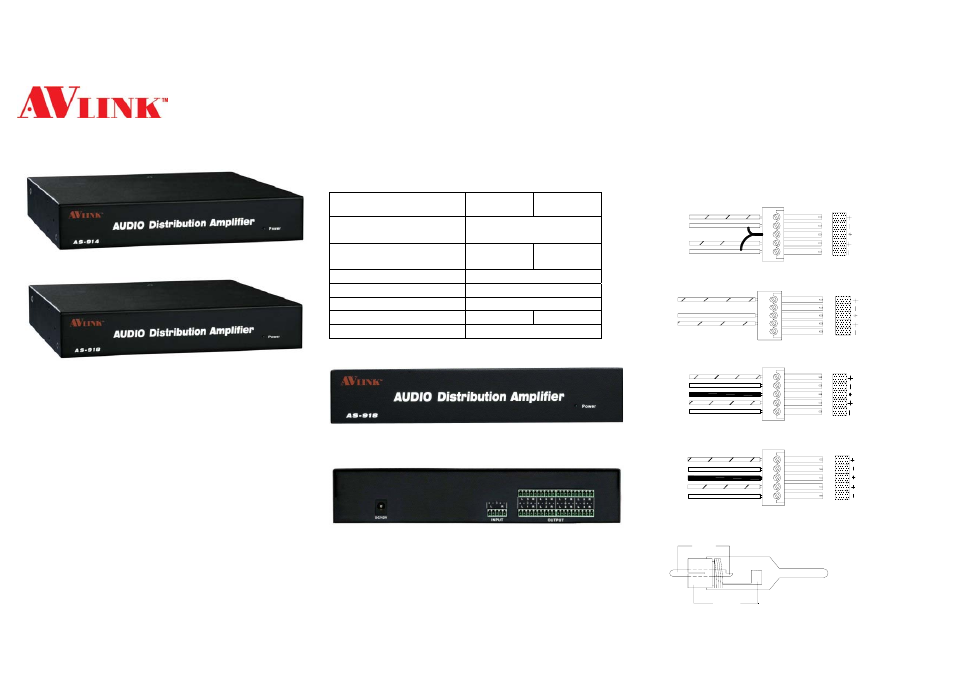

Avlink AS-918 User Manual
Audio distribution amplifier, User manual, Introduction

AUDIO
Distribution
Amplifier
(AS-914)
(AS-918)
USER MANUAL
V1.0
AS-914/AS-918
Package Contents-
1 AVLINK AS-914 or AS-918 Audio Distribution
Amplifier
1 user manual
1 power adapter DC 12V 600mA
2 rack rails, 6 screws
5 captive screw connectors for AS-914
9 captive screw connectors for AS-918
If anything is missing, please contact your vendor.
Introduction
Through the Audio Distribution Amplifier AS-914, AS-918,
by virtue of the audio of sound system from the DVD
player, can drive 4,8 speakers or sound system.
Features
Audio Frequency Response 20Hz~20KHz.
Input impedance >10kΩ.
1U 1/2 rack design.
Specifications
Function AS-914
AS-918
Audio In Connector
(Balanced Stereo)
1
Audio Out Connector
(Balanced Stereo)
4 8
Frequency Response
20Hz~20KHz
Power Adapter (Min.)
DC 12V 600mA
Housing Metal
Weight
665 g
700 g
Dimensions (LxWxH)
220x116x41 mm
FRONT VIEW
1. Power LED
REAR VIEW
1. Power Jack
2. Audio Input
3. Audio Output
*There are 4/8 out ports for AS-914 / AS-918.
-1-
Installation
1. Turn off the DVD player and speakers or sound system.
2. Connect the captive screw connectors male extension
cable between the DVD player and the “Audio Input”
ports of AS-914 / AS-918.
3. Connect the captive screw connectors male extension
cables between the speakers and the “Audio Output”
ports of AS-914 / AS-918.
4. Connect the power adapter and turn on the AS-914 /
AS-918.
5. Turn on the DVD player and speakers or sound system.
Installing Audio Connectors
(A)
(B)
(C)
(D)
RCA CONNECTOR
TOP
GND
-2-
T O P
T O P
G N D
AUDIO
L
R
U n b a la n c e d O u tp u t
S e e w a r n
S e e w a r n
TOP
TOP
GND
GND
AUD
IO
L
R
Unbalanced Input
T O P
T O P
G N D
AUDI
O
L
R
Balanced Intput
L O O P
L O O P
TOP
TOP
GND
AUD
IO
L
R
Balanced Output
LOOP
LOOP
(E)
