TV Operation
AV INPUT Connection
NOTE: All cables shown are not included with the TV.
- Connect the VIDEO /S-VIDEO and AUDIO output jack of the DVD or VCR to
the AV IN jacks on the set with RCA cable.
- Match the jacks colors: Video=yellow,
Audio left=white, and Audio right=red.
- Select the AV/S-VIDEO input source with INPUT button.
1. Connect the YPbPr connector on the external video device to the scart connector
on the LCD TV using a scart cable.
- YPbPr connector supports YPbPr functions ( CVBS, RGB input / output, TV out ).
2. Press INPUT button on the remote control to select YPbPr which corresponds with
your connection.

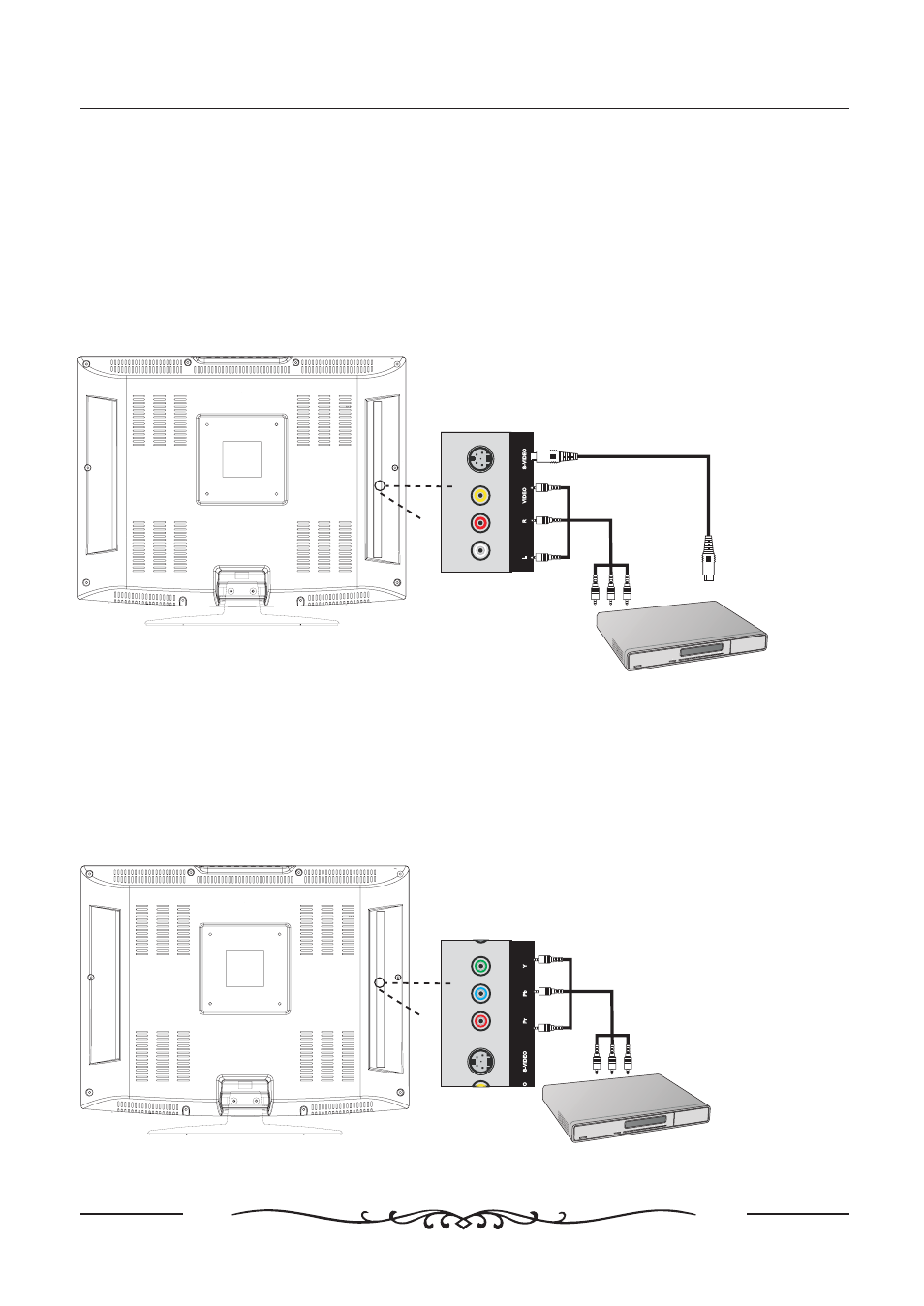

YPbPr INPUT Connection YPbPr INPUT Connection
S-VIDEO Cable
VIDEO Cable
DVD or VCR
YPbPr Cable
DVD or VCR
