Plug and play – AOC D2769VH User Manual
Page 63

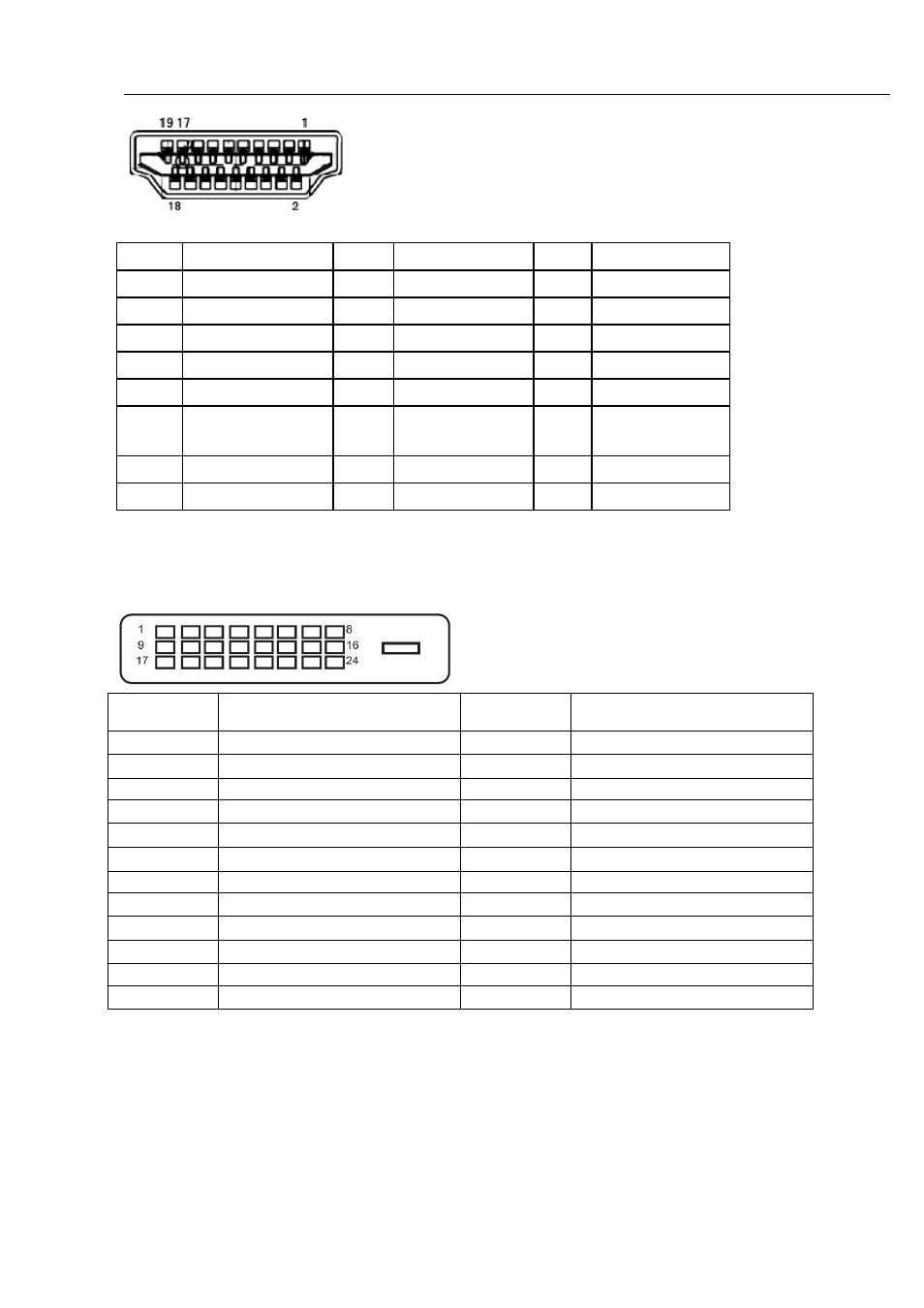

Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
9
TMDS Data 0
17
DDC/CEC Ground
2
TMDS Data 2 Shield
10
TMDS Clock +
18 +5V Power
3
TMDS Data 2
11
TMDS Clock Shield
19 Hot Plug Detect
4
TMDS Data 1+
12
TMDS Clock
5
TMDS Data 1Shield
13
CEC
6
TMDS Data 1
14
Reserved (N.C. on
device
7
TMDS Data 0+
15
SCL
8
TMDS Data 0 Shield
16
SDA
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1
TMDS data 2－
13
TMDS data 3＋
2
TMDS data 2＋
14
＋
5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4－
16
Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6
DDC Clock
18
TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8
N.C.
20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10
TMDS data 1＋
22
TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
