Pin function 1 ground 2 data- 3 data, Instructions of dmx control – Antari LCU-1 User Manual
Page 7
￭
DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection.

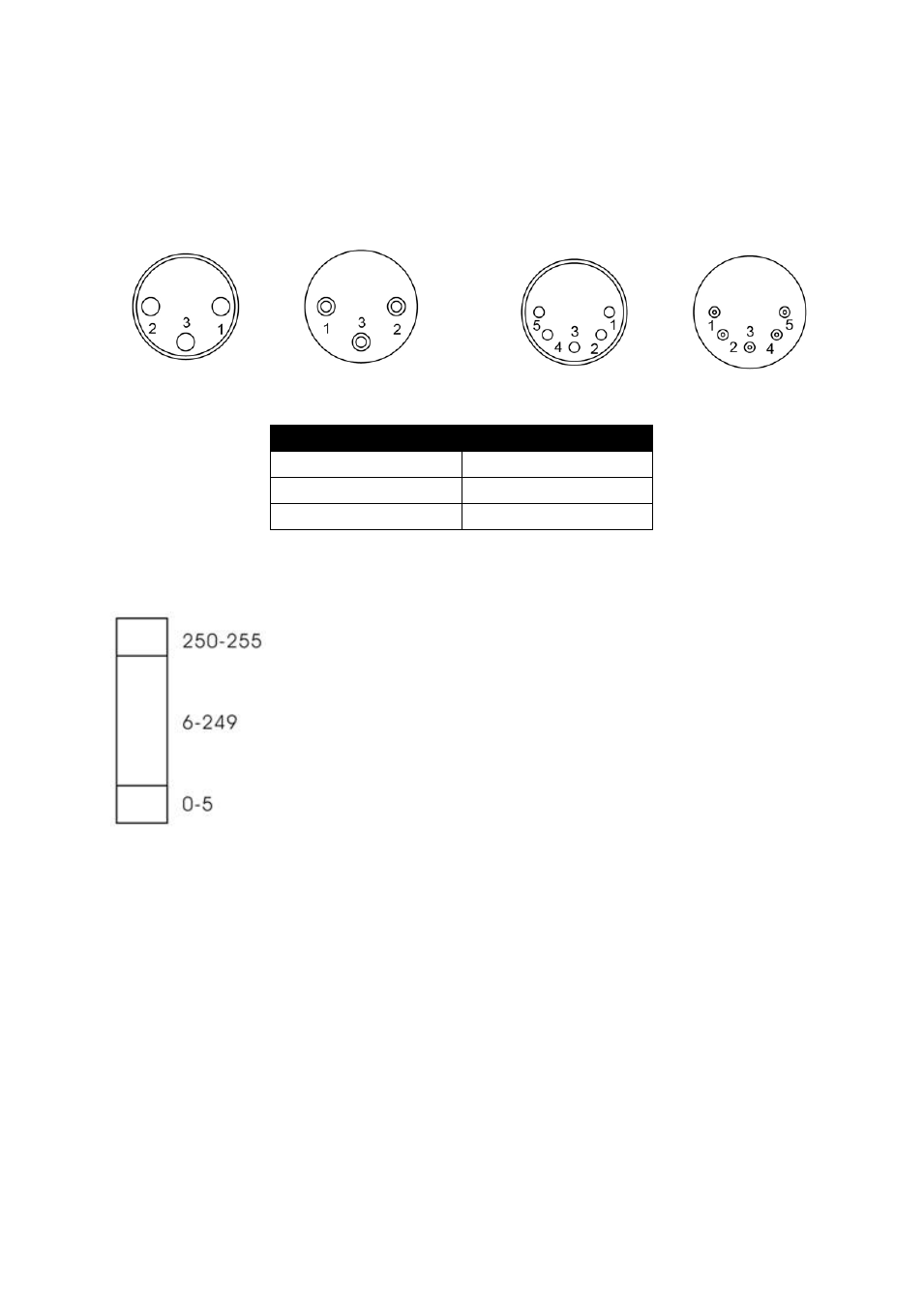

Diagram below indicate pin assignment information
3 Pin XLR 5 Pin XLR
Pin
Function
1
Ground
2
Data-
3
Data+
Instructions of DMX Control:
DMX Value 0 - 5 = The Unit is OFF
DMX Value 6 – 249 = Volume Control (5% - 95%)
DMX Value 250 – 255 = Maximum Volume Output (100%)
