If Channel A has a value from 0 to 128, the unit is OFF.
Between the values 129 to 255 the volume of fog output is is at maximum.
Note: In the example above, if the machine were assigned the DMX address of 130, Channel A would
correspond to DMX address 130.
In general, Antari fog machines with onboard DMX conform to the following performance specifications:
1. Average Operating temperature = 250ºC
2. Fogger can maintain maximum output for 30 seconds or more
Addressing
Each device occupies 1 channel. To ensure that the control signals are properly directed to each device, they
require adressing. This is to be adjusted for every single device by changing the DIP-switches as set out in the
table below.
The starting address is defined as the first channel from which the device will respond to the controller.
Please make sure that you do not have any overlapping channels in order to control each device correctly and
independently from any other fixture on the DMX data link. If two, three or more devices are addressed
similarly, they will work similarly.

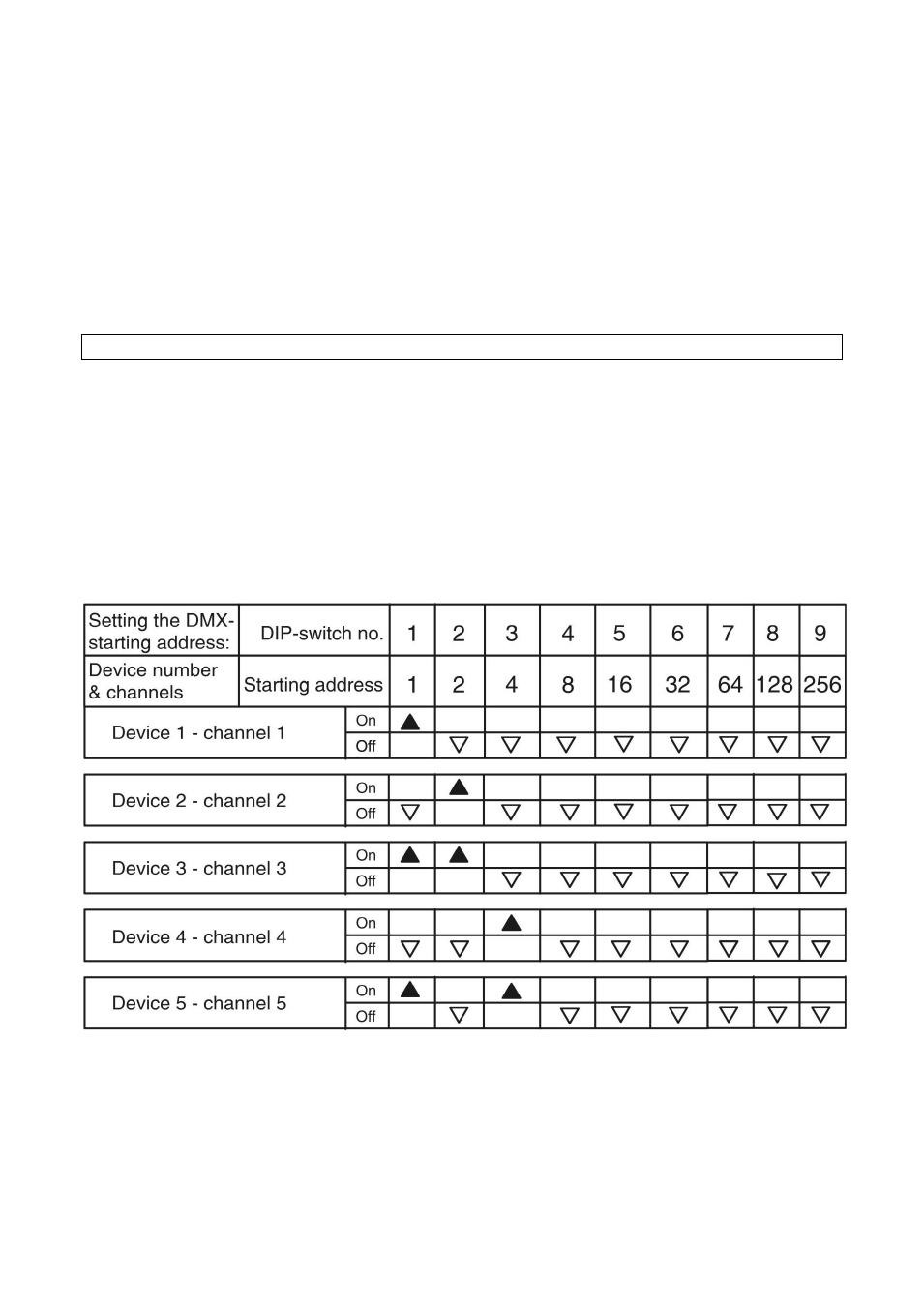

Occupation of the DIP-switches:
