2. It is strongly recommended to test-run the machine on a monthly basis in order to achieve its best fogging
condition. A test-run consists of warming up the machine followed by a few minutes of emission. After that,
follow Step 1 under Storage.
Please read and save these instructions.

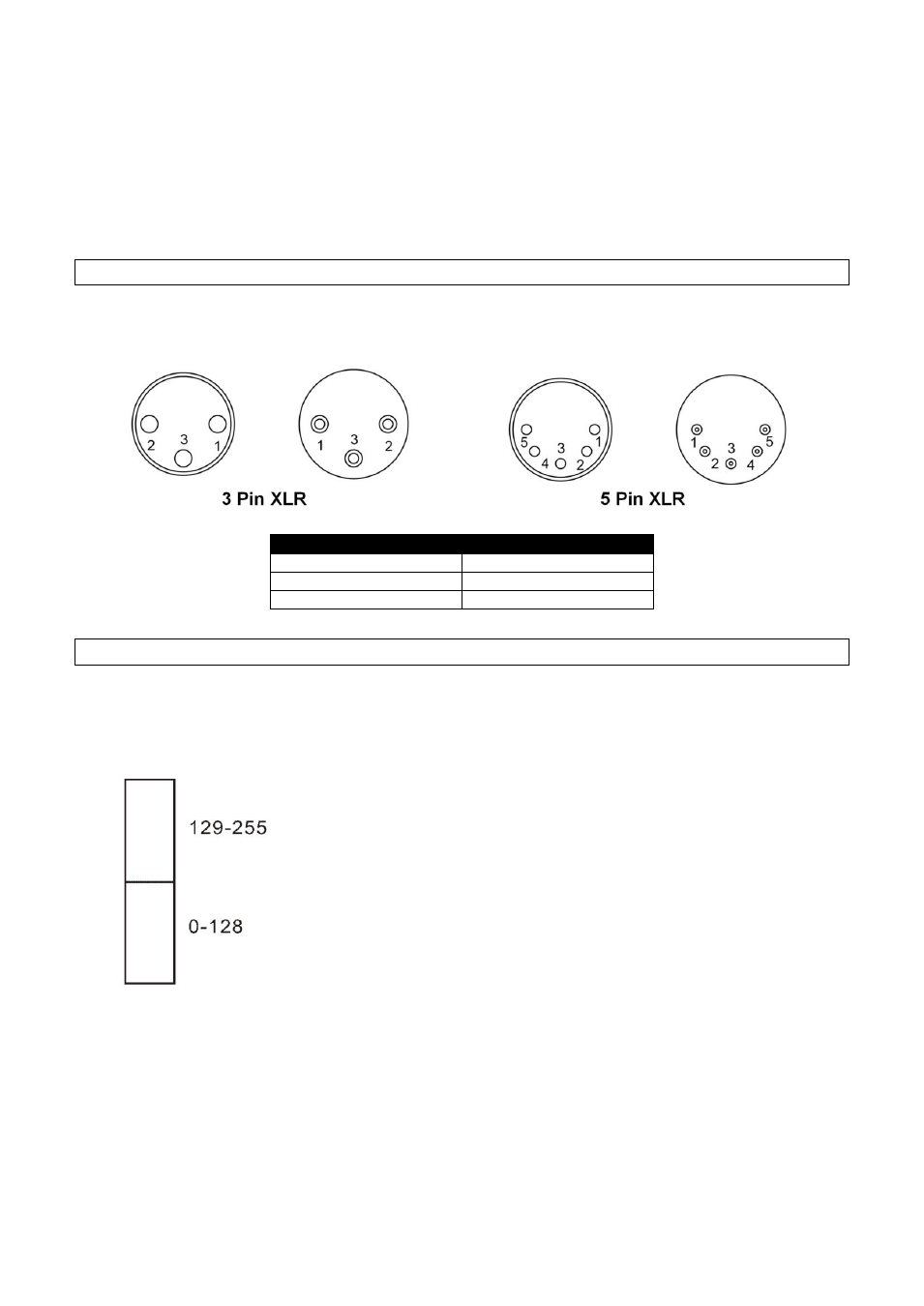

DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin assignment
information
Pin Function
1 Ground
2 Data-
3 Data+
Antari Z-1000II & Z-1020 on-board DMX Fog Machine Settings
DMX Setting for Z-1000II and Z-1020 fog machines with on board DMX
Channel A
0 - 128 = OFF
129
– 255 = Maximum Volume Output (100%)
The Z-1000II and Z-1020 Fog Machine have on-board DMX control except on Z-800II. These two models
use 1 channel to control on/off operation. Each channel has a value range of 0 to 255. On/Off function
can be programmed using the DMX controller or the DMX control software being
used by lighting and effects operator.
