Core Operation

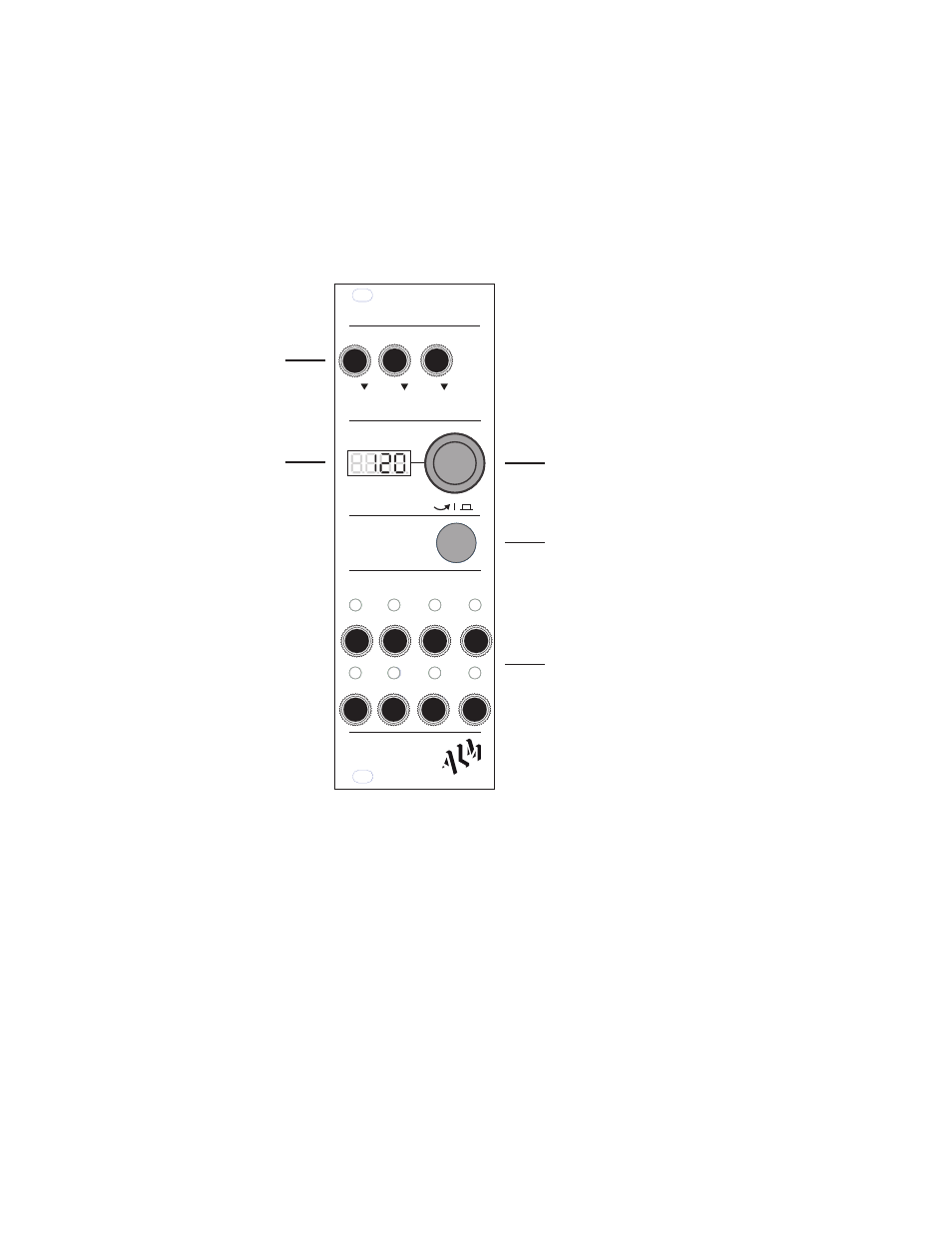

Panel Layout
Setting Core Tempo
When initially powered on Pamela's Workout LED info display shows the current
clock tempo setting in beats per minute (BPM). Twisting the program knob adjusts this
BPM value between its maximum and minimum values.
Clicking the 'Start / Stop' button starts the clock with this selected BPM tempo
shown on the display. With the clock now running, timed trigger pulses are sent
“Pamela’s
Workout
”
Trigger Outputs
1
2
3
4
5
6
7
8
Start / Stop
Program
Inputs
Cl
oc
k
Ru
n
Te
m
po
0-5v
Voltage control inputs
LED info display
Program knob
(Twist & Push)
Start/Stop Button
Trigger outputs
ALM-001 - ‘Pamela’s Workout’
