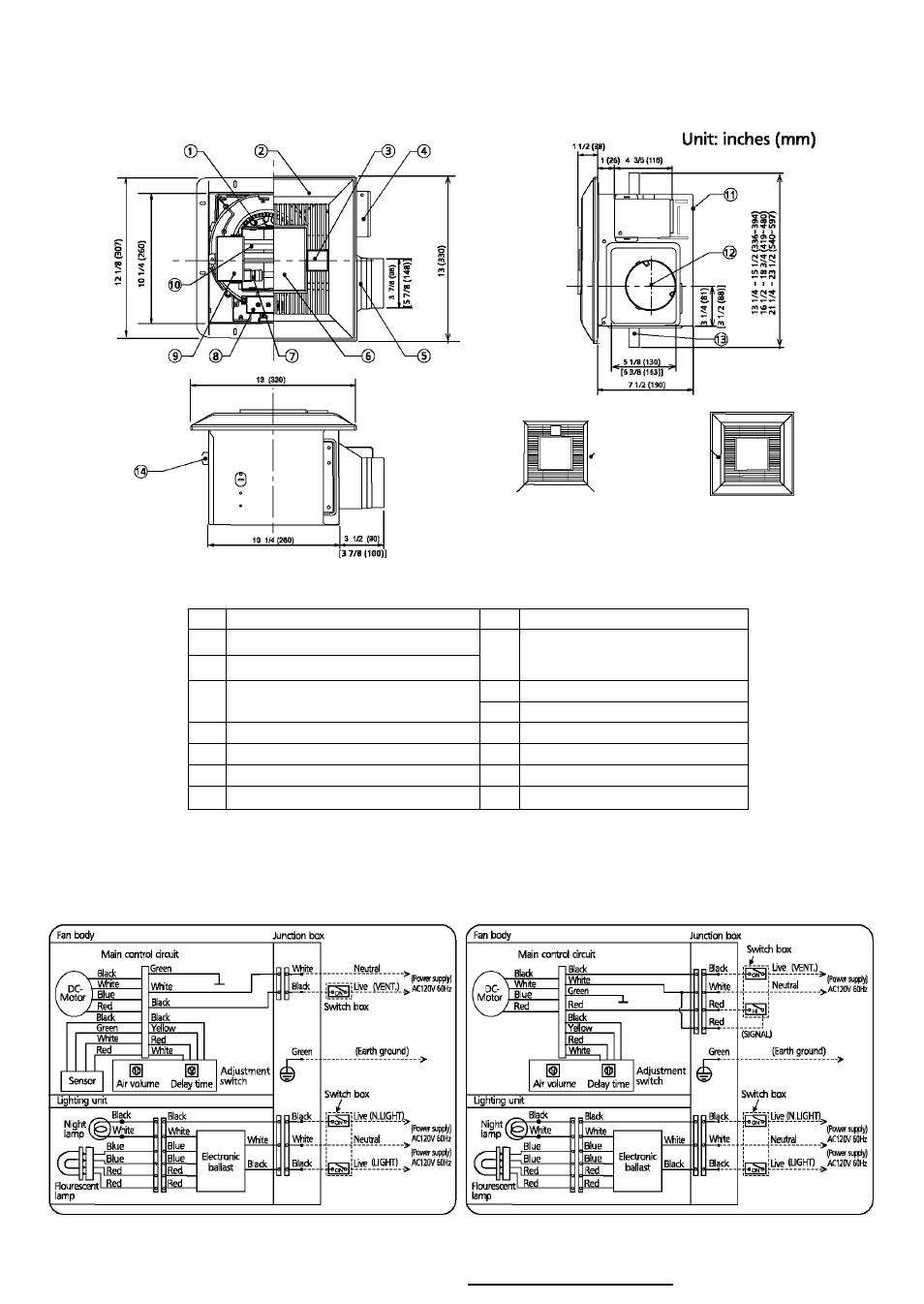

DIMENSIONS
FV-13VKML3
FV-08VKML3
FV-13VKSL3 FV-13VKL3
FV-08VKSL3 FV-08VKL3
(The dimensions in square brackets refer to
13 models which are different from 08 models)
No.
Part name
No.
Part name
1
Blade
8
Switch unit
(FV-13VKML3,FV-08VKML3,
FV-13VKSL3, FV-08VKSL3 only)
2
Grille
3
Sensor unit
(FV-13VKML3, FV-08VKML3 only)
9
Lighting unit
10
Fluorescent lamp
4
Junction box
11
Fan body
5
Adaptor
12
Damper
6
Lens
13
Suspension bracket
7
Night lamp
14
Bracket cover
WIRING DIAGRAM
FV-13VKM L3 FV-08VKM L3
FV-13VKSL3 FV-08VKSL3
