Overview of Cisco Network Modules
Cisco 2600 Series Routers

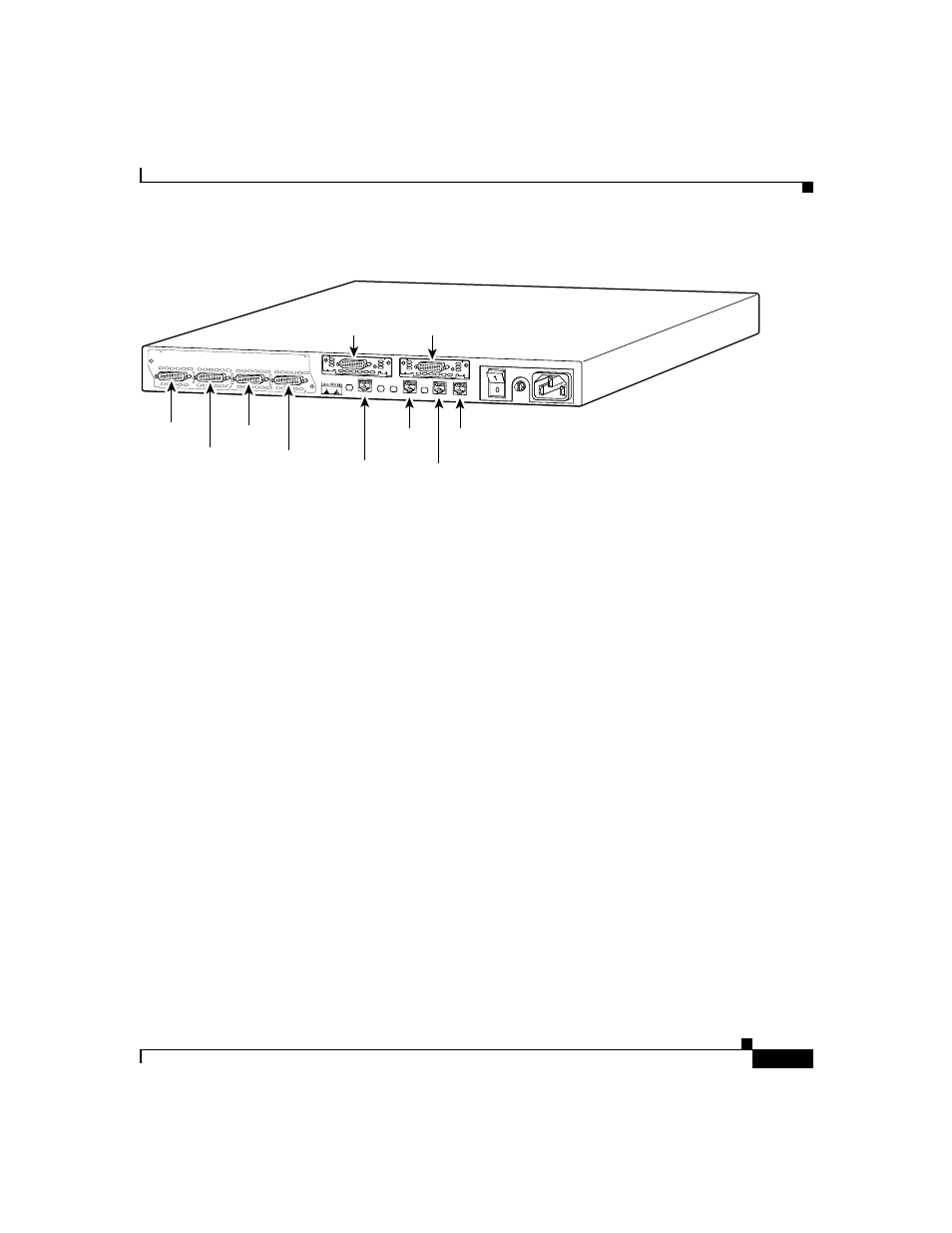

Figure 1-1
Cisco 2600 Series Port Numbers
Figure 1-1 shows the following interface numbers:
•
First Ethernet interface—Ethernet 0/0
•
Token ring interface—Token Ring 0/0
•
Slot W0, serial interface 0—Serial 0/0
•
Slot W1, serial interface 1—Serial 0/1
•
Slot 1, asynchronous/synchronous serial port 0—Serial 1/0
•
Slot 1, asynchronous/synchronous serial port 1—Serial 1/1
•
Slot 1, asynchronous/synchronous serial port 2—Serial 1/2
•
Slot 1, asynchronous/synchronous serial port 3—Serial 1/3
