Holtgreven Above Ground Motor Truck Scale - Manual (Page 6)

Section adjust wiring FT2 Truck scales

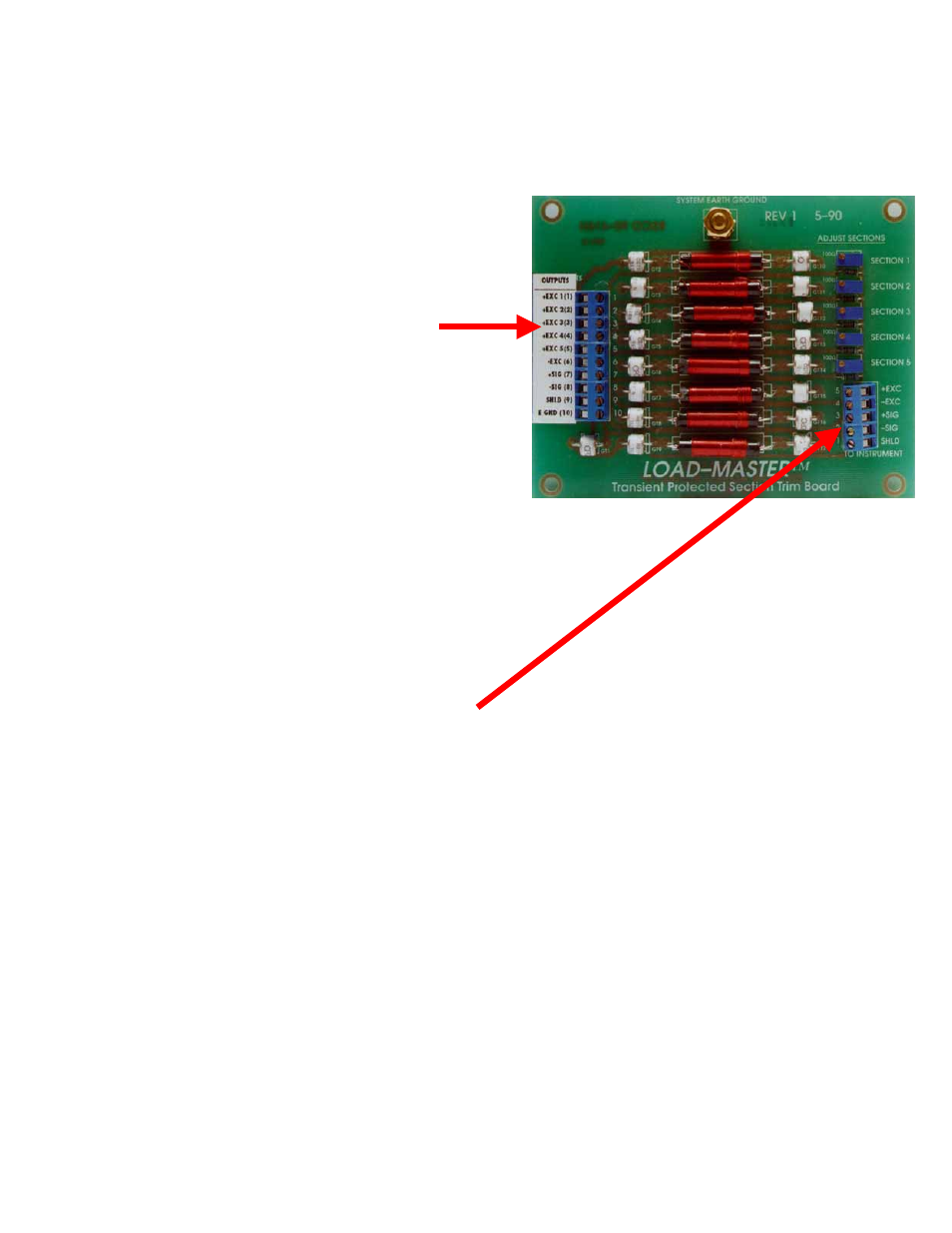

The scale will come with a section adjust box with a board similar to the one pictured below.
Main Cable Beldon Cable #8778
Coming from one of the scale modules.
Black/Green pair use Green for +EXC-1
Black/Yellow pair use Yellow for +EXC-2
Black /Blue pair use Blue for +EXC-3
Green/Black pair use Black for +EXC-4
Skip EXC-5
Yellow/Black pair use Black for –EXC
Black/White pair use White for +Sig
Black/Red pair use Red for -Sig
Cable to digital indicator see indicator wiring for color code.
+Exc to indictor +Exc or output
-Exc to indicator –Exc or output
+Sig to indicator +Sig or input
-Sig to indicator –Sig or input
Ground or Shield to Shield
