Holtgreven Above Ground Motor Truck Scale - Manual (Page 3)

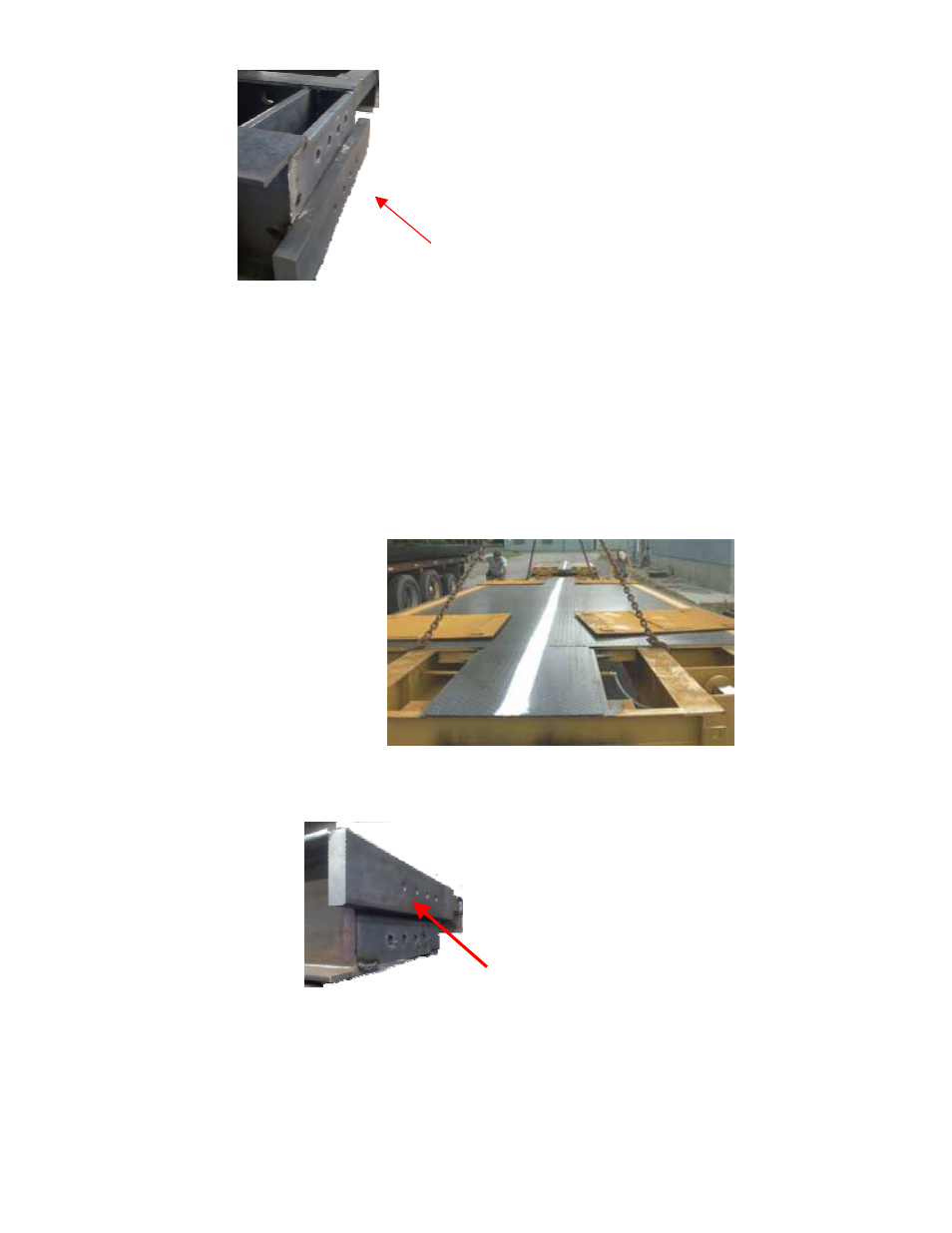

Lower Splice Plate
C.
Place end module in place first. The section will have bumper bolts on
one end and lower splice plates on the other end. It is recommended that
blocking be placed under the main beam areas while setting the bridges.
The scale bridge should be approximately 1” from the end approach. The
bridges can be lifted by hooking a chain into the four corners of the
weighbridge for lifting of bridges. After bridge is set jack up each corner
and lower it onto the load cell mounts. Remove blocking. Using the crane
lift slightly on the bridge to remove the weight and shift bridge to align
with foundation if needed.
D. Install the second bridge into place. The center bridges will have an upper
splice plate on one end and a lower splice plate on the other end. (unless a
six load cell scale it will have bumper bolts on the other end)
Upper splice plate
F: Install splice bolts at the center sections. ¾” x 3 ½” bolts supplied
