Holtgreven Above Ground Motor Truck Scale User Manual
Page 2

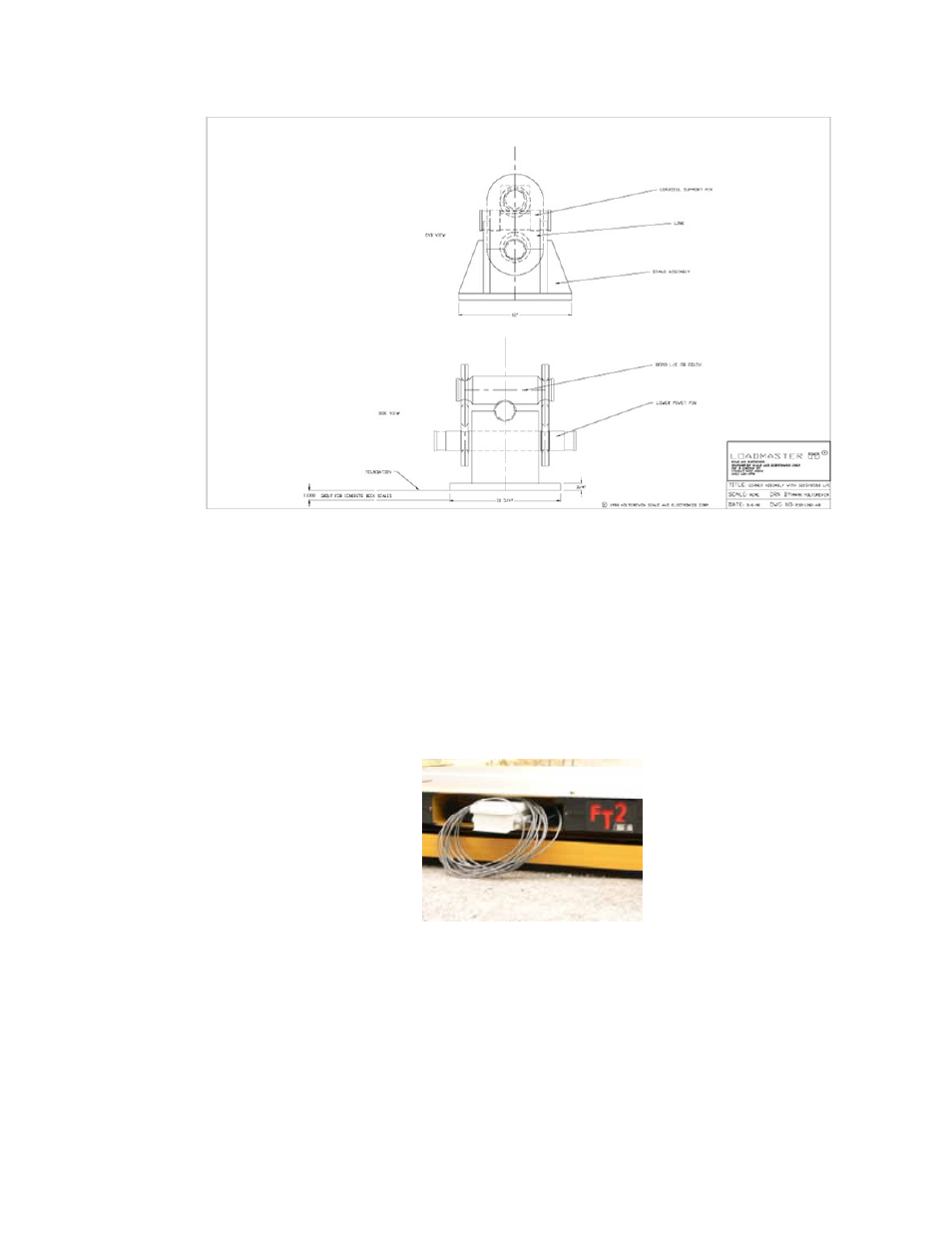

4) Weighbridge installation.
A.
Based on the location of the indicator. Arrange scale so the J-box side of
the scale deck is closest to that area. The welded FT2 sign is next to the J-
box entrance.
B.
Two section scales or longer measure from the center of the foundation to
the centerline of the load cell assemblies on each end. Then measure and
place the remaining load cell assemblies.
